SF387PEYQ8 06 – DOOR & DRAWER

SF387PEYQ8 06 – DOOR & DRAWER

Written by

in

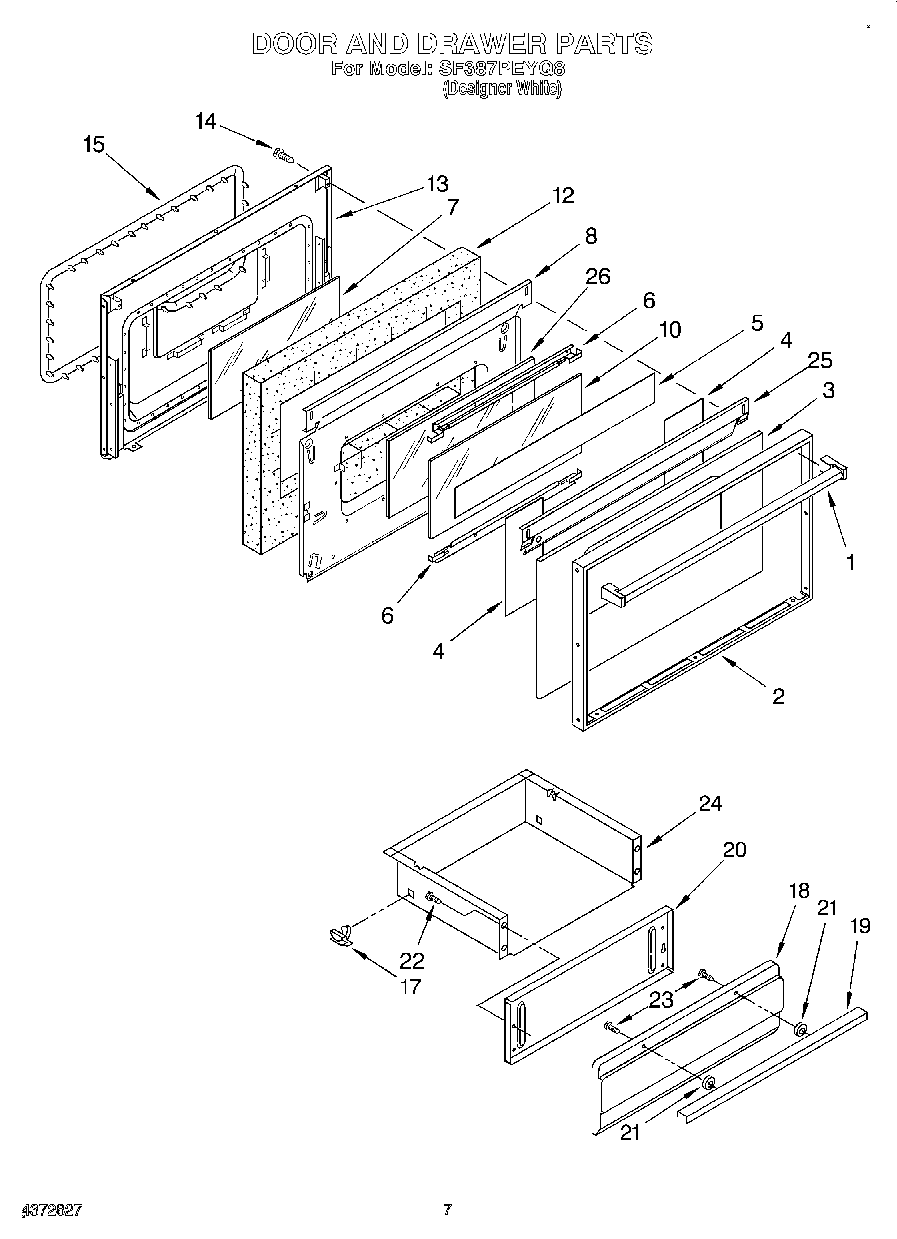

SF387PEYQ8 06 – DOOR & DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Oven Door
3Glass, Door
4Foil, Alum. (2)
5Foil, Alum.
6Bracket, Glass
7Glass, Inner
8Shield, Heat
10Glass, Heat Barrier (2)
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
17Guide, Drawer
18Panel, Drawer (White)
19Handle, Broiler Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Drawer, Utility
25Liner, Oven Door
26Glass, Inner
