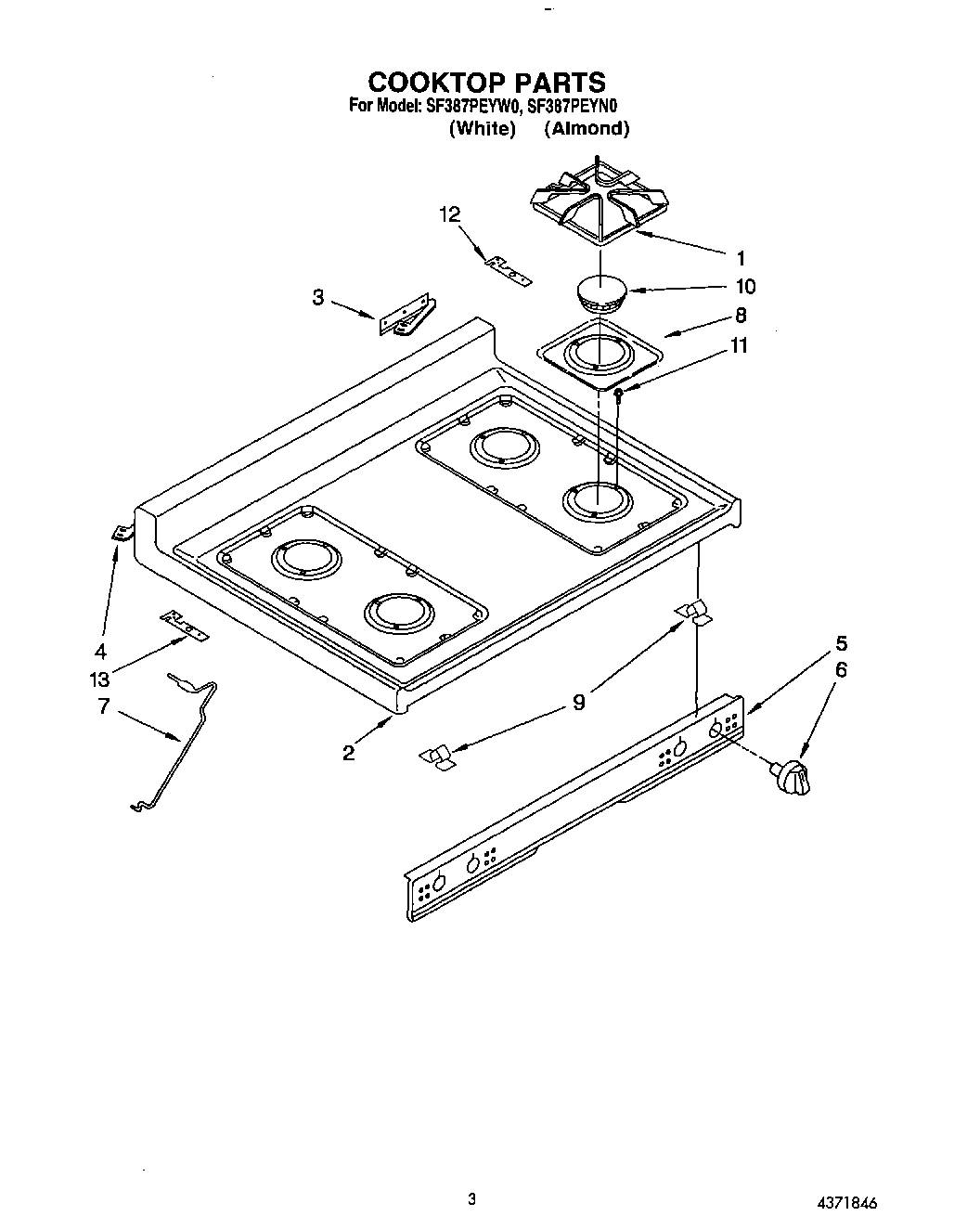

SF387PEYW0 03 – COOKTOP

SF387PEYW0 03 – COOKTOP

Written by

in

SF387PEYW0 03 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
