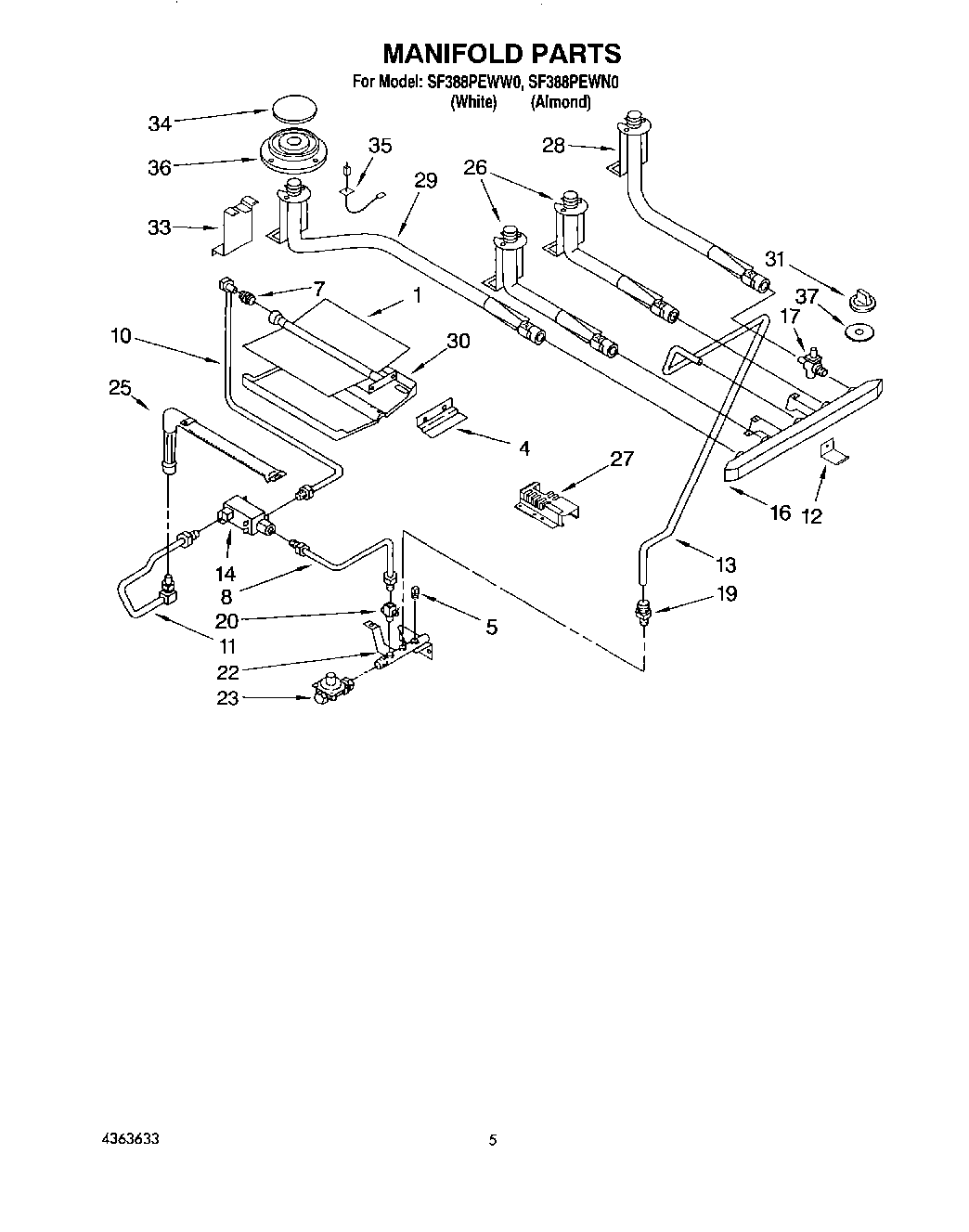

| 1 | Burner, Broiler |
| 1 | Nut, 6-32 (6) |
| 4 | Support, Burner Mounting |
| 4 | Screw |
| 5 | W10295523 Whirlpool Plug |
| 7 | Natural Gas No. 51. |
| 8 | Tubing, (Inlet To Gas Valve) |
| 10 | Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner) |
| 11 | hood & tubing assembly (gas valve to lower oven burner) |
| 11 | Nut, Lock |
| 12 | Bracket, Manifold |
| 13 | tubing (inlet to manifold) |
| 14 | Valve, Dual Gas Valve |
| 16 | Manifold |
| 17 | Valve, Top Burner (R.F. & L.R.) |
| 17 | Valve, Top Burner (L.F. & R.R.) |
| 17 | switch, top burner actuator |
| 17 | Screw, Valve |
| 19 | Fitting |
| 20 | Valve, Shut-Off |
| 22 | Inlet, Gas |
| 23 | Regulator, Pressure |
| 25 | Oven Burner, Lower |
| 26 | Venturi Tube |
| 27 | Shield, Broiler Ignitor |
| 28 | Venturi Tube R.R. |
| 29 | Venturi Tube L.R. |
| 30 | Baffle, Burner |
| 31 | Knob, Top Burner (4) |
| 33 | Bracket |
| 34 | Burner Cap White Model (Large) |
| 34 | Burner Cap (Small) |
| 35 | Electrode (4) |
| 36 | Burner, Cast (Large (2)) |
| 36 | Burner, Cast (Small (2)) |
| 37 | Shield |
