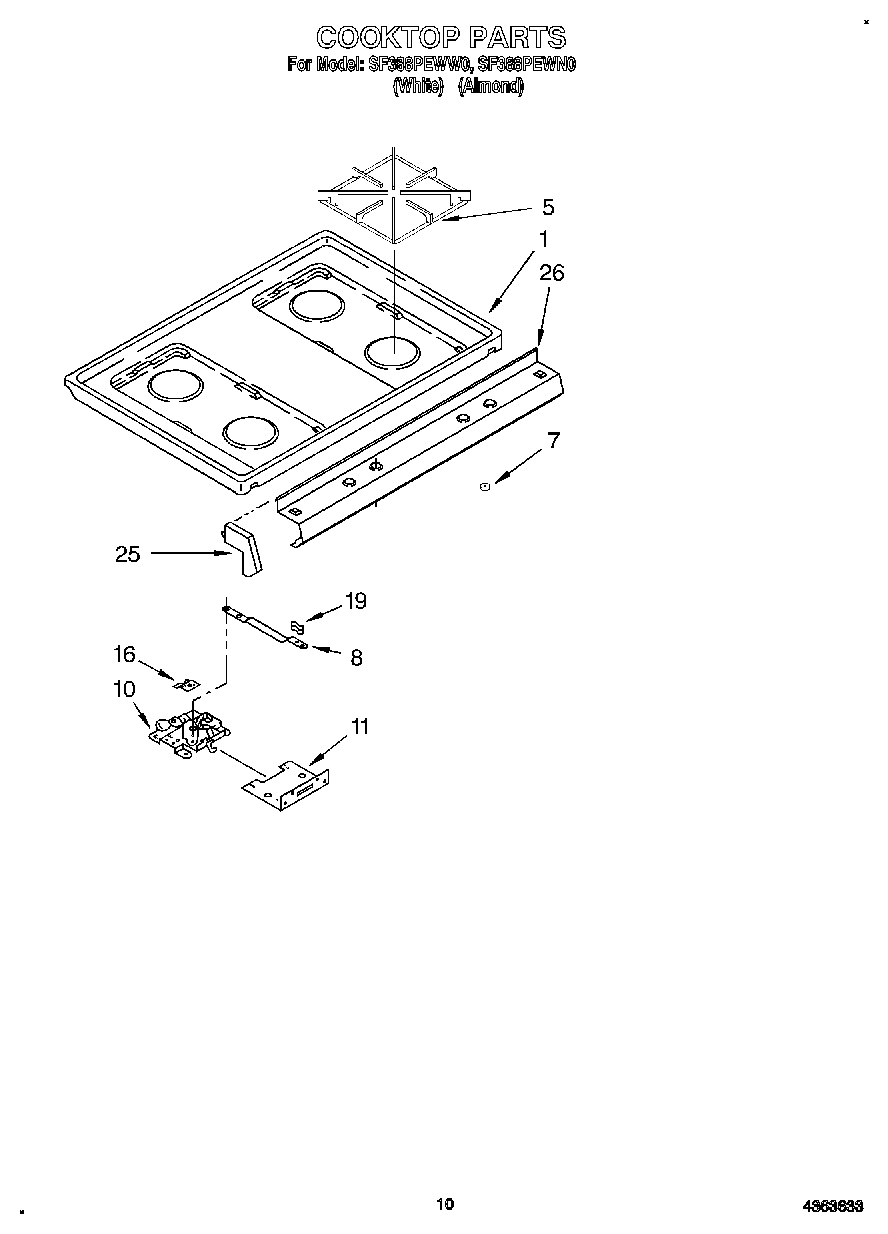

SF388PEWN0 07 – COOKTOP
Written by
in
SF388PEWN0 07 – COOKTOP
Products
Position
Product
1
Top, Main (White)
1
Top, Main (Almond)
5
Grate (4)
7
Spacer, Nylon (4)
8
Latch Arm
10
Latch Assembly
10
Screw
11
Bracket, Latch Mounting
16
Bracket, Switch
16
screw, 4-40 (2)
19
Knob Latch
25
End Cap (Left)
25
End Cap (Right)
26
Panel, Control
←
