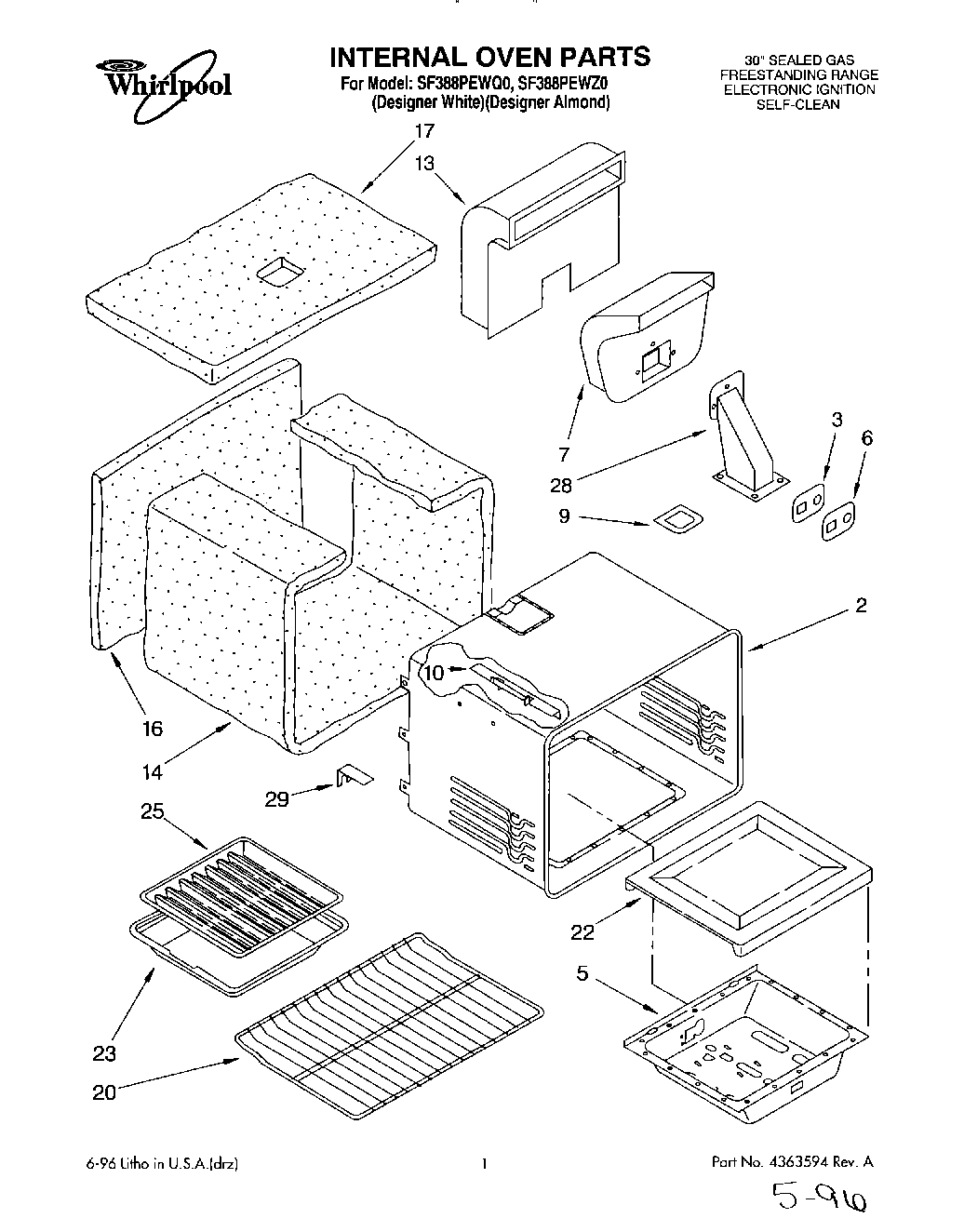

SF388PEWQ0 01 – INTERNAL OVENadmin2025-04-26T13:11:01+00:00SF388PEWQ0 01 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 2 | Oven 30`` Self-Clean |
| 3 | Plate, Burner Broil |
| 5 | Burner, Box, Lower |
| 6 | Gasket, Plate |
| 7 | Flue, Inner |
| 9 | Gasket, Vent |
| 10 | Sheild, Thermostat Bulb |
| 13 | Flue, Dilution |
| 14 | WPW10208653 Whirlpool Insulation |
| 20 | Rack, Oven (2) |
| 22 | Bottom, Oven |
| 23 | Pan, Broiler |
| 25 | Grid, Broiler |
| 28 | Vent |
| 29 | bracket, oven shell |
