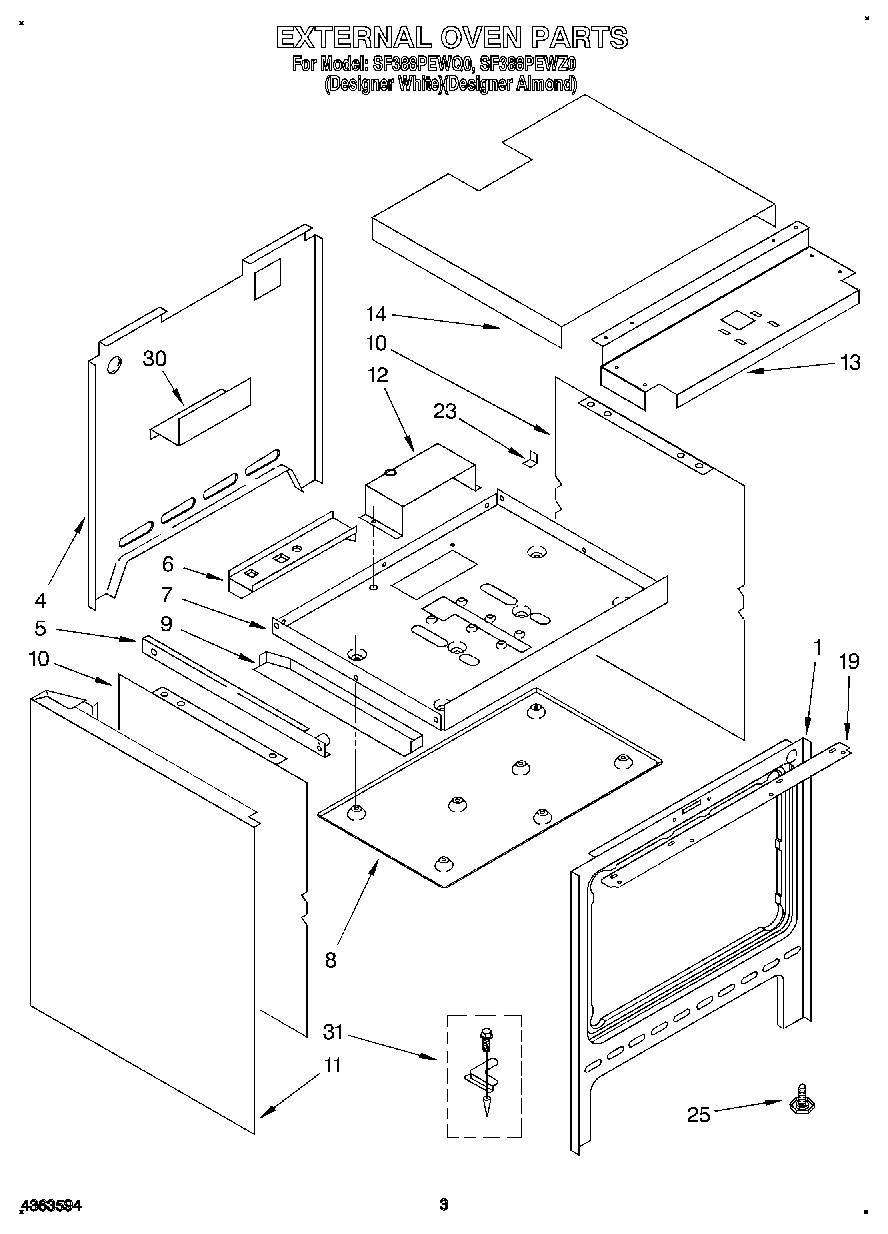

SF388PEWQ0 02 – EXTERNAL OVENadmin2025-04-26T13:10:05+00:00SF388PEWQ0 02 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Frame, Front |
| 4 | Retainer, Rear Insulation |
| 5 | Track, Storage Drawer (Right Side) |
| 5 | Track, Storage Drawer (Left Side) |
| 6 | Shelf, Gas Valve |
| 6 | Nut, 6-32 (6) |
| 6 | WP486754 Whirlpool Compactor Screw |
| 7 | WP965173 Whirlpool Dishwasher Screw |
| 7 | retainer, bottom insulation |
| 8 | Heat Shield, Storage Drawer |
| 9 | Brace, Bottom (L.H.) |
| 9 | Brace, Bottom (R.H.) |
| 10 | Retainer, Insulation (2) |
| 11 | Panel, End (Almond) |
| 11 | Panel, End (White) |
| 12 | Retainer, Ignitor |
| 13 | Retainer, Top Front Insulation |
| 14 | Retainer, Top Back |
| 19 | Frame, Filler Front |
| 23 | WP488130 Whirlpool Air Conditioner Nut |
| 23 | Screw No.8 x 1/2 |
| 23 | Bracket, Gas Valve (2) |
| 25 | Leg, Leveling (4) |
| 30 | Cover, Electrical |
| 31 | Anti Tip Kit |
