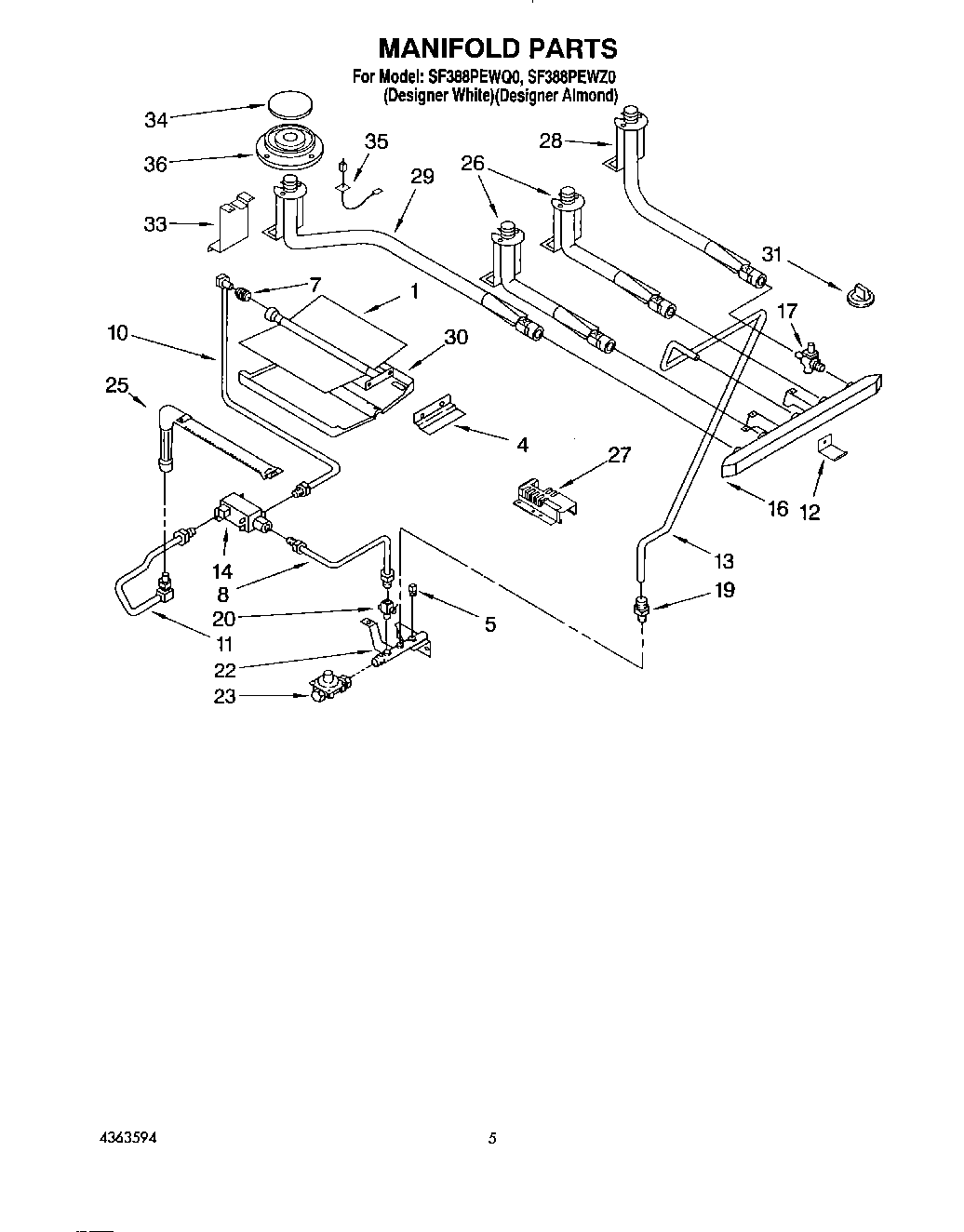

SF388PEWQ0 03 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
4	Screw
4	Support, Burner Mounting
5	W10295523 Whirlpool Plug
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Nut, Lock
11	hood & tubing assembly (gas valve to lower oven burner)
12	Bracket, Manifold
13	tubing (inlet to manifold)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (L.F. & R.R.)
17	switch, top burner actuator
17	Screw, Valve
17	Valve, Top Burner (R.F. & L.R.)
19	Fitting
20	Valve, Shut-Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Venturi Tube
27	Shield, Broiler Ignitor
28	Venturi Tube R.R.
29	Venturi Tube L.R.
30	Baffle, Burner
31	Knob, Top Burner (4) (White)
31	Knob, Top Burner (4) (Almond)
33	Bracket
34	Burner Cap (Small)
34	Burner Cap White Model (Large)
34	Burner Cap White Model (Large Alm
34	Burner Cap, White Model (Small)
35	Electrode (4)
36	Burner, Cast (Large (2))
36	Burner, Cast (Small (2))
