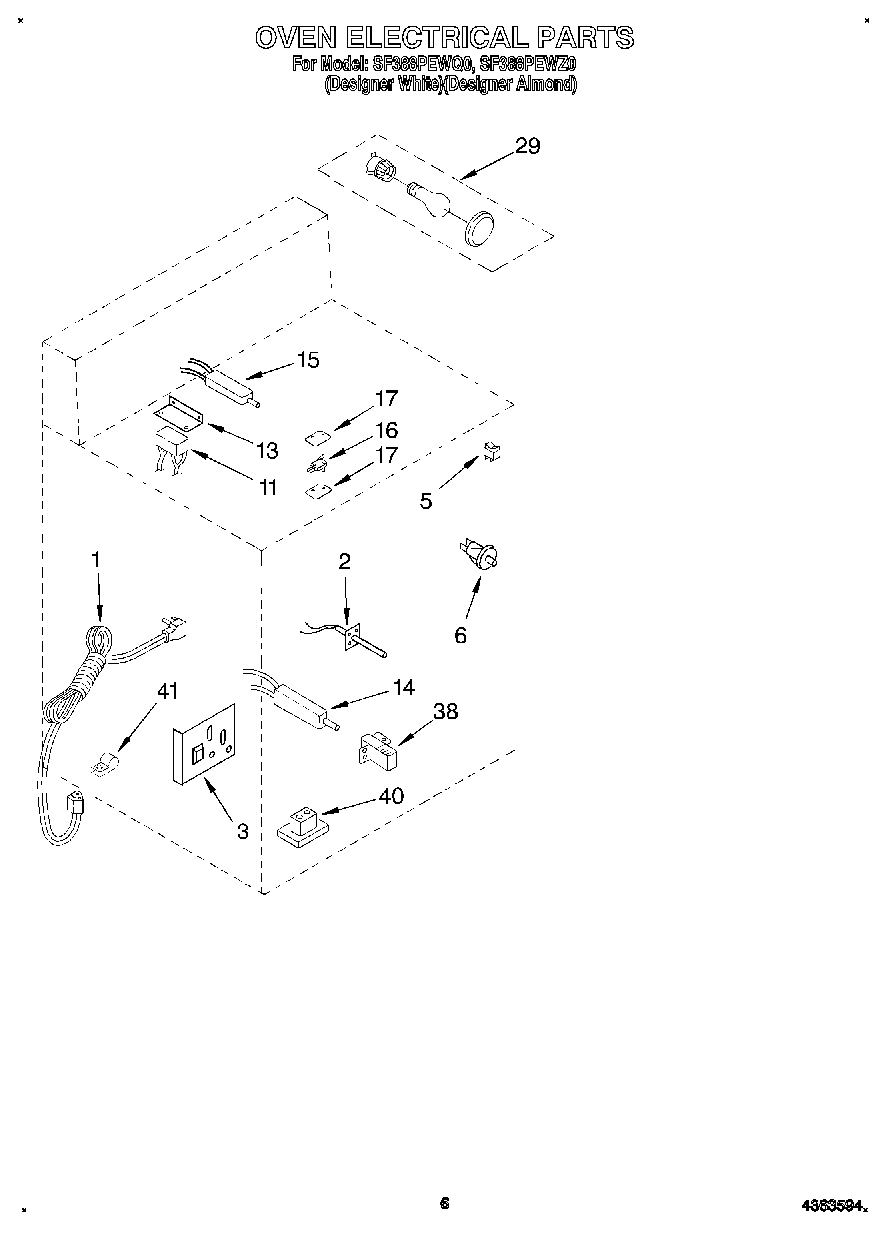

SF388PEWQ0 04 – OVEN ELECTRICAL, LITERATURE

SF388PEWQ0 04 – OVEN ELECTRICAL, LITERATURE

Written by

in

SF388PEWQ0 04 – OVEN ELECTRICAL, LITERATURE

Products

PositionProduct
Guide, Use & Care
Diagram, Wiring
Instructions, Installation
1Cord, Power
2screw, 6-32 x 1/4 (2)
2WPY0314907 Whirlpool Sensor
3Circuit Board
3Support, Circuit Board (4)
5Switch, Rocker (Almond)
5Switch, Rocker (White)
6Switch, Oven Door
11Spark Module
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15Ignitor, Broil
16Switch, Oven Door Latch
17Insulator, Switch
17screw, 4-40 x 5/8 (2)
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
40Plug, Ignitor Wire
41Clamp
41WP965173 Whirlpool Dishwasher Screw
