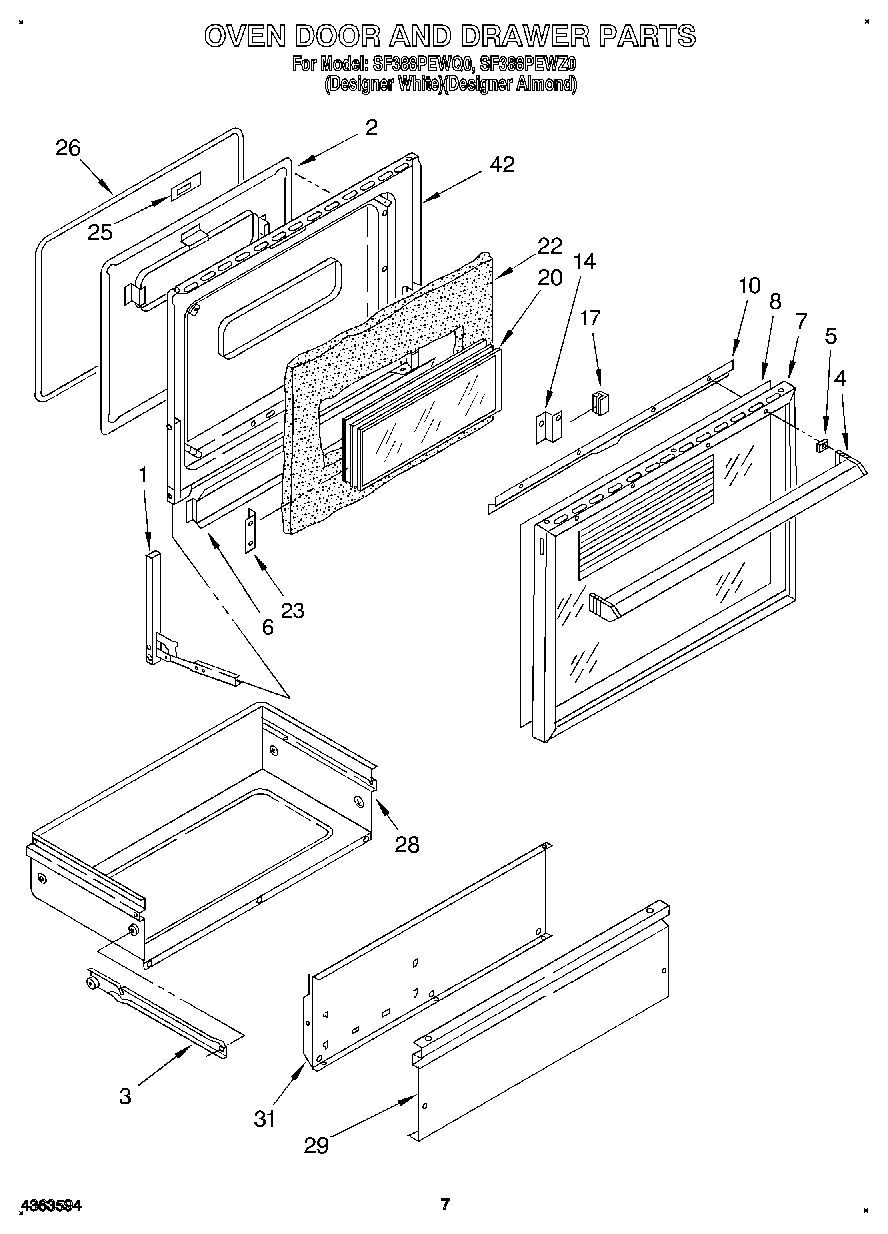

SF388PEWQ0 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (L.H.)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	Pad, Oven Door
2	Runner, Drawer (Screw, 8-18 x 3/8 (4))
2	Pin-Hinge (2)
2	Screw
3	Runner, Drawer (Right Hand)
3	Runner, Drawer (Left Hand)
4	Handle, Oven Door (White)
4	Handle, Oven Door ((Almond Model))
5	Spacer, Handle (4)
6	Baffle, Heat
7	Frame (Almond)
7	Frame, Oven Door
8	Glass, Outer Door (White)
8	Glass, Outer Door (Almond)
10	Baffle, Air
14	bracket, glass support (4)
17	Bumper, Window (2)
20	Window Assembly
22	Insulation, Door
23	Retainer, Window (4)
25	Plate, Latch
26	gasket assembly
28	Drawer, Storage
29	Panel, Drawer (White)
29	Panel, Drawer (Almond)
31	Liner, Drawer Panel
42	Retainer, Insulation
42	Bumper, Rubber
