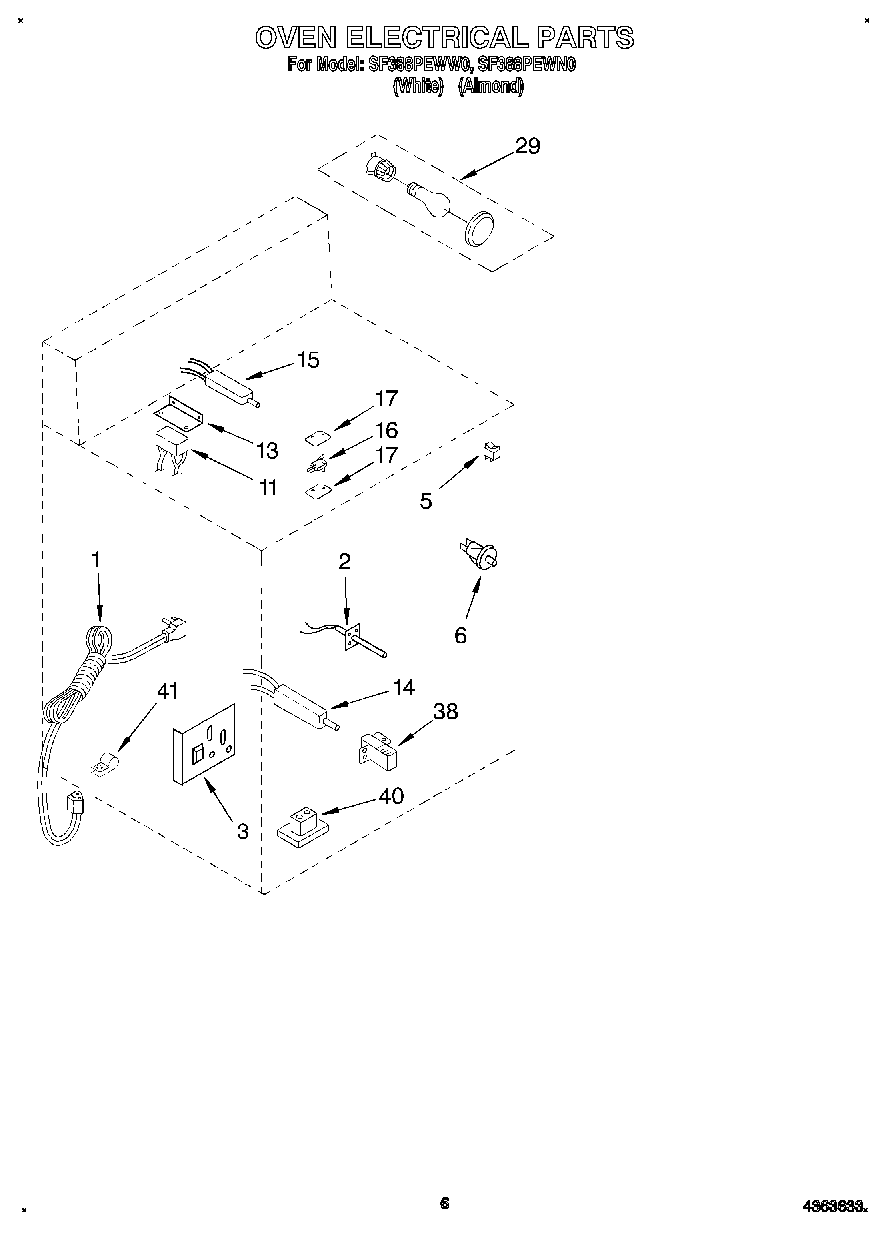

SF388PEWW0 04 – OVEN ELECTRICAL, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	Diagram, Wiring
1	Cord, Power
2	screw, 6-32 x 1/4 (2)
2	WPY0314907 Whirlpool Sensor
3	Support, Circuit Board (4)
3	Circuit Board
5	Switch, Rocker
6	Switch, Oven Door
11	Spark Module
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	Ignitor, Broil
16	Switch, Oven Door Latch
17	Insulator, Switch
17	screw, 4-40 x 5/8 (2)
29	WP74011278 Whirlpool Light
38	Bracket, Bake Ignitor
40	Plug, Ignitor Wire
41	Clamp
41	WP965173 Whirlpool Dishwasher Screw
