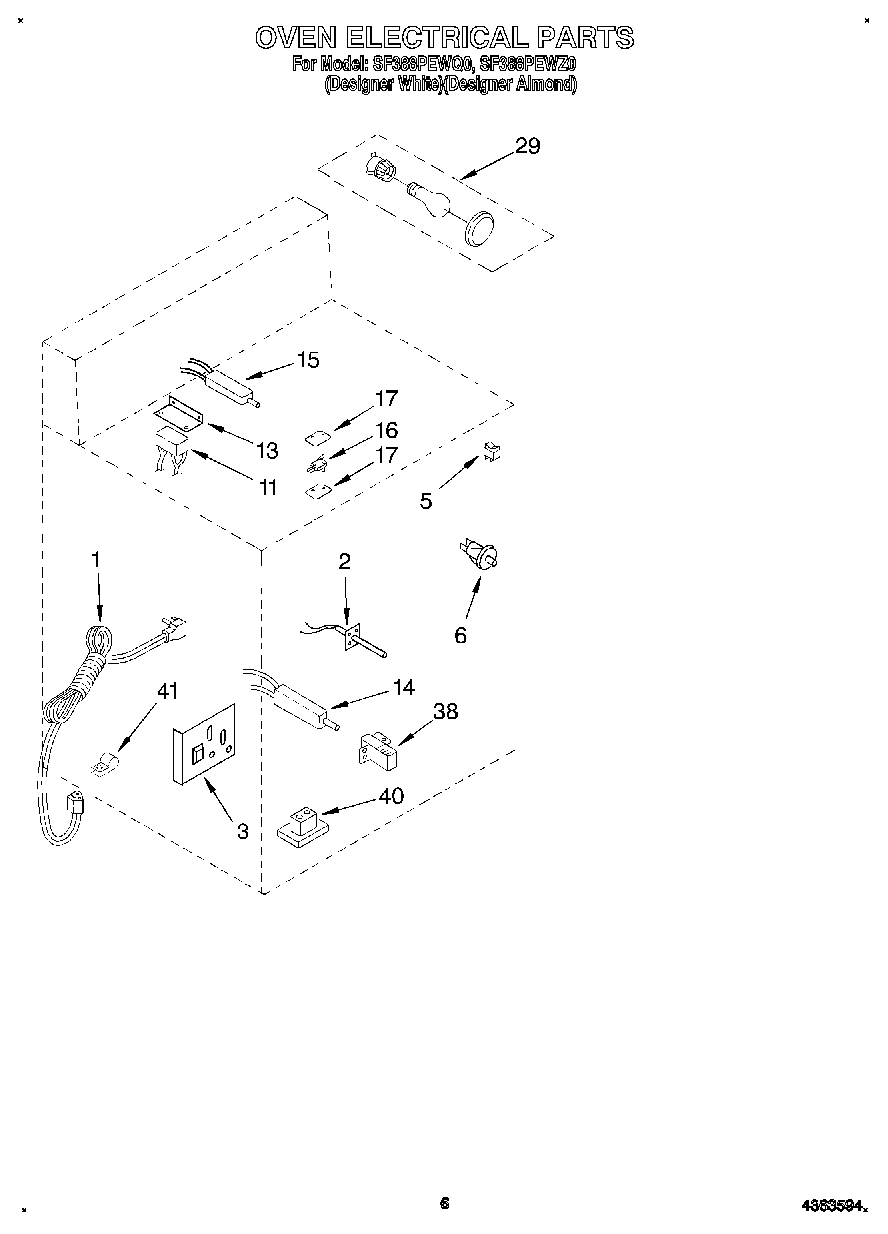

SF388PEWZ0 04 – OVEN ELECTRICAL, LITERATUREadmin2025-04-26T13:10:05+00:00SF388PEWZ0 04 – OVEN ELECTRICAL, LITERATURE
Products
| Position | Product |
|---|
| Guide, Use & Care |
| Diagram, Wiring |
| Instructions, Installation |
| 1 | Cord, Power |
| 2 | screw, 6-32 x 1/4 (2) |
| 2 | WPY0314907 Whirlpool Sensor |
| 3 | Circuit Board |
| 3 | Support, Circuit Board (4) |
| 5 | Switch, Rocker (Almond) |
| 5 | Switch, Rocker (White) |
| 6 | Switch, Oven Door |
| 11 | Spark Module |
| 13 | Bracket, Spark Module |
| 14 | 786324 Whirlpool Flat Igniter |
| 15 | Ignitor, Broil |
| 16 | Switch, Oven Door Latch |
| 17 | Insulator, Switch |
| 17 | screw, 4-40 x 5/8 (2) |
| 29 | WP74011278 Whirlpool Light |
| 38 | Bracket, Bake Ignitor |
| 40 | Plug, Ignitor Wire |
| 41 | Clamp |
| 41 | WP965173 Whirlpool Dishwasher Screw |
