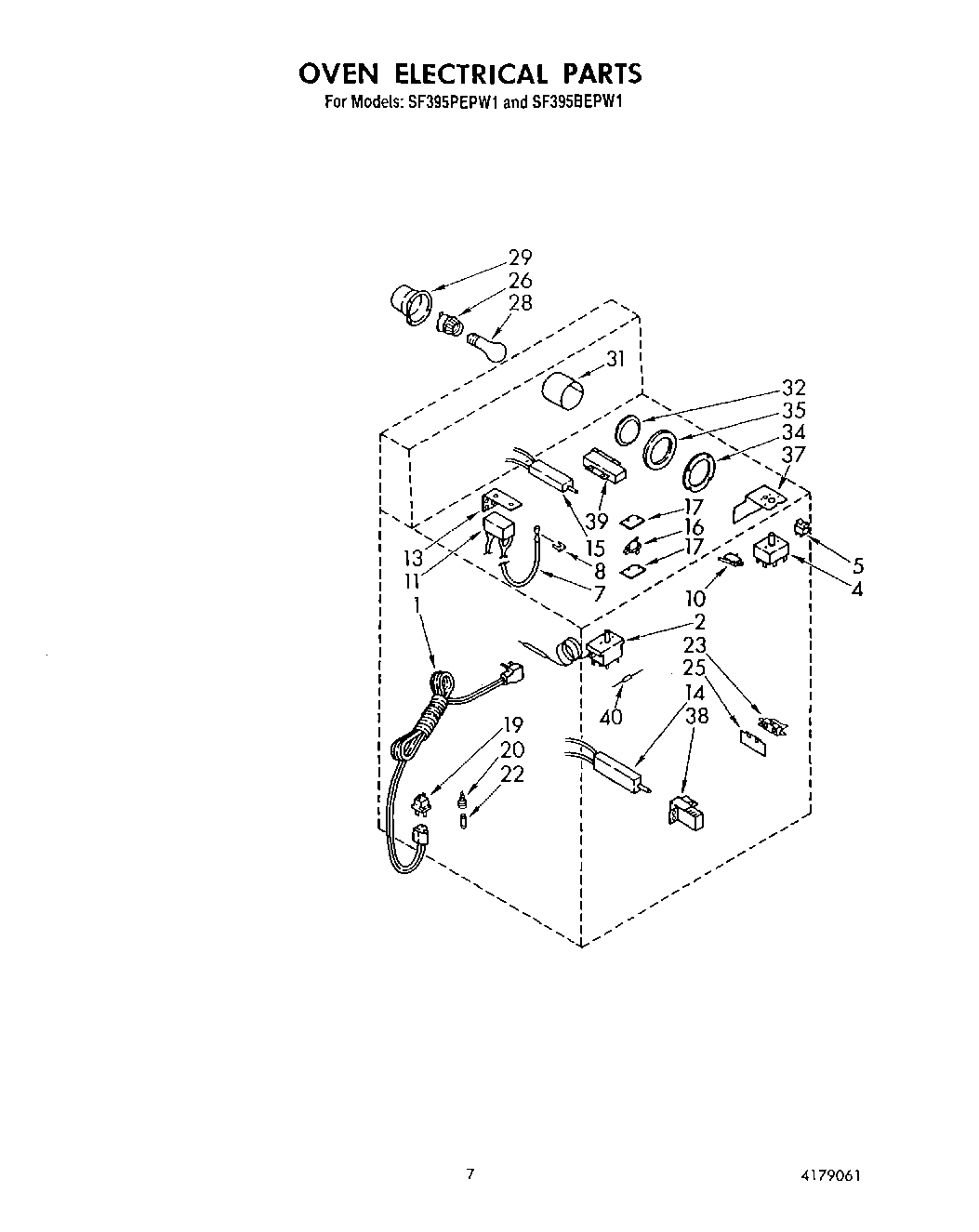

SF395BEPW1 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
2	screw, 6-32 x 1/4 (2)
4	Switch, Selector
5	Switch, Rocker
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Nut
10	Screw, 4-40 X 5/8 (2)
10	Switch, Burner
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
20	Holder, Fuse
22	Fuse, 5 AMP
23	Switch, Aux. Light
25	Insulation, Door Switch (2)
26	Socket, Oven Lamp
28	RANGE ONLY 40W 120V APPL BULB
29	Housing, Light
31	Retainer, Insulation
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
37	Insulator, Control (2)
38	Bracket, Bake Ignitor
39	Bracket, Ignitor
40	Resistor, 10 K
