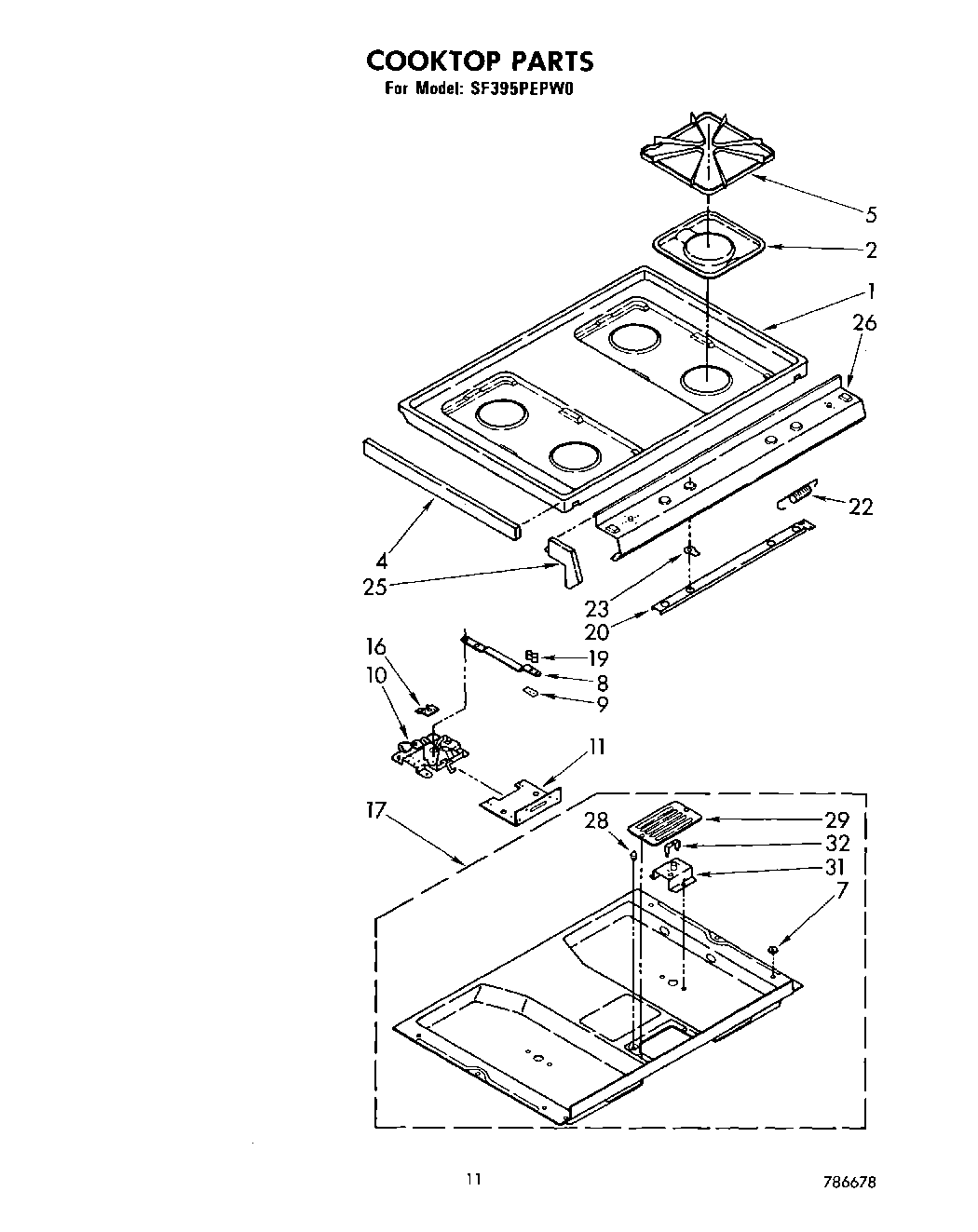

SF395PEPW0 09 – COOKTOP

Products

Position	Product
1	top, main (almond)
1	top, main (white)
1	top, main (toast)
1	Top, Main (Platinum)
2	WP786333 Whirlpool Drip Bowl
4	Trim, Main Top (Right Side)
4	Trim, Main Top (Left Side)
5	Grate, Top Burner
7	Spacer, Nylon (4)
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Mounting Latch
16	Bracket, Switch
16	screw, 4-40 (2)
17	Burner Box
19	Knob, Latch Handle
20	Actuator, Spark Ignitor
22	Spring
23	Cam (4)
25	End Cap (Left)
25	End Cap (Right)
26	Panel, Control
28	LP Gas No. 58
29	Plate, Cover
31	Bracket, Top (2)
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket, Electrode (2)
