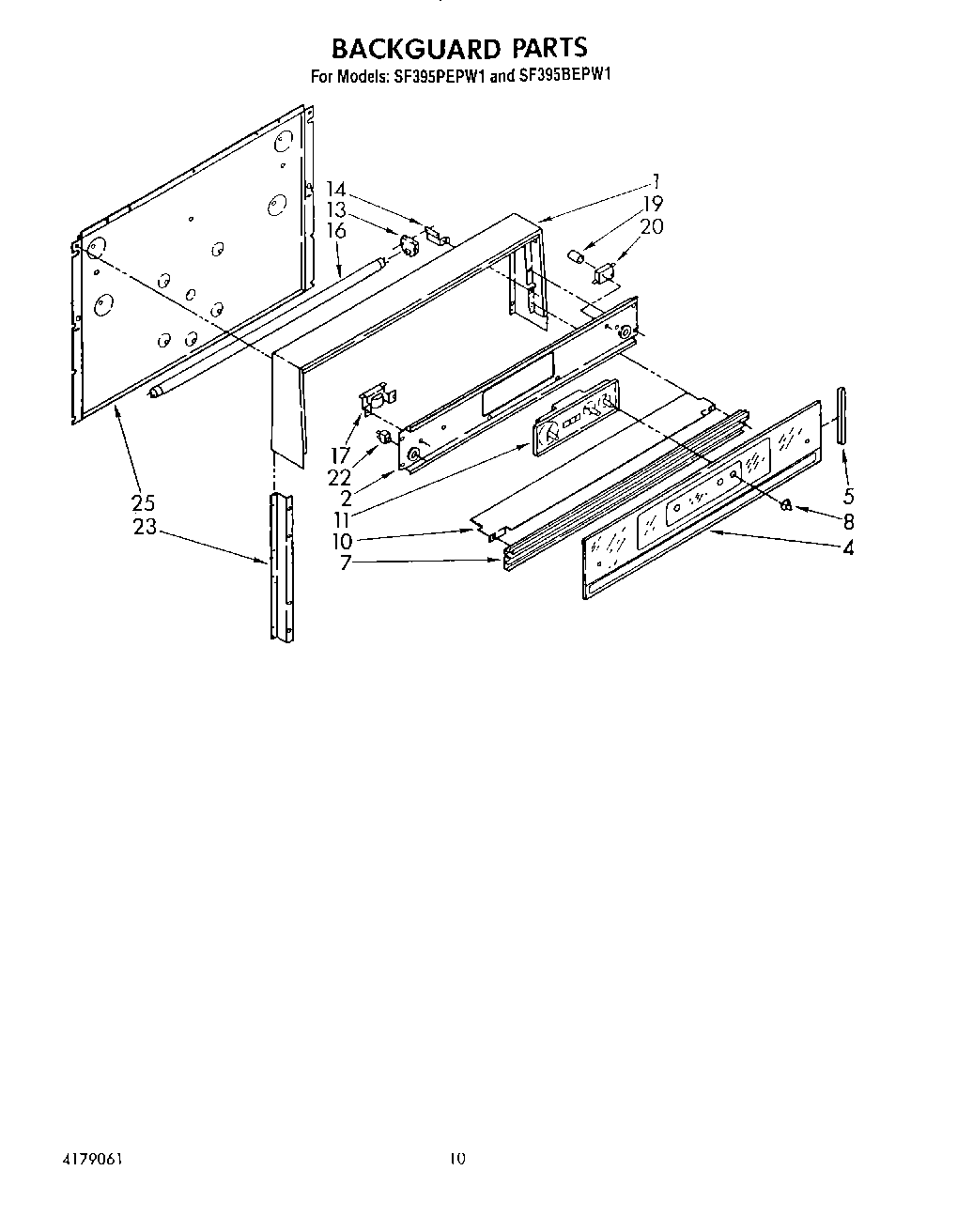

SF395PEPW1 07 – BACKGUARD, LIT/OPTIONAL

SF395PEPW1 07 – BACKGUARD, LIT/OPTIONAL

Written by

in

SF395PEPW1 07 – BACKGUARD, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Cooking
Instructions, Installation
Guide, Use & Care (Range)
1WP965173 Whirlpool Dishwasher Screw
1Frame
1Screw (4)
1screw (4)
1Screw, Handle (4)
1Screw, 8 X 3/8 (14)
2Panel, Control Mounting
4Glass, Control Panel
5Channel, Glass (2)
7Trim, Lower
8Knob, Clock
10Shield, Heat
11Clock
13Lampholder Fluorescent
14Support, Lamp Socket (Right Side)
14Support, Lamp Socket (Left Side)
16Lamp, Fluorescent
17Ballast
19Starter, Fluorescent
20Socket, Starter
22Indicator Light
23Support, Control Panel (2)
25Panel, Cover
