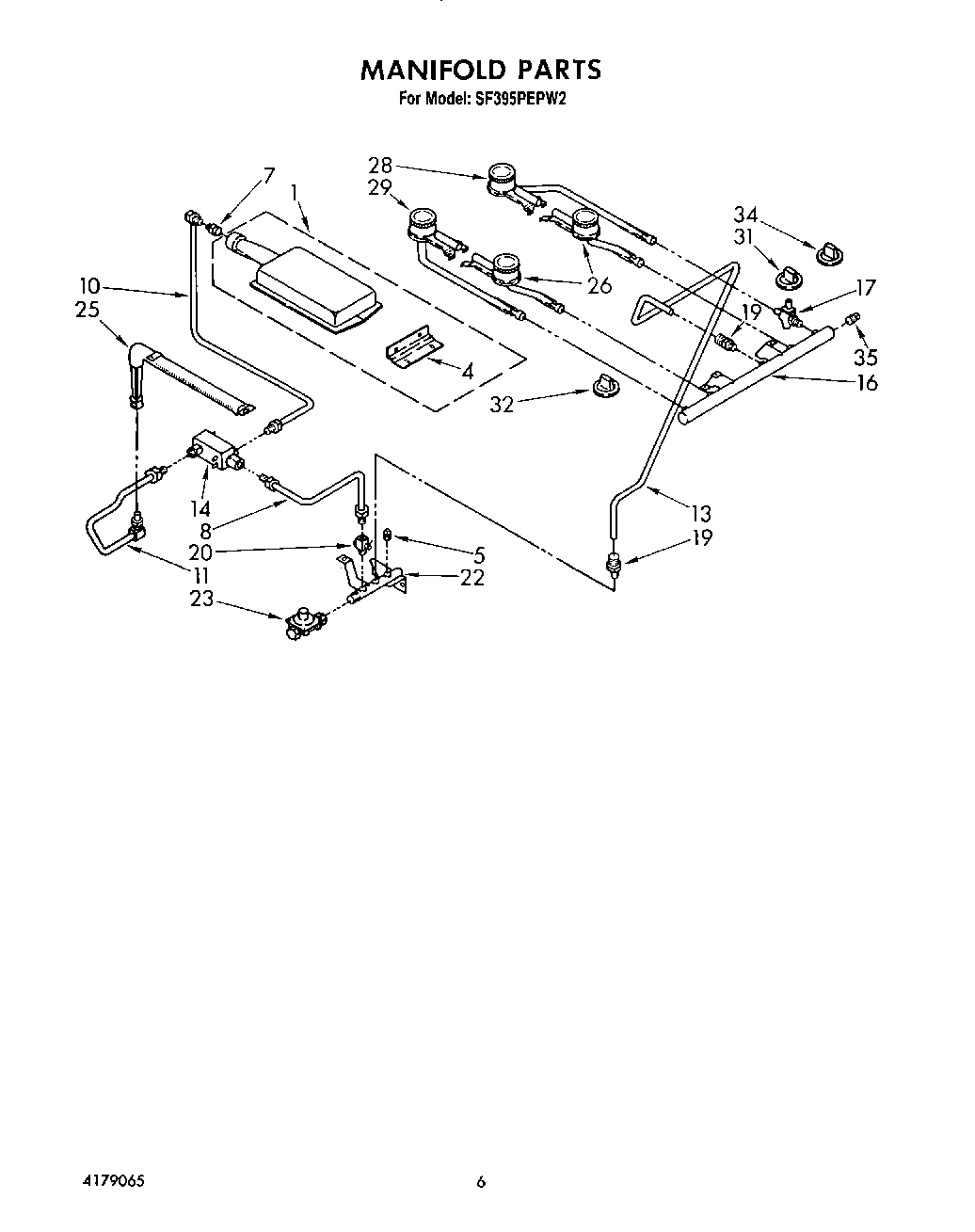

SF395PEPW2 04 – MANIFOLD

Products

Position	Product
1	Burner, Ultra Ray Broiler
1	Nut, 6-32 (6)
4	Bracket, Burner Mounting
5	W10295523 Whirlpool Plug
7	Orifice (No.50 Nat. Gas)
7	LP Gas No. 58
8	Tubing (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Nut, Lock
11	Hood & Tubing Assembly (Gas Valve To Lower Oven Burner)
13	Tubing (Inlet To Manifold)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (Tri-Set)
19	Fitting
20	Valve, Shut-Off
22	Inlet
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
28	Top Burner, R.R.
29	Top Burner, L.R.
31	Knob, Top Burner (4)
32	Knob, Oven Control
34	Knob, Selector
35	Pipe Plug, 3/8 NPT
