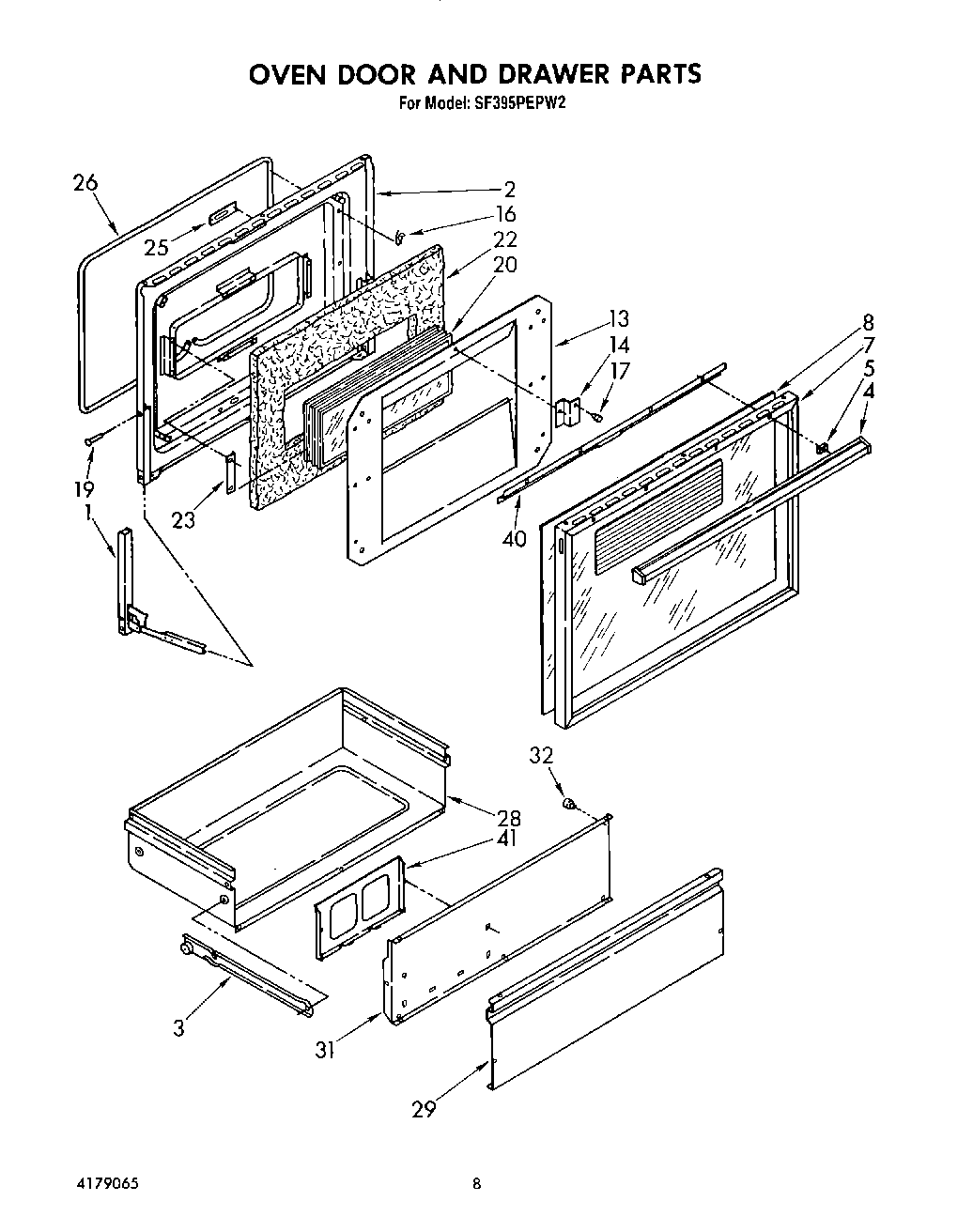

SF395PEPW2 06 – OVEN DOOR AND DRAWER
Written by
in
SF395PEPW2 06 – OVEN DOOR AND DRAWER
Products
Position
Product
1
Hinge, Oven Door (L.H.)
1
Hinge, Oven Door (R.H.)
2
Liner, Oven Door
2
Screw, 8-32 X 5/8 (4)
2
WP965173 Whirlpool Dishwasher Screw
2
WP308685 Whirlpool Microwave Screw
2
WP488130 Whirlpool Air Conditioner Nut
3
runner (R.H.)
3
Runner (L.H.)
4
Handle
5
Spacer, Handle (2)
7
Frame
8
Panel, Black Glass
13
Retainer, Insulation
14
bracket, glass support (4)
16
Clip, Speed (14)
17
Bumper Window (5)
19
Pin, Hinge (2)
20
Window Assembly
22
WPW10208653 Whirlpool Insulation
23
Retainer, Window (4)
25
Plate, Latch
26
Gasket Assembly
28
Wrapper, Storage Drawer
29
panel, drawer (toast)
29
Panel, Drawer (Platinum)
29
Panel, Drawer (White)
29
Panel, Drawer (Almond)
31
Liner, Door Panel
32
Bumper, Rubber
40
Baffle, Air
41
Rack, Literature
←
