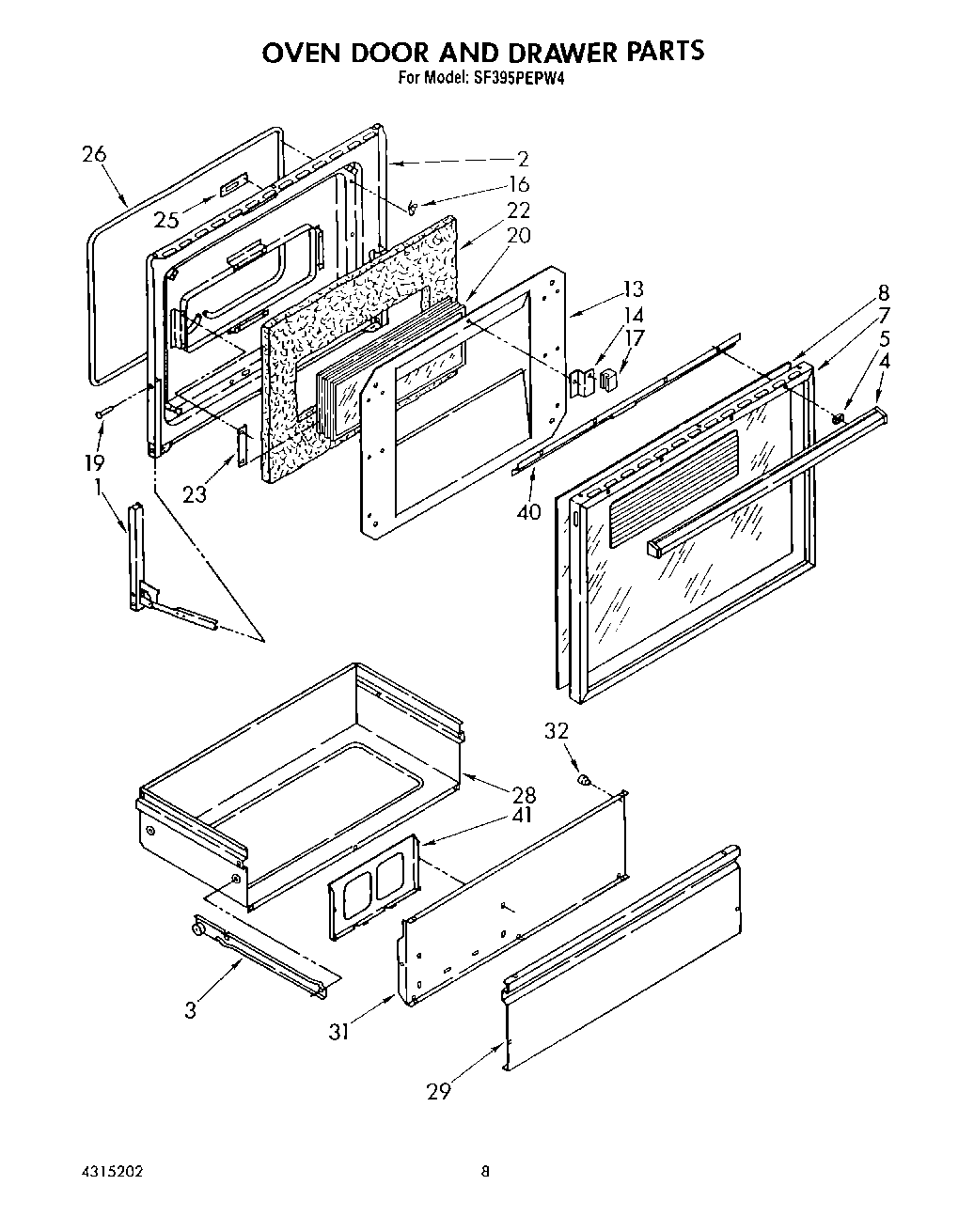

SF395PEPW4 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (L.H.)
1	Hinge, Oven Door (R.H.)
2	Liner, Oven Door
2	Screw, 8-32 X 5/8 (4)
2	WP965173 Whirlpool Dishwasher Screw
2	WP308685 Whirlpool Microwave Screw
2	WP488130 Whirlpool Air Conditioner Nut
3	Runner (L.H.)
3	runner (R.H.)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper, Window (2)
19	Pin, Hinge (2)
20	Window Assembly
22	WPW10208653 Whirlpool Insulation
23	Retainer, Window (4)
25	Plate, Latch
26	Gasket Assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (White)
29	panel, drawer (toast)
29	Panel, Drawer (Platinum)
29	Panel, Drawer (Almond)
31	Liner, Door Panel
32	Bumper, Rubber
40	Baffle, Air
41	Rack, Literature
