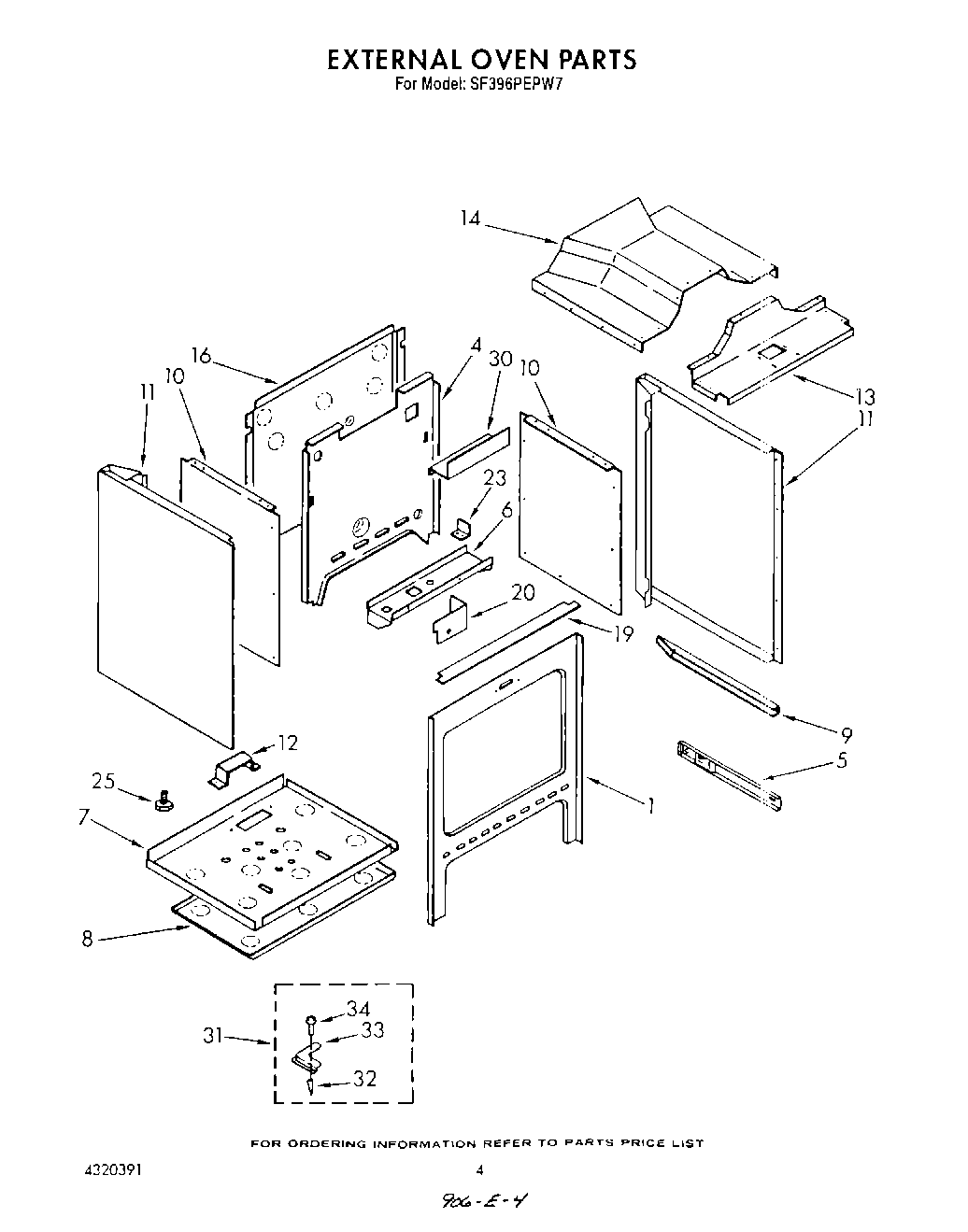

SF395PEPW7 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
4	retainer, insulation
5	track, storage drawer (right side)
5	track, storage drawer (left side)
6	WP486754 Whirlpool Compactor Screw
6	shelf, gas valve
6	Nut, 6-32 (6)
7	retainer, bottom insulation
8	Heat Shield,
9	Brace, Bottom (R.H.)
9	brace, bottom (l.h.)
10	Retainer, Insulation (2)
11	White
11	Almond
12	Liner, Oven Side (2)
13	Front Insulation
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	nut, 6-32
16	bushing, snap
16	Panel, Rear
19	Frame, Filler Front
20	Plate, Cover
23	Bracket, Gas Valve (2)
23	WP965173 Whirlpool Dishwasher Screw
23	WP488130 Whirlpool Air Conditioner Nut
25	leg, leveling (4)
28	Side Frame (2)
28	Switch, Oven Door
30	cover, electrical
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
