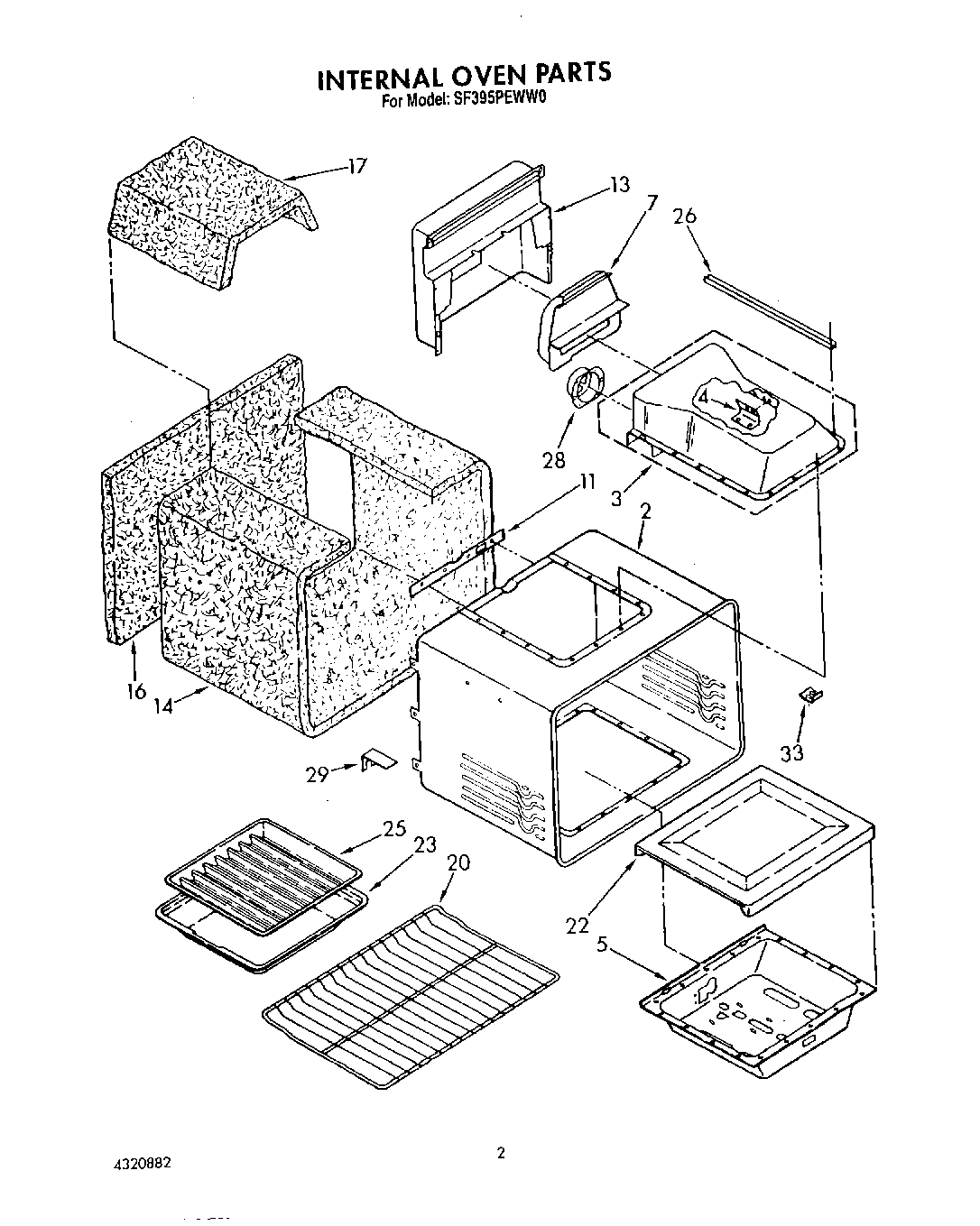

SF395PEWW0 02 – INTERNAL OVENadmin2025-04-26T13:09:43+00:00SF395PEWW0 02 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 2 | oven 30`` self-clean |
| 3 | Chamber, Broiler Burner |
| 4 | Bracket, Ignitor |
| 4 | Screw (3) |
| 5 | Burner, Box, Lower |
| 7 | Flue, Inner |
| 11 | Gasket, Oven Back |
| 13 | SWITCH & CABLE MOUNTING ASSY |
| 14 | WPW10208653 Whirlpool Insulation |
| 20 | Rack, Oven (2) |
| 22 | Bottom, Oven |
| 23 | Pan, Broiler |
| 25 | Grid, Broiler |
| 26 | Channel, Broiler Burner |
| 28 | Duct, Cup |
| 29 | bracket, oven shell |
| 33 | cover, chip |
