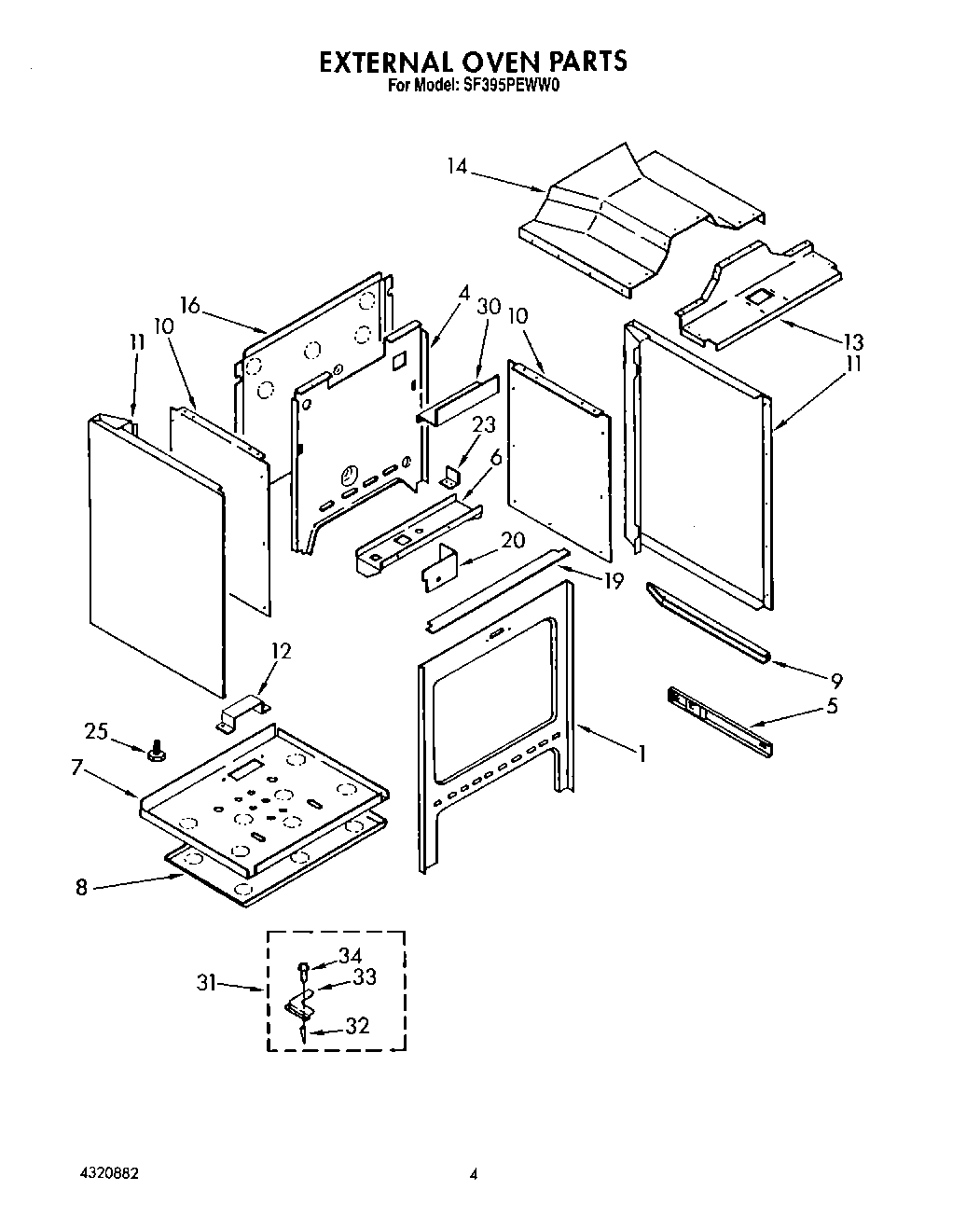

SF395PEWW0 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
4	retainer, insulation
5	track, storage drawer (left side)
5	track, storage drawer (right side)
6	shelf, gas valve
6	Nut, 6-32 (6)
6	WP486754 Whirlpool Compactor Screw
7	retainer, bottom insulation
8	Heat Shield,
9	brace, bottom (l.h.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	White
11	Trim, Side Panel (2)
11	Almond
12	Liner, Oven Side (2)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	Panel, Rear
16	nut, 6-32
16	bushing, snap
19	Frame, Filler Front
20	Plate, Cover
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
23	Bracket, Gas Valve (2)
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
