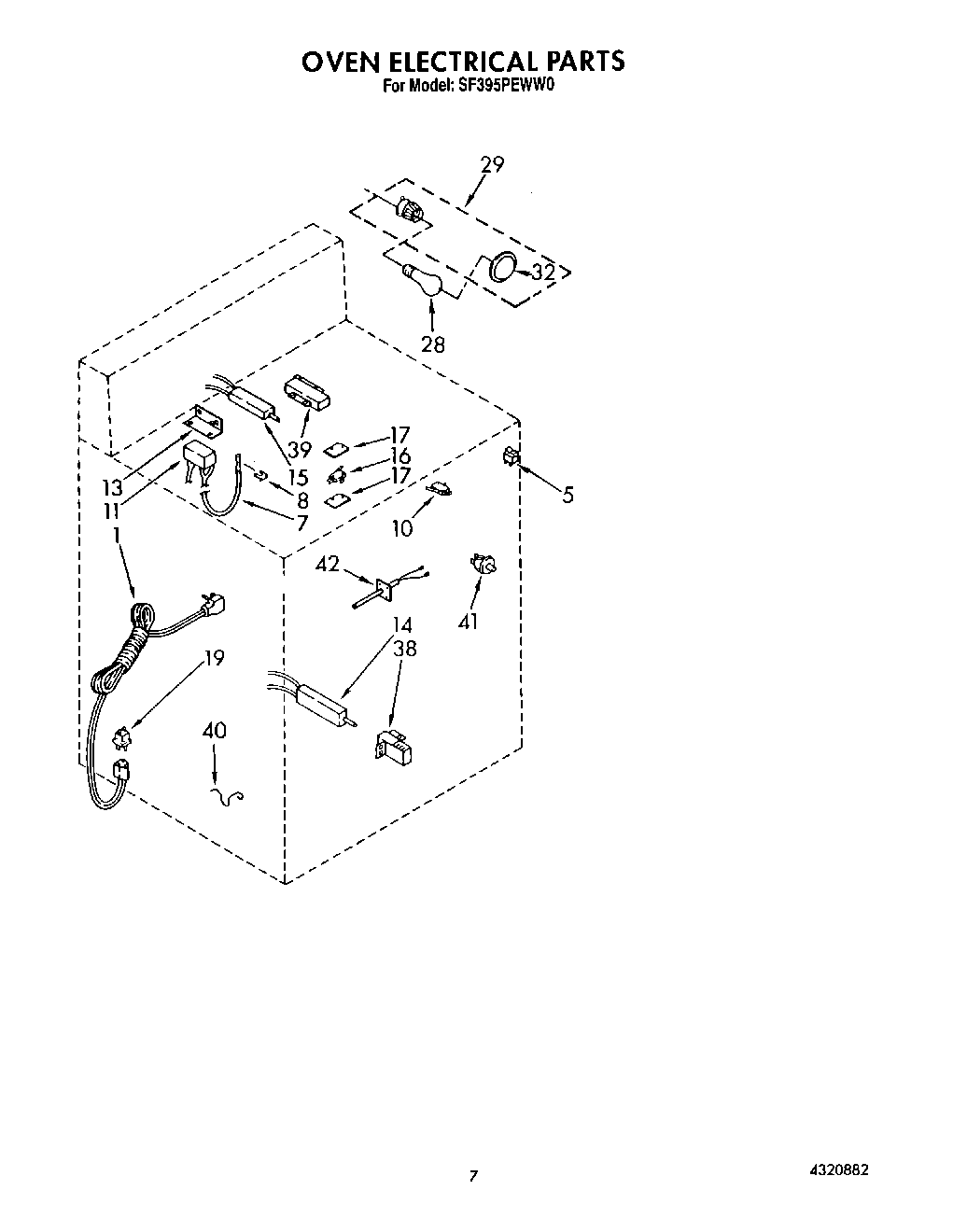

SF395PEWW0 05 – OVEN ELECTRICAL

SF395PEWW0 05 – OVEN ELECTRICAL

Written by

in

SF395PEWW0 05 – OVEN ELECTRICAL

Products

PositionProduct
1Cord, Power
5Switch, Rocker
74157608 Whirlpool Surface Igniter
8WPY0070927 Whirlpool Microwave Clip
10Nut
10Screw, 4-40 X 5/8 (2)
10switch, top burner actuator
11Spark Module
13bracket, spark module
14786324 Whirlpool Flat Igniter
15WP486754 Whirlpool Compactor Screw
15Nut, 6-32 (6)
16Switch, Oven Door Latch
16screw, 4-40 x 5/8 (2)
17Insulator, Switch
19Plug, Male
28RANGE ONLY 40W 120V APPL BULB
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
39Bracket, Broiler Ignitor
40Clip, Wire
41Switch, Oven Door
42Sensor, Oven
