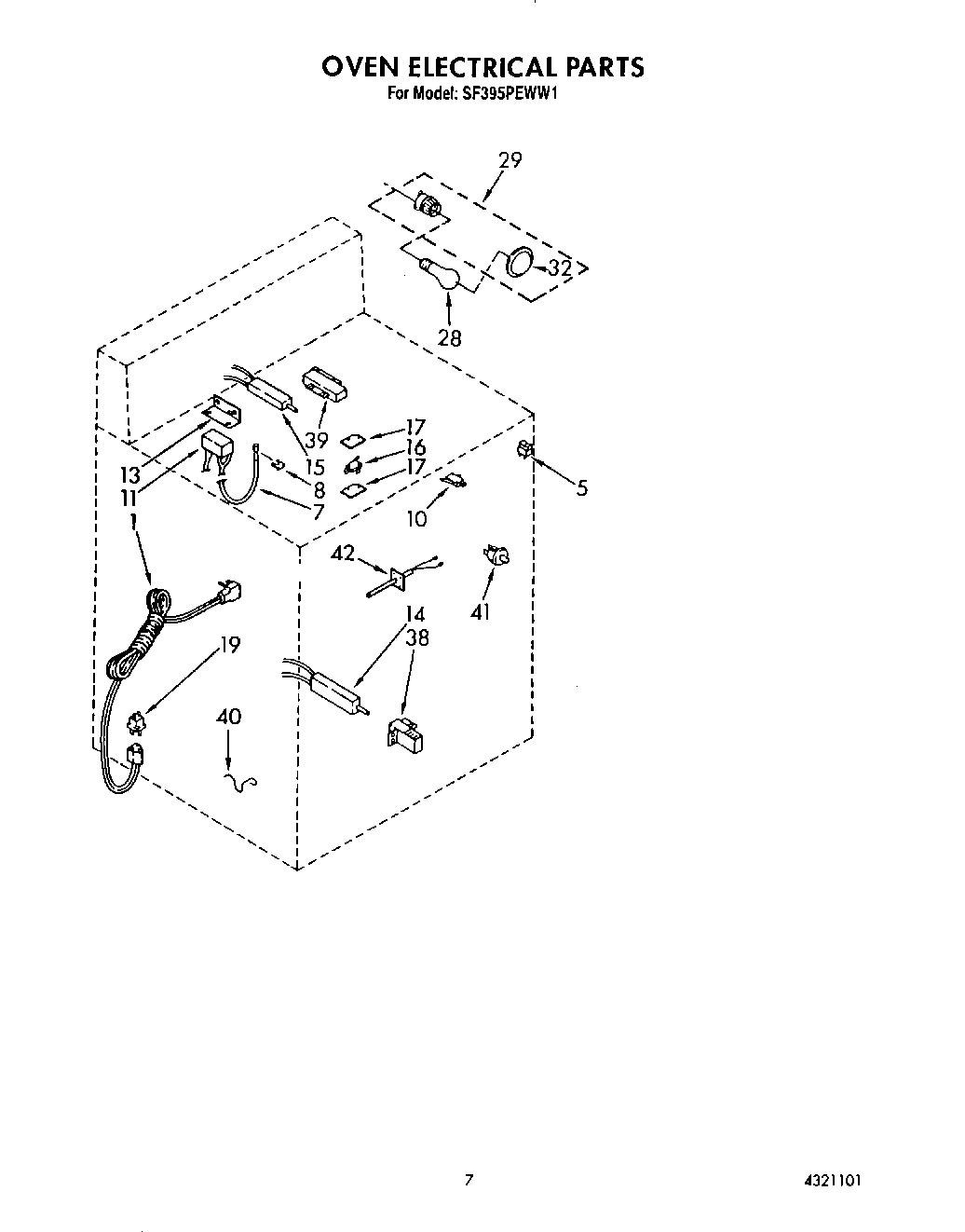

SF395PEWW1 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
5	Switch, Rocker
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	switch, top burner actuator
10	Nut
10	Screw, 4-40 X 5/8 (2)
11	Module, Spark
13	Bracket, Spark Module
15	WP486754 Whirlpool Compactor Screw
15	Nut, 6-32 (6)
15	786324 Whirlpool Flat Igniter
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
28	RANGE ONLY 40W 120V APPL BULB
29	WP74011278 Whirlpool Light
38	Bracket, Bake Ignitor
39	Bracket, Ignitor
40	Clip, Wire
41	Switch, Oven Door
42	Sensor, Oven
