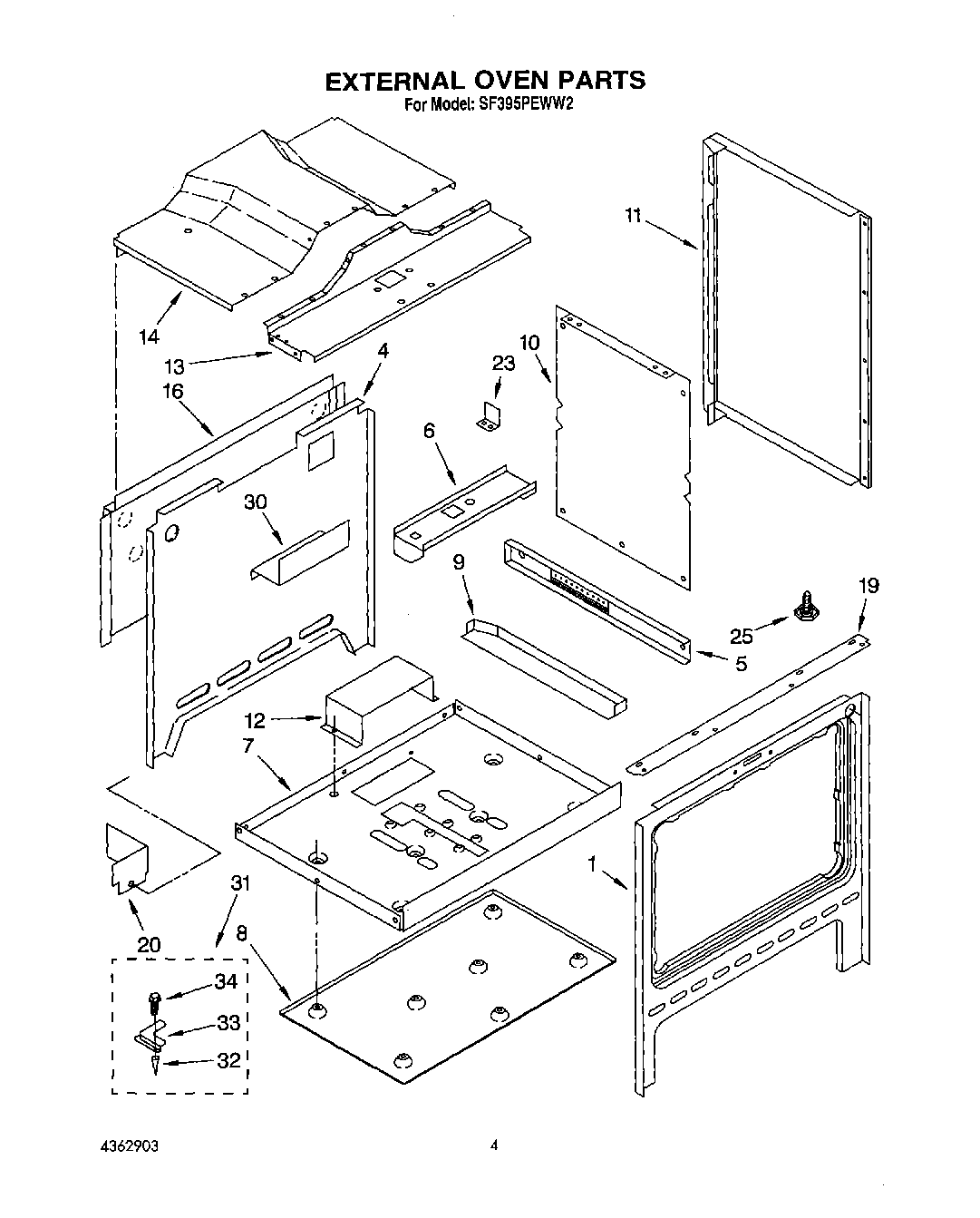

SF395PEWW2 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
4	retainer, insulation
5	track, storage drawer (left side)
5	track, storage drawer (right side)
6	WP486754 Whirlpool Compactor Screw
6	shelf, gas valve
6	Nut, 6-32 (6)
7	retainer, bottom insulation
8	Heat Shield,
9	Brace, Bottom (L.H.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	Panel, End (2) (White)
11	Trim, Side Panel (2)
11	Panel, End (2) (Almond)
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	bushing, snap
16	nut, 6-32
16	Panel, Rear
19	Frame, Filler Front
20	Plate, Cover
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
23	Bracket, Gas Valve (2)
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
