SF396PEPW0 07 – BACKGUARD , LITERATURE

SF396PEPW0 07 – BACKGUARD , LITERATURE

Written by

in

SF396PEPW0 07 – BACKGUARD , LITERATURE

Products

PositionProduct
Instructions, Installation
Guide, Cooking
Guide, Use & Care

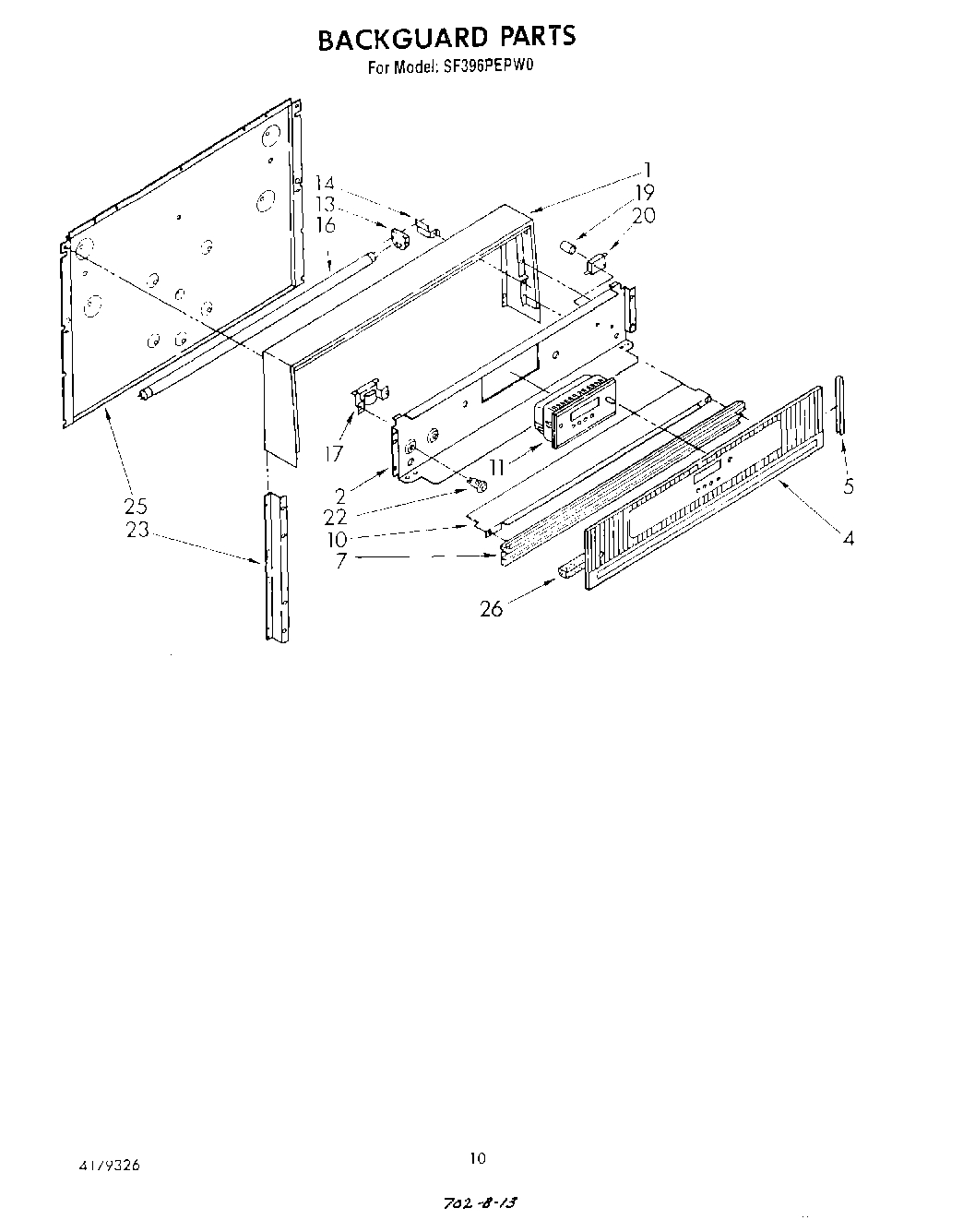

List, Repair Parts
1Screw (4)
1screw (4)
1WP965173 Whirlpool Dishwasher Screw
1Screw, 8 X 3/8 (14)
1Screw, Handle (4)
1Frame
2Panel, Control Mounting
4Glass, Control Panel
5Channel, Glass (2)
7Trim, Lower
10Shield, Heat
11Clock (Includes Knobs)
13Lampholder Fluorescent
14Support, Lamp Socket (Left Side)
14Support, Lamp Socket (Right Side)
16Lamp, Fluorescent
17Ballast
19Starter, Fluorescent
20Socket, Starter
22Light, Indicator (2)
23Support, Control Panel (2)
25Panel, Cover
26Insulation, Backguard
