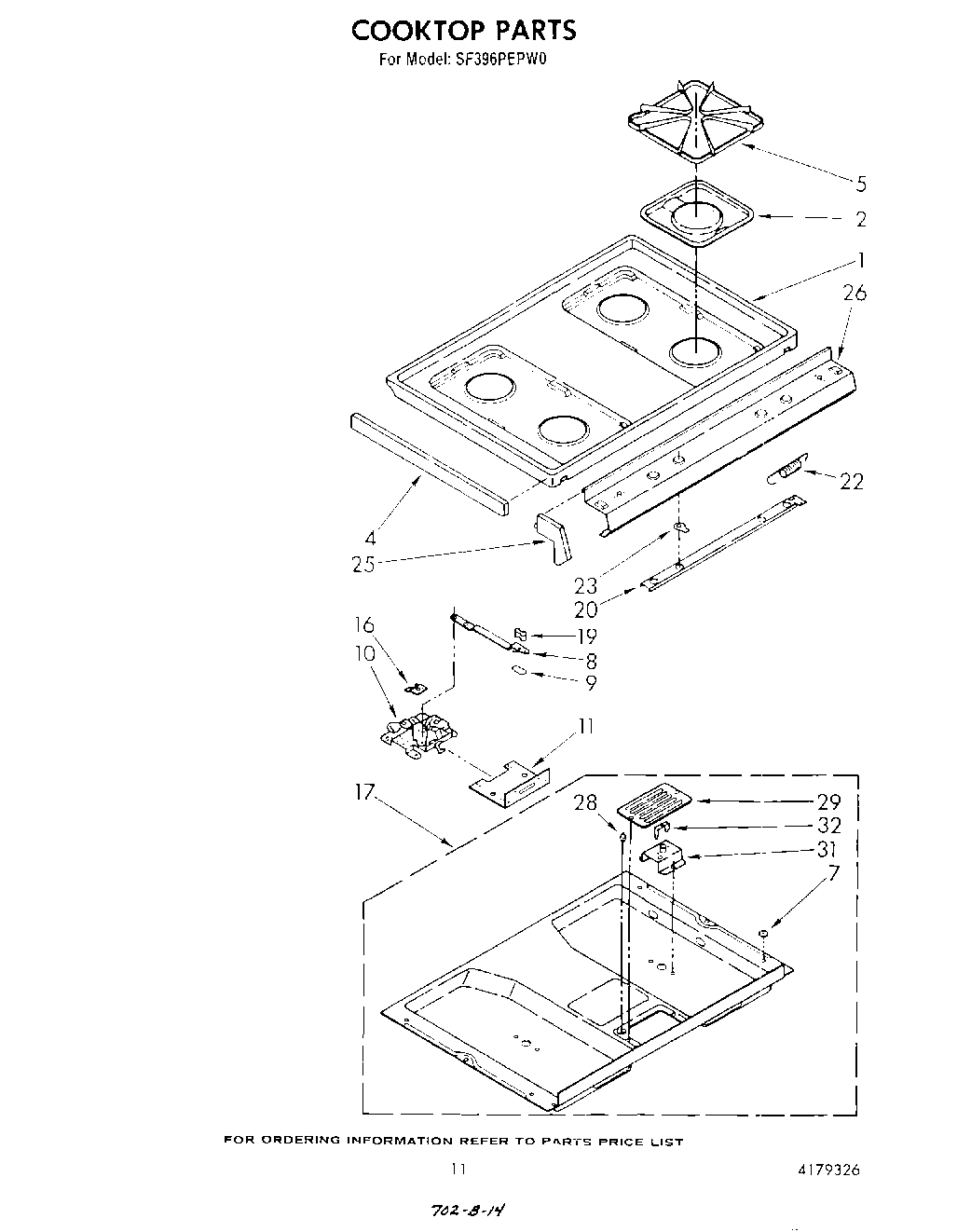

SF396PEPW0 08 – COOK TOP

Products

PositionProduct
1Top, Main (Platinum)
1Top, Main (Toast)
1Top, Main (Almond)
1Top, Main (White)
2WP786333 Whirlpool Drip Bowl
4Trim, Main Top (Left Side)
4Trim, Main Top (Right Side)
5Grate, Top Burner
7Spacer, Nylon (4)
8Handle, Latch
9Support, Latch
10Latch Assembly
11Bracket, Mounting Latch
16Bracket, Switch
16screw, 4-40 (2)
17Burner Box
19Knob, Latch Handle
20Actuator, Spark Ignitor
22Spring
23Cam (4)
25End Cap (Right)
25End Cap (Left)
26Panel, Control
28LP Gas No. 58
29Plate, Cover
31Bracket, Top (2)
31WP965173 Whirlpool Dishwasher Screw
32Bracket, Electrode (2)
