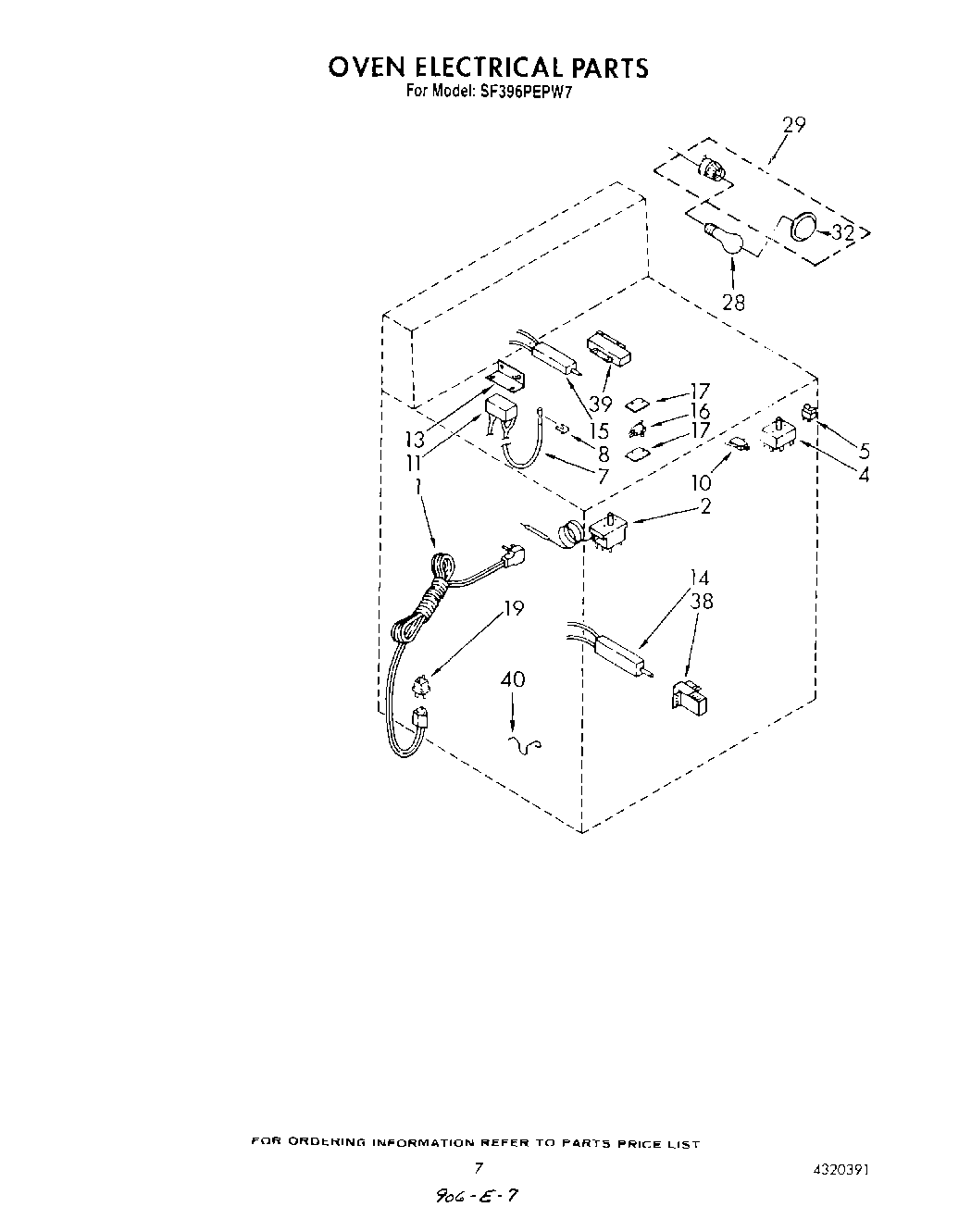

SF396PEPW7 05 – OVEN ELECTRICAL
Written by
in
SF396PEPW7 05 – OVEN ELECTRICAL
Products
Position
Product
1
Cord, Power
2
screw, 6-32 x 1/4 (2)
2
Thermostat, Oven
4
Switch, Selector
5
Switch, Rocker
7
4157608 Whirlpool Surface Igniter
8
WPY0070927 Whirlpool Microwave Clip
10
switch, top burner actuator
10
Nut
10
Screw, 4-40 X 5/8 (2)
11
Module, Spark
13
bracket, spark module
14
786324 Whirlpool Flat Igniter
15
WP486754 Whirlpool Compactor Screw
15
Nut, 6-32 (6)
16
Switch, Oven Door Latch
16
screw, 4-40 x 5/8 (2)
17
Insulator, Switch
19
Plug, Male
28
RANGE ONLY 40W 120V APPL BULB
29
WP74011278 Whirlpool Light
32
Lens, Oven Light
38
Bracket, Bake Ignitor
39
Bracket, Broiler Ignitor
40
Clip, Wire
←
