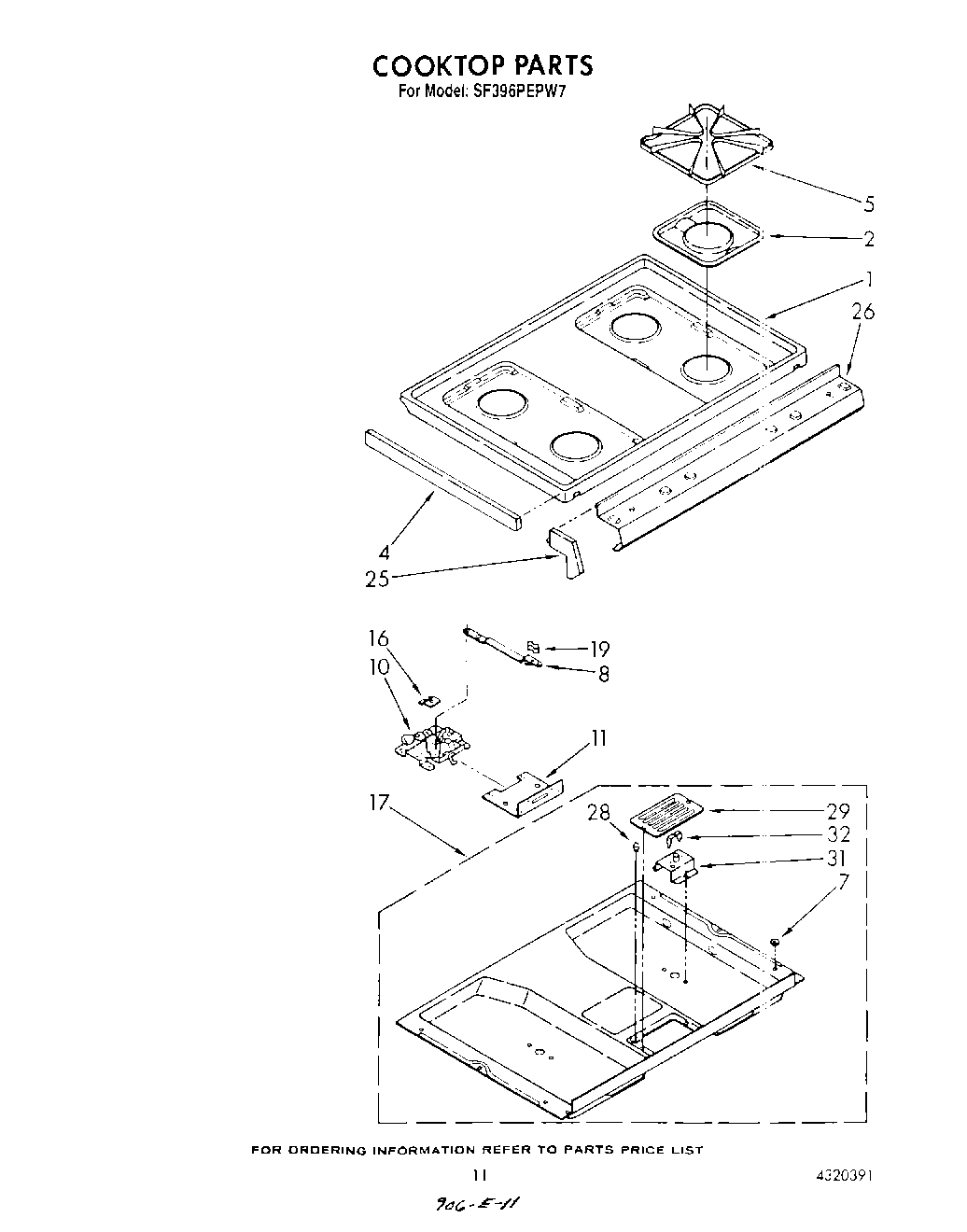

SF396PEPW7 08 – COOK TOP

Products

Position	Product
1	Top, Main (Almond)
1	Top, Main (White)
2	WP786333 Whirlpool Drip Bowl
4	Trim, Main Top (Right Side)
4	Trim, Main Top (Left Side)
5	Grate, Top Burner
7	Spacer, Nylon (4)
8	Handle, Latch
10	WP965173 Whirlpool Dishwasher Screw
10	Latch Assembly
11	Bracket, Latch Mounting
16	screw, 4-40 (2)
16	Bracket, Switch
17	Burner Box
19	Knob, Latch Handle
25	End Cap (Left)
25	End Cap (Right)
26	Panel, Control
28	LP Gas No. 58
29	Plate, Cover
31	Bracket, Top (2)
32	Bracket, Electrode (2)
