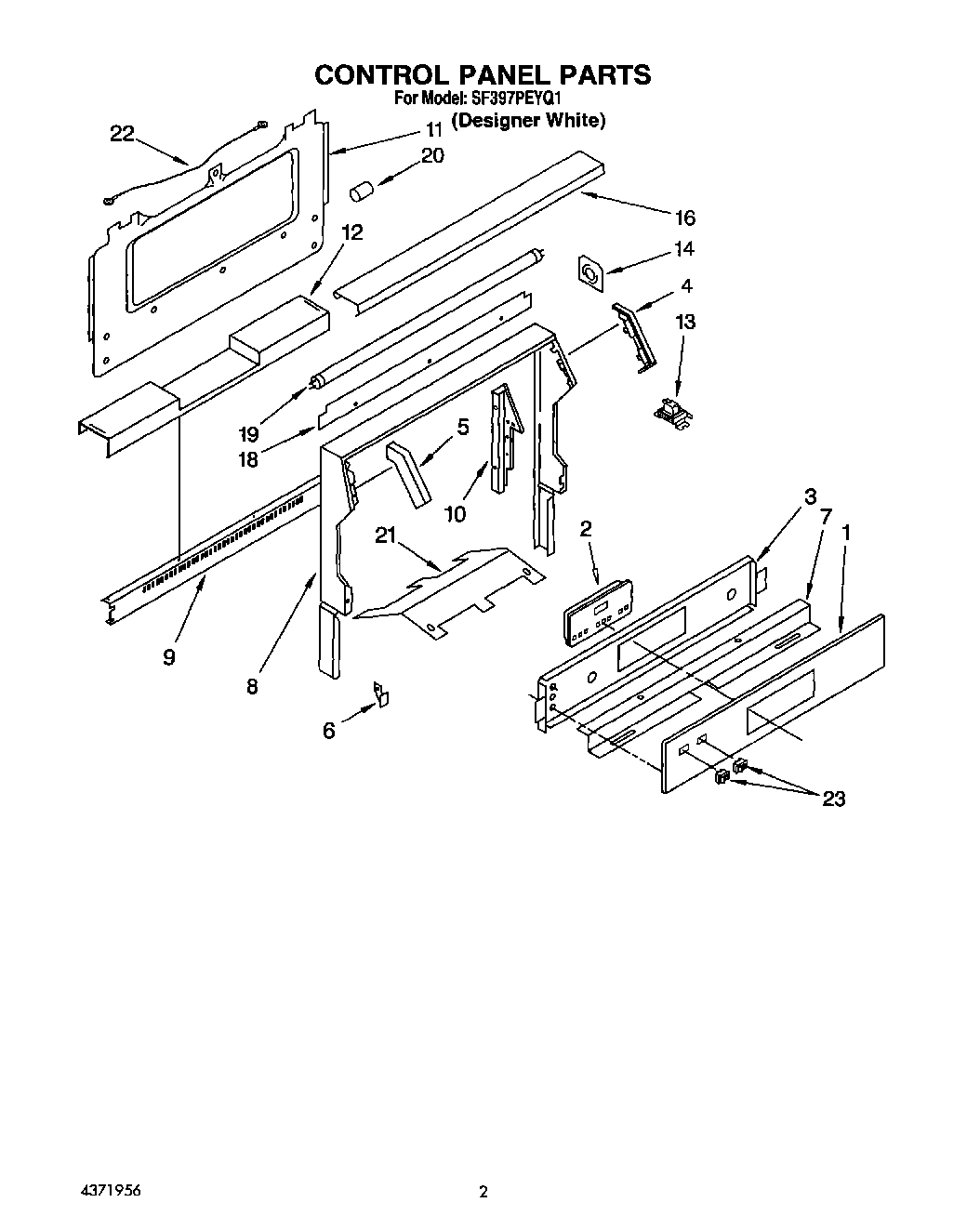

SF397PEYQ1 02 – CONTROL PANELadmin2025-04-26T13:10:04+00:00SF397PEYQ1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control (Designer White) |
| 2 | Control, Electronic Timer |
| 3 | Bracket, Timer |
| 4 | Endcap, RH |
| 5 | Endcap, LH |
| 6 | Cap, Filler |
| 7 | Retainer, Timer |
| 8 | Trim, Wrapper (Designer White) |
| 9 | Trim, Vent |
| 10 | Support, Control Panel (R.H.) |
| 10 | Support, Control Panel (L.H.) |
| 11 | Shield, Rear Wall |
| 12 | Deflector, Flue |
| 13 | Ballast |
| 14 | Receptacle, Fluorescent Light (LH) |
| 14 | Receptacle, Fluorescent Light (RH) |
| 16 | Trim, Canopy (Designer White) |
| 18 | Deflector, Light |
| 19 | WP95292 Whirlpool Fluorescent Light Bulb |
| 20 | Button, Glide |
| 21 | Shield, Inner Bkgd |
| 22 | Cable, Anti-Tip |
| 23 | WP4314961 Whirlpool Lite Switch |
