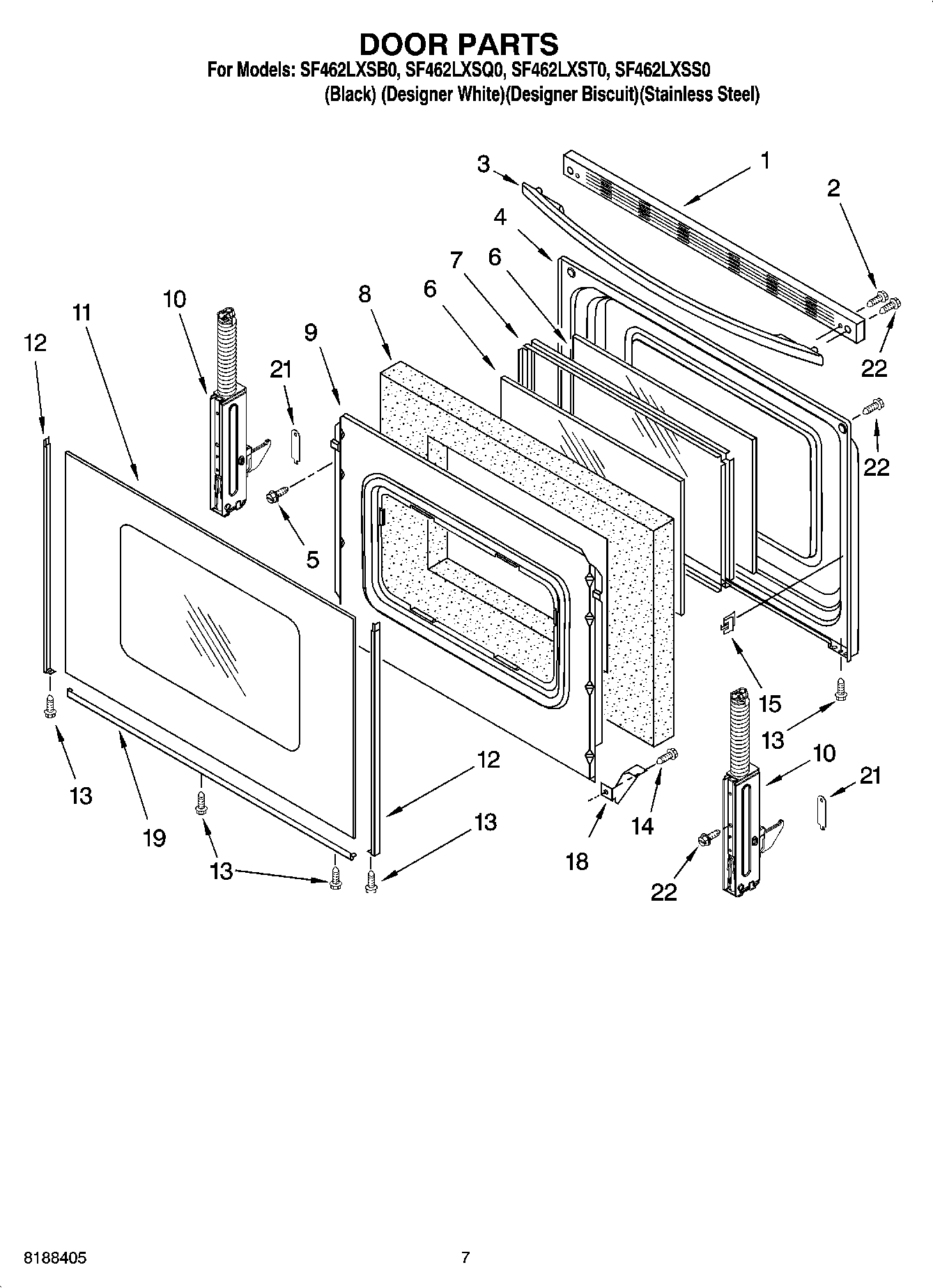

SF462LXSQ0 05 – DOOR PARTS

SF462LXSQ0 05 – DOOR PARTS

Written by

in

SF462LXSQ0 05 – DOOR PARTS

Products

PositionProduct
1Trim, Top (Biscuit)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202217 Whirlpool Door Handle
3W10202219 Whirlpool Door Handle Assembly
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11Glass, Outer (Stainless Steel)
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
12WP8523173 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP8523175 Whirlpool Door Trim Assembly
19WP8523177 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
19WP8523180 Whirlpool Door Trim Assembly
219761517 Whirlpool Oven Clip Assembly
22W10777162 Whirlpool Screw
