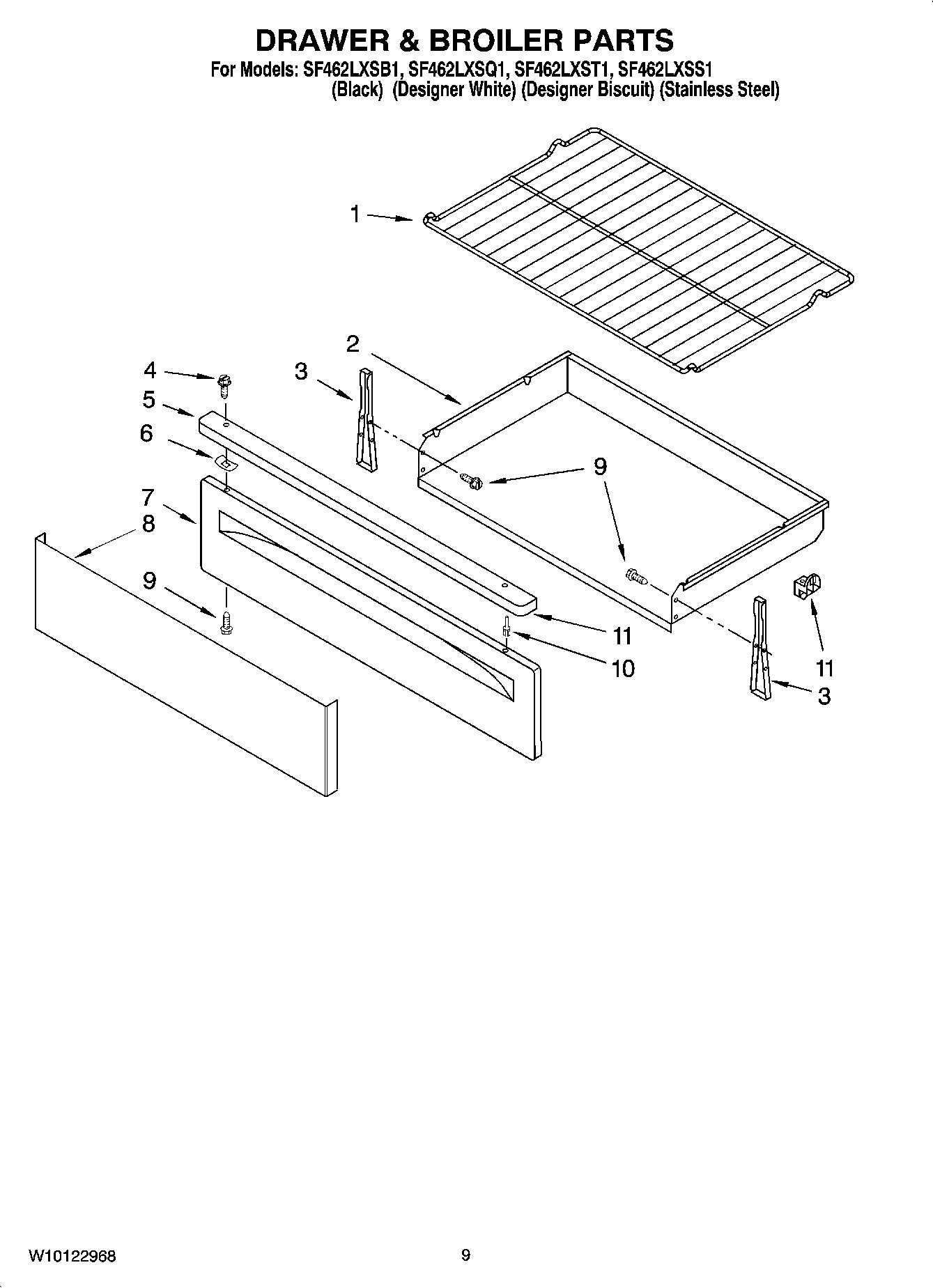

SF462LXSQ1 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI130325A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
WPL ARI130326A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Grease
3196896 Whirlpool Clip
W10045060 Whirlpool Grounding Wire
WPL ARI130324A
WPL ARI130323A
WPL ARI130322A
WPL ARI130321A
WPL ARI130320A
WPL W10082160
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
285006 Whirlpool Spray
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
4392901 Whirlpool Biscuit Spray Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
W11447673 Whirlpool Range Tip Anchor
3400964 Whirlpool Oven Clip
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
242831 Whirlpool Oven Wire
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
16515 Whirlpool Clip
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3BRKT-MNTG
4WPW10031790 Whirlpool Screw
5Handle
6WP9781235 Whirlpool Clip
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
7Panel, Drawer Front (Biscuit)
8Panel, Stnls & US
9WP3400832 Whirlpool Screw
103196815 Whirlpool Oven Rivet
10WP3196813 Whirlpool Rivet
10WP3196814 Whirlpool Rivet
11WP8053334 Whirlpool Drawer Glide
