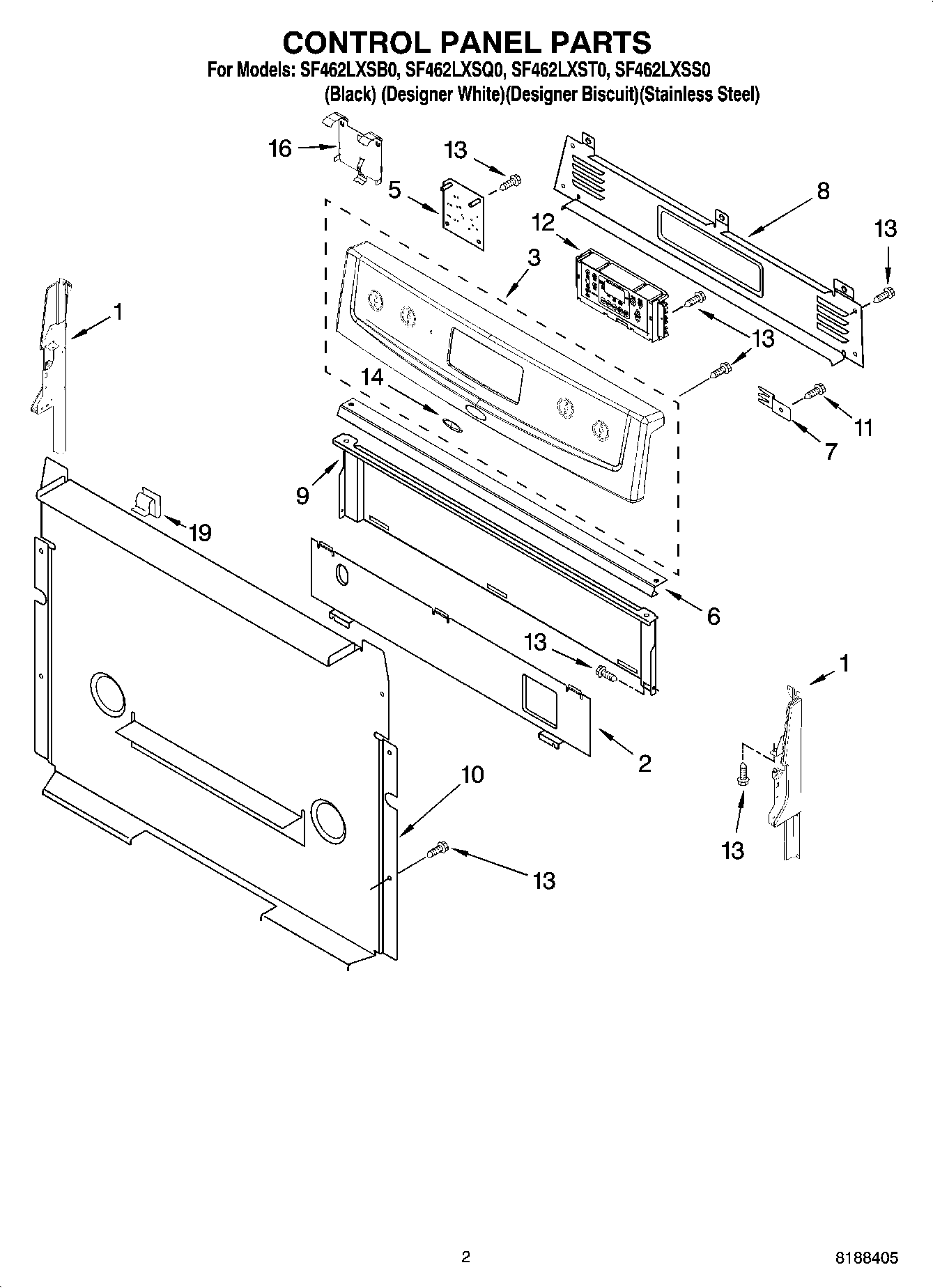

SF462LXSS0 02 – CONTROL PANEL PARTS

SF462LXSS0 02 – CONTROL PANEL PARTS

Written by

in

SF462LXSS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230612 Whirlpool Panel End Cap
1Endcap (Biscuit Left Hand)
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
28053505 Whirlpool Oven Shield
3Panel, Control (White)
3Panel, Control (Biscuit)
3Panel, Control (Silver for Stnlss)
3Panel, Control (Black)
5WPW10331686 Whirlpool Oven Spark Module
6Bracket, Console
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP3196557 Whirlpool Screw
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14Nameplate
16Brkt-Mntg, DSI
19WP8273564 Whirlpool Clip
