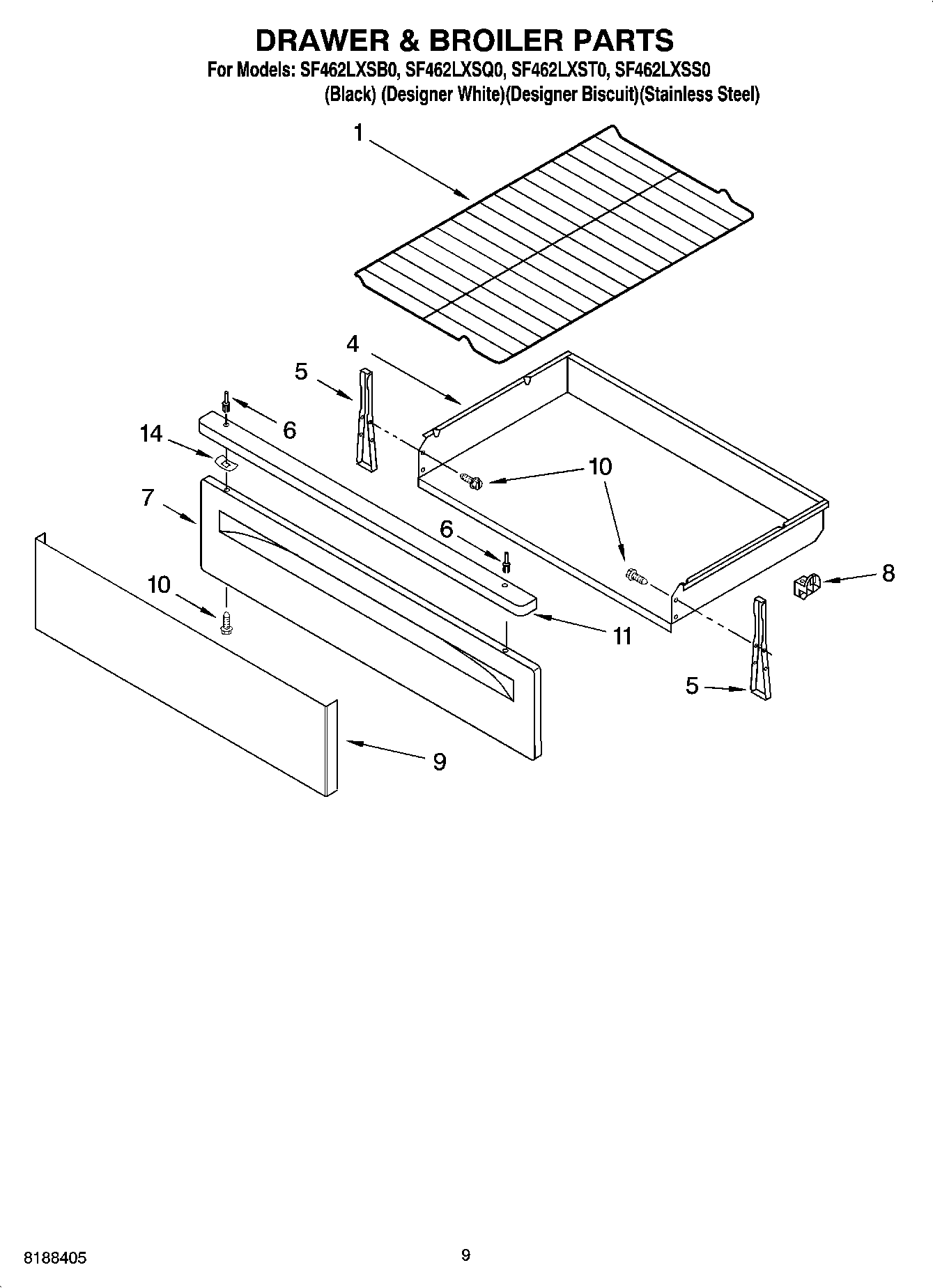

SF462LXSS0 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI164095A
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	3196896 Whirlpool Clip
	W10045060 Whirlpool Grounding Wire
	8523599 Whirlpool Oven Wire Harness
	WPL ARI164094A
	WPL ARI164093A
	WPL ARI164092A
	WPL ARI164091A
	WPL ARI164090A
	WPL ARI164089A
	WPL 9762433
	WPL 8524207
	TIE,WIRE
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Wire, 25` Roll (Red 14 Ga.)
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	285006 Whirlpool Spray
	350930 Whirlpool White Spray Paint
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	W11447673 Whirlpool Range Tip Anchor
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	BRKT-MNTG
6	3196815 Whirlpool Oven Rivet
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230486 Whirlpool Drawer Panel
7	W11230490 Whirlpool Drawer Panel
8	WP8053334 Whirlpool Drawer Glide
9	Panel, Stnls & US
10	WP3400832 Whirlpool Screw
11	Handle
14	WP9781235 Whirlpool Clip
