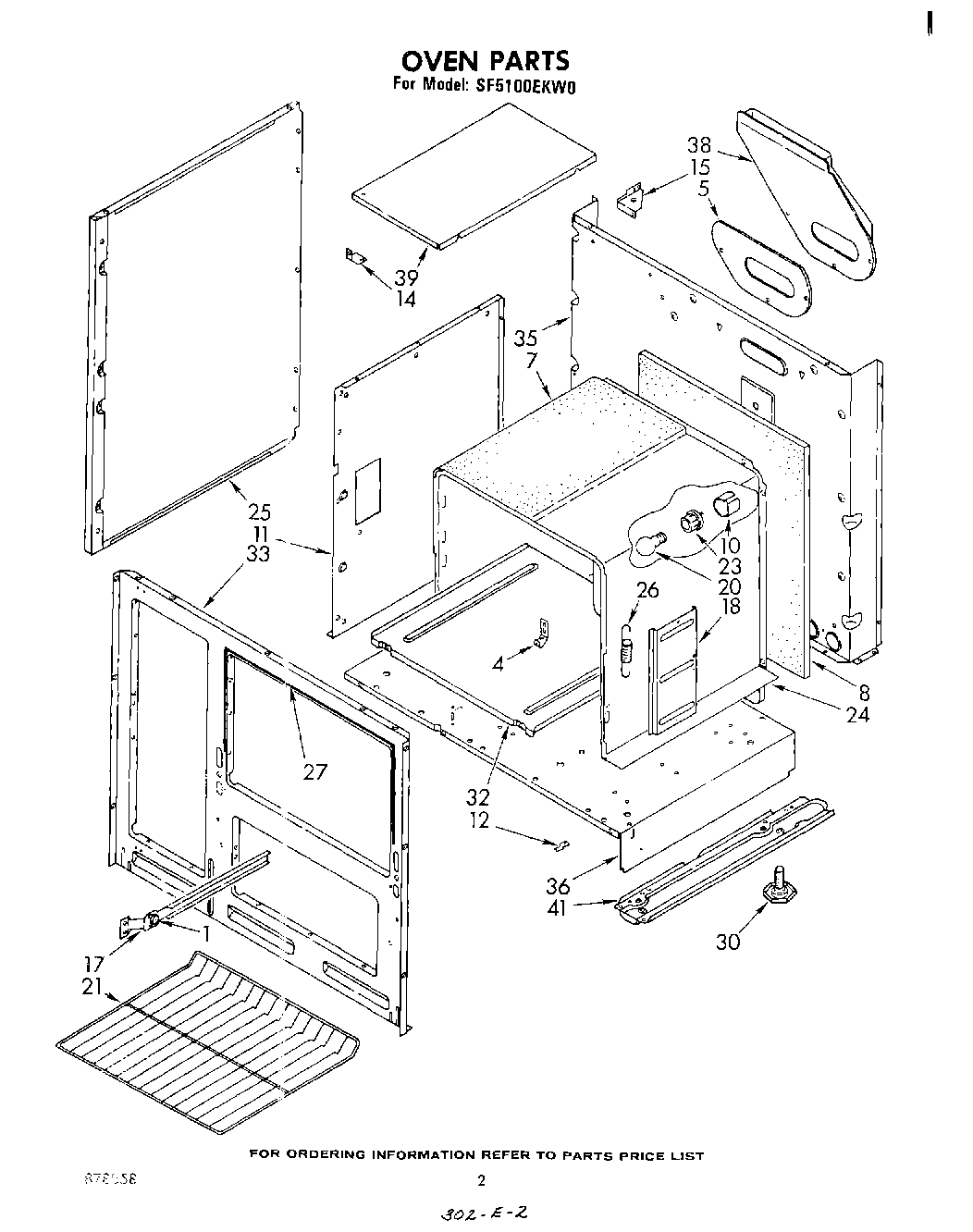

SF5100EKW0 02 – OVEN, LITERATURE

Products

Position	Product
1	Bearing, Roller (4)
4	98005642 Whirlpool Clip
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Sleeve, Light Hole
11	Side, Compartment
12	Clip, Oven Bottom Plate (2)
14	Support, Compartment Shelf
15	Bracket, Corner Support (Left Side)
15	Bracket, Corner Support (Right Side)
17	Track, Broiler (Right Side)
17	Track, Broiler (Left Side)
18	Cover, Hinge (2)
20	RANGE ONLY 40W 120V APPL BULB
21	Rack, Oven (2)
23	Socket, Oven Light
24	Oven, 30“ Standard Clean (Not Serviceable)
25	Panel, End (2) (Almond)
25	Panel, End (2) (White)
25	Panel, End (2) (Harvest Gold)
25	Panel, End (2) (Coffee)
26	Spring, Oven Door
27	Seal, Oven Door (Top (1))
27	Seal, Oven Door (Side (2))
30	Screw, Leveling (4)
32	Plate, Oven Bottom
33	Front, Main
35	Back, Main
36	Bottom, Main
38	Deflector, Vent
39	Shelf, Compartment
41	Instructions, Installation
41	Diagram, Wiring
41	Booklet, Use & Care
41	Runner, Base (Right Side)
41	Runner, Base (Left Side)
41	List, Repair Parts
