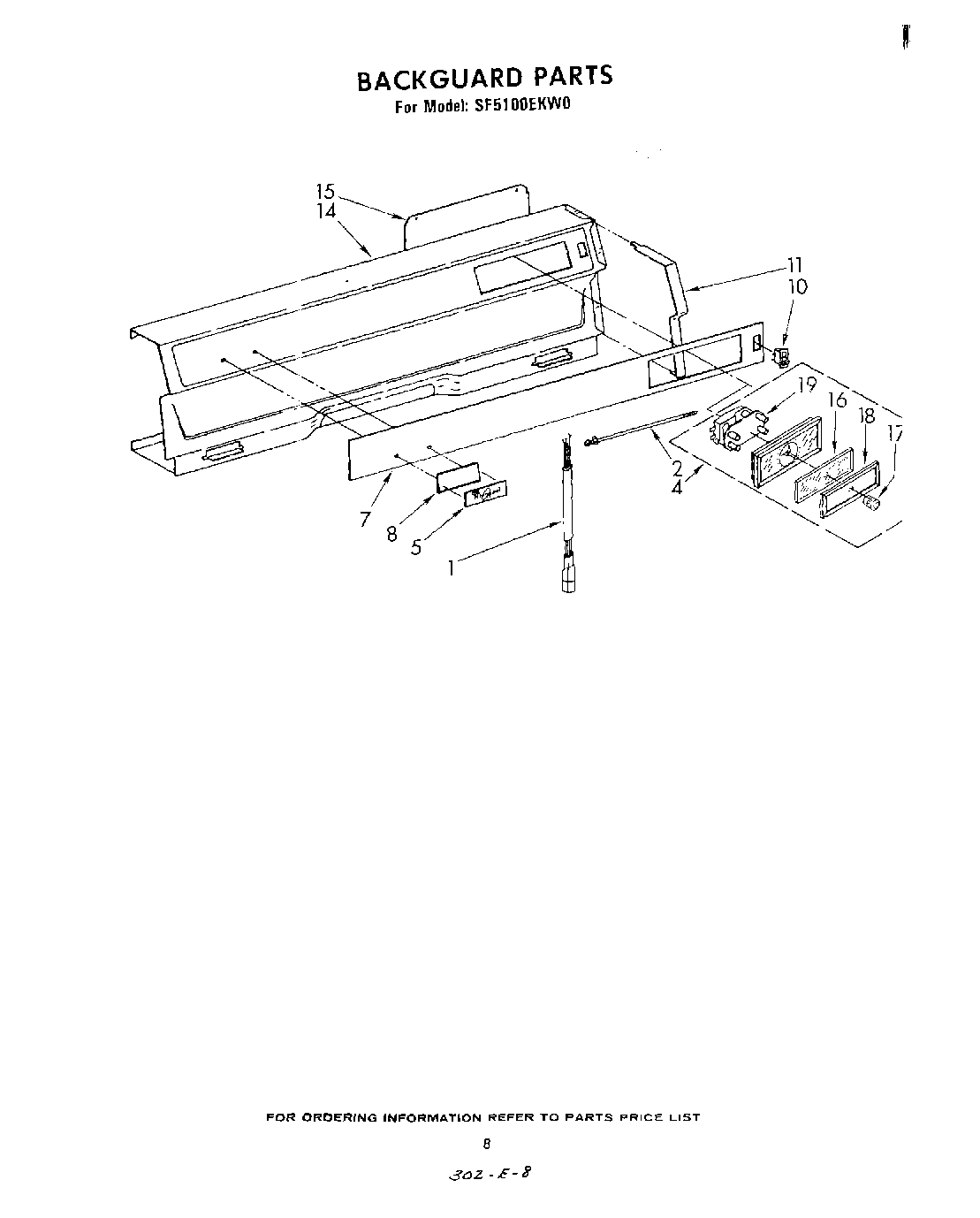

SF5100EKW0 05 – BACKGUARD

Products

Position	Product
1	Block, Disconnect Pin
2	Clamp, Wire
4	Clock, Regular
5	Inlay, Nameplate
7	Inlay, Backguard Panel
8	Plate, Name
10	Switch, Rocker
11	End Cap, Backguard (Right Side)
11	End Cap, Backguard (Left Side)
14	Panel, Backguard (Almond)
14	Panel, Backguard (Coffee)
14	panel, backguard (white)
14	Panel, Backguard (Harvest Gold)
15	Cover, Clock
16	Glass, Timer
17	Knob (1)
18	Bezel
19	Motor
