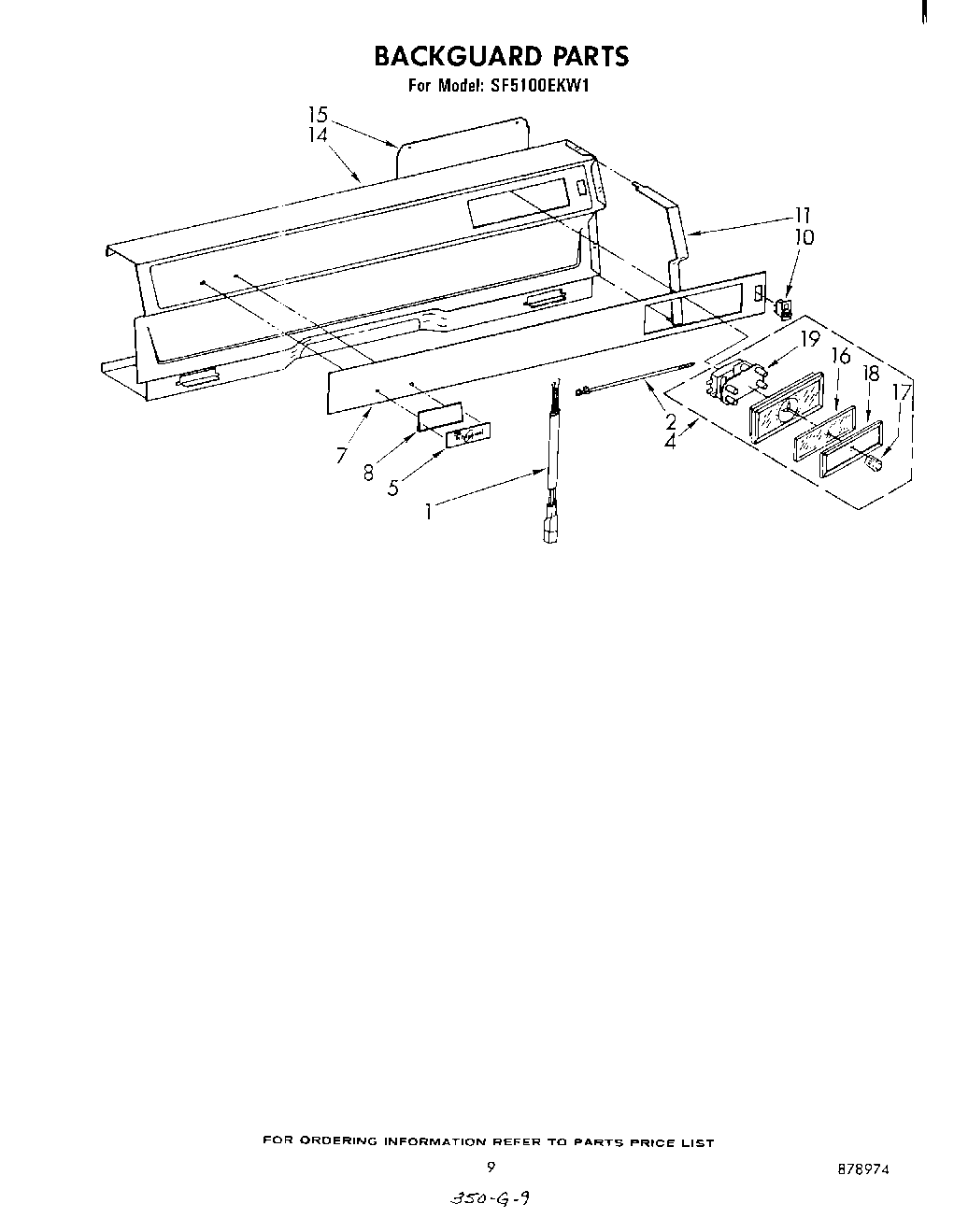

SF5100EKW1 06 – BACKGROUND

Products

PositionProduct
1Block, Disconnect Pin
2Clamp, Wire
4Clock, Regular
5Inlay, Nameplate
7Inlay, Backguard Panel
8Plate, Name
10Switch, Rocker
11End Cap, Backguard (Right Side)
11End Cap, Backguard (Left Side)
14Panel, Backguard (Coffee)
14Panel, Backguard (Almond)
14Panel, Backguard (Platinum)
14panel, backguard (white)
14Panel, Backguard (Toast)
14Panel, Backguard (Harvest Gold)
15Cover, Clock
16Glass, Timer
17Knob (1)
18Bezel
19Motor
