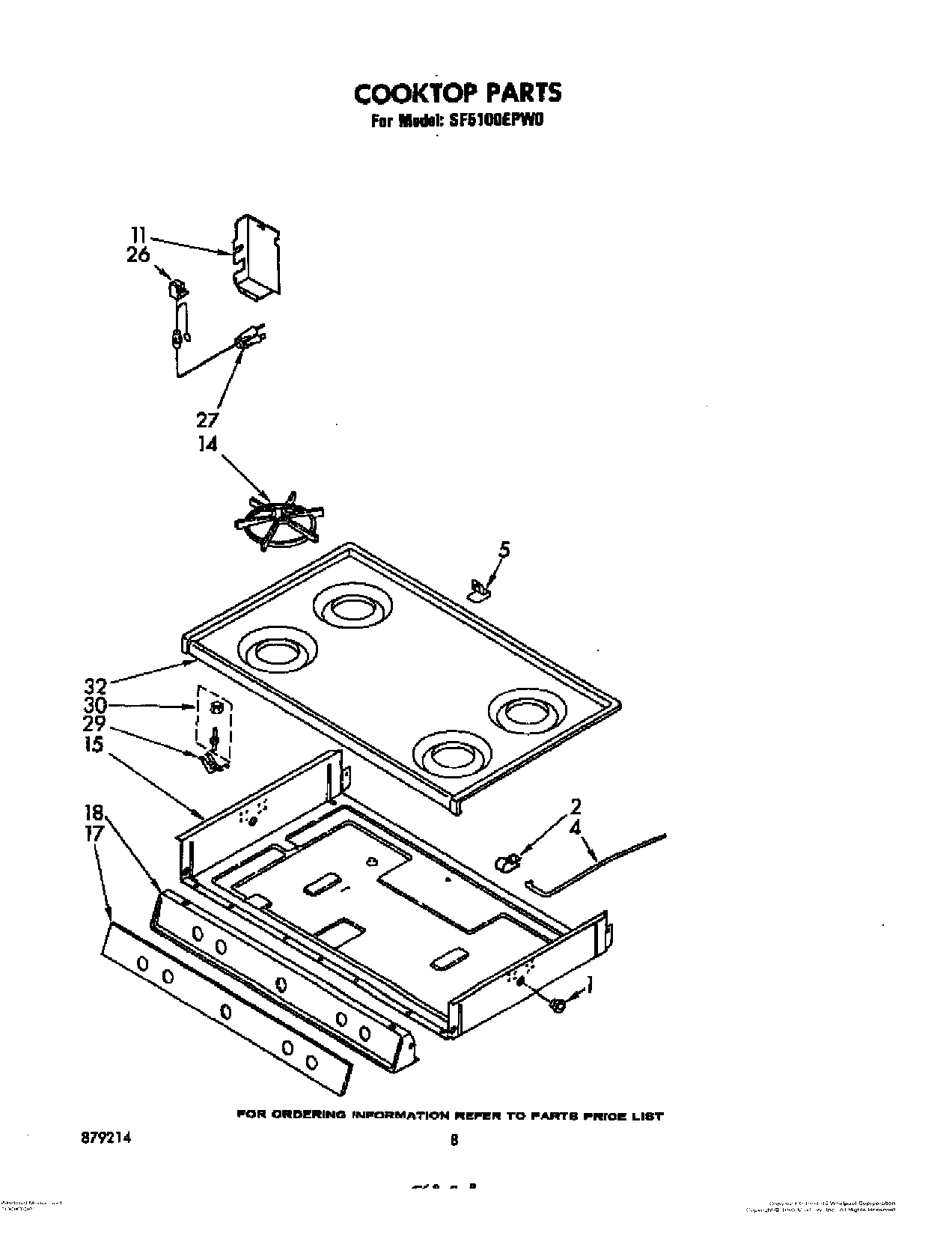

SF5100EPW0 05 – COOKTOP

SF5100EPW0 05 – COOKTOP

Written by

in

SF5100EPW0 05 – COOKTOP

Products

PositionProduct
1Bushing, Snap
2Clamp, Top Stop
4Stop, Cook Top
5Spacer, Main Top
11Cover, Wire
14Grate, Burner (4)
15Bottom, Burner Box
17Inlay, Manifold Panel
18Panel, Manifold (White)
18Panel, Manifold (Almond)
18Panel, Manifold (Platinum)
18Panel, Manifold (Toast)
26Block, Disconnect Socket
27Cord, Extension
29Catch, Main Top (2)
30Strike, Main Top (2)
32Top, Main (Almond)
32Top, Main (White)
32Top, Main (Toast)
32Top, Main (Platinum)
