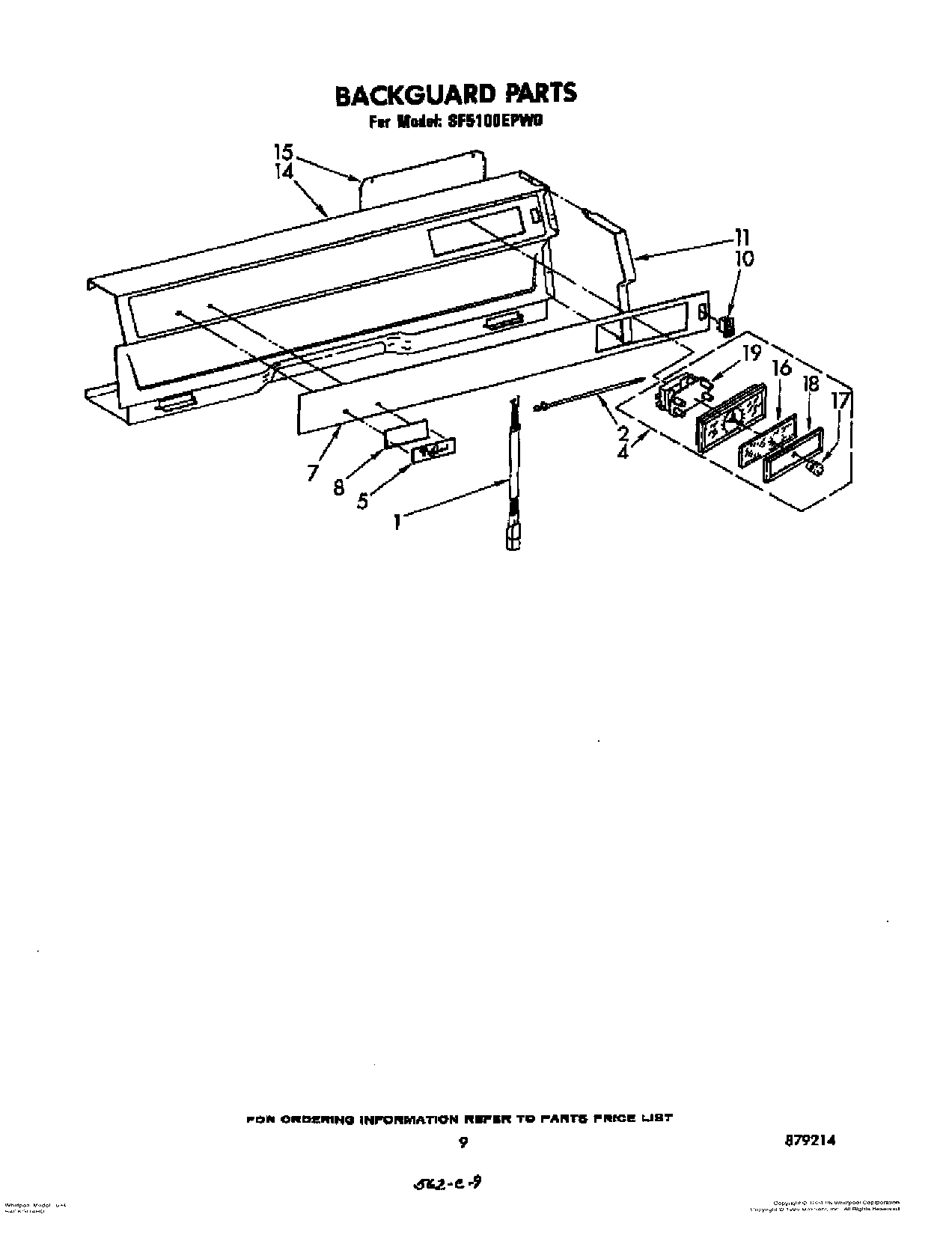

SF5100EPW0 06 – BACKGUARD

Products

PositionProduct
1Block, Disconnect Pin
2Clamp, Wire
2Clamp, Wire
4Clock, Regular
5Inlay, Nameplate
7Inlay, Backguard Panel
8Plate, Name
10Switch, Rocker
11End Cap, Backguard (Right Side)
11End Cap, Backguard (Left Side)
14Panel, Backguard (Platinum)
14panel, backguard (white)
14Panel, Backguard (Toast)
14Panel, Backguard (Almond)
15Cover, Clock
16Glass, Timer
17WP3169181 Whirlpool Knob
18Bezel
19Motor
