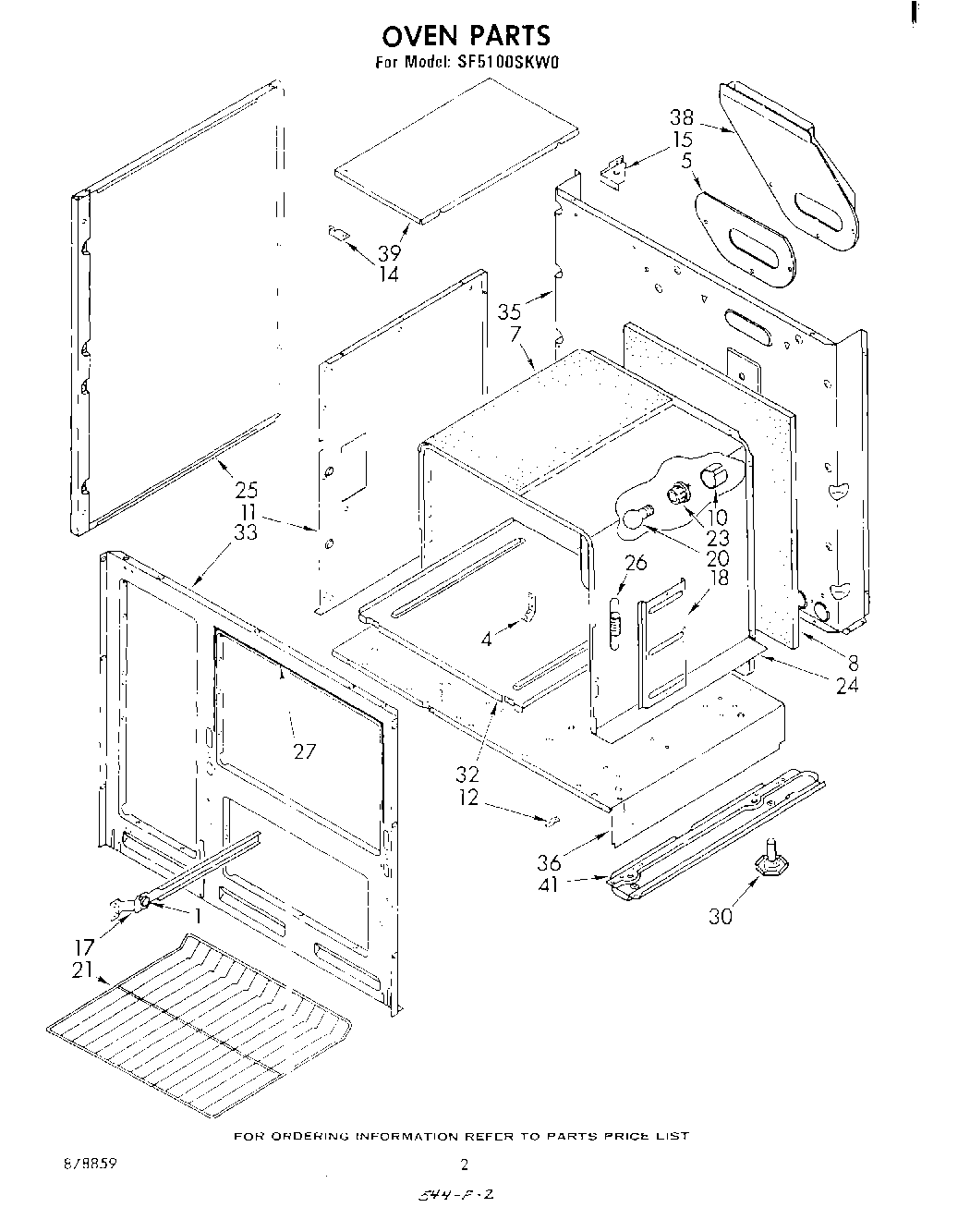

SF5100SKW0 02 – OVEN , LITERATURE AND OPTIONAL

Products

PositionProduct
1Bearing, Roller (4)
498005642 Whirlpool Clip
5Gasket, Vent Deflector
7WPW10208653 Whirlpool Insulation
10Sleeve, Light Hole
11Side, Compartment
12Clip, Oven Bottom Plate (2)
14Support, Compartment Shelf
15Bracket, Corner Support (Right Side)
15Bracket, Corner Support (Left Side)
17Track, Broiler (Right Side)
17Track, Broiler (Left Side)
18Cover, Hinge (2)
20RANGE ONLY 40W 120V APPL BULB
21Rack, Oven (2)
23Socket, Oven Light
24Oven, 30“ Standard Clean (Not Serviceable)
25Panel, End (2) (Toast)
25Panel, End (2) (Harvest Gold)
25Panel, End (2) (Coffee)
25Panel, End (2) (White)
25Panel, End (2) (Almond)
25Panel, End (2) (Platinum)
26Spring, Oven Door
27Seal, Oven Door (Side (2))
27Seal, Oven Door (Top (1))
30Screw, Leveling (4)
32Plate, Oven Bottom
33Front, Main
35Back, Main
36Bottom, Main
38Deflector, Vent
39Shelf, Compartment
41Diagram, Wiring
41Booklet, Use & Care
41Runner, Base (Right Side)
41Instructions, Installation
41List, Repair Parts
41Runner, Base (Left Side)
