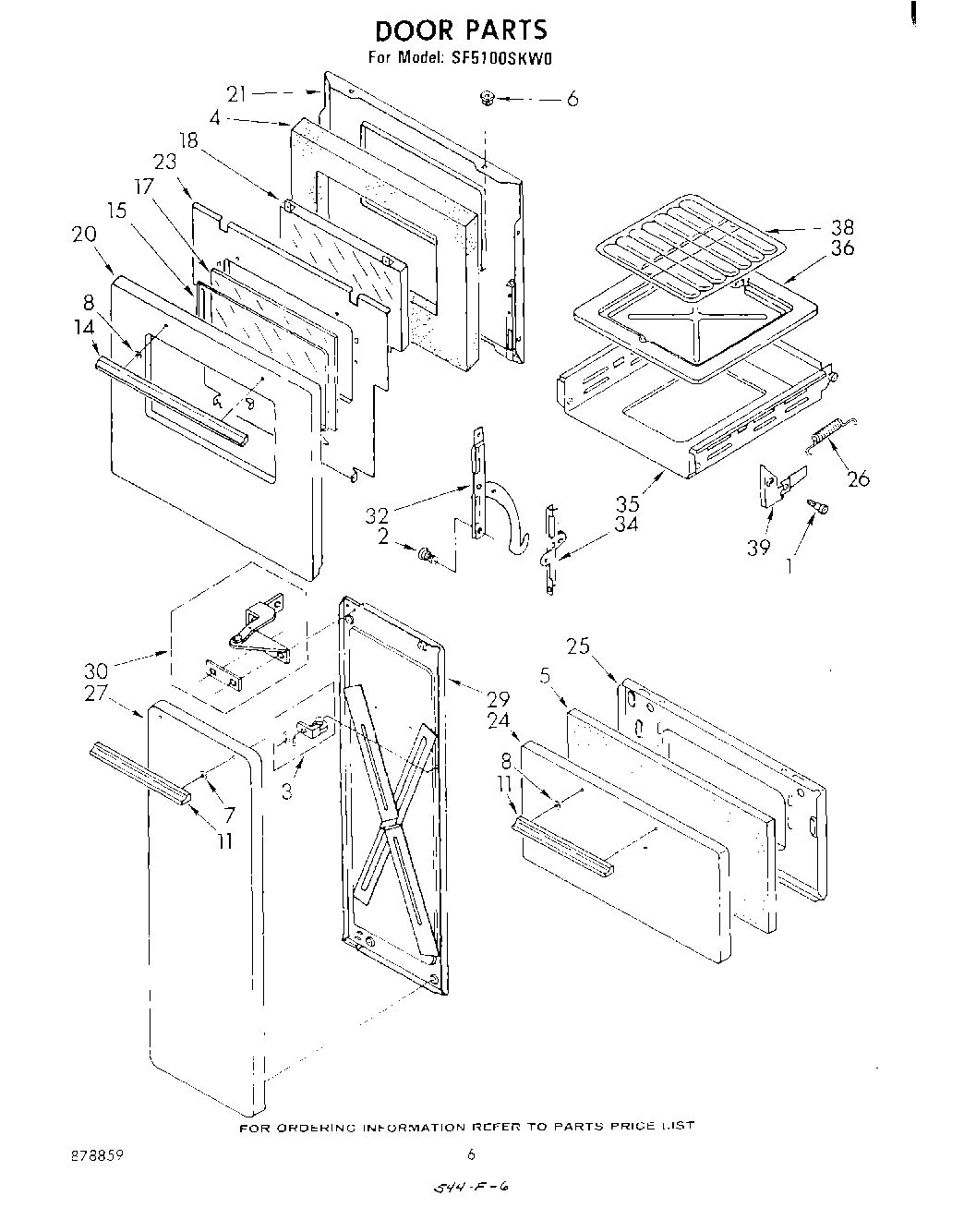

SF5100SKW0 04 – DOOR

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
3	Catch, Compartment Door
4	WPW10208653 Whirlpool Insulation
5	Insulation, Broiler Door
6	98460 Whirlpool Nut
7	Spacer, Broiler Door Handle (2)
8	Spacer, Oven Door Handle (2)
11	Handle, Door 9“ (2)
14	Handle, Broiler Door
15	Bezel, Oven Door
17	Glass, Oven Door Outside
18	Glass, Oven Door Package
20	Panel, Oven Door (Coffee)
20	panel, oven door (almond)
20	Panel, Oven Door (White)
20	Panel, Oven Door (Toast)
20	Panel, Oven Door (Harvest Gold)
20	Panel, Oven Door (Platinum)
21	Lining, Oven Door
23	Baffle, Door
24	Panel, Broiler Door (Platinum)
24	Panel, Broiler Door (Harvest Gold)
24	Panel, Broiler Door (Coffee)
24	Panel, Broiler Door (Toast)
24	panel, broiler door (white)
24	Panel, Broiler Door (Almond)
25	Lining, Broiler Door
26	Spring, Broiler Door (2)
27	panel, compartment door (platinum)
27	panel, compartment door (white)
27	Panel, Compartment Door (Coffee)
27	Panel, Compartment Door (Toast)
27	panel, compartment door (almond)
27	Panel, Compartment Door (Harvest Gold)
29	Lining, Compartment Door
30	Hinge, Compartment Door (2)
32	Hinge, Oven Door (2)
34	Support, Oven Door (Left Side)
34	Support, Oven Door (Right Side)
35	Drawer, Broiler
36	Pan, Broiler
38	Tray, Broiler Pan
39	Hinge, Broiler Door (Left Side)
39	Hinge, Broiler Door (Right Side)
