SF5100SKW0 06 – COOK TOP

SF5100SKW0 06 – COOK TOP

Written by

in

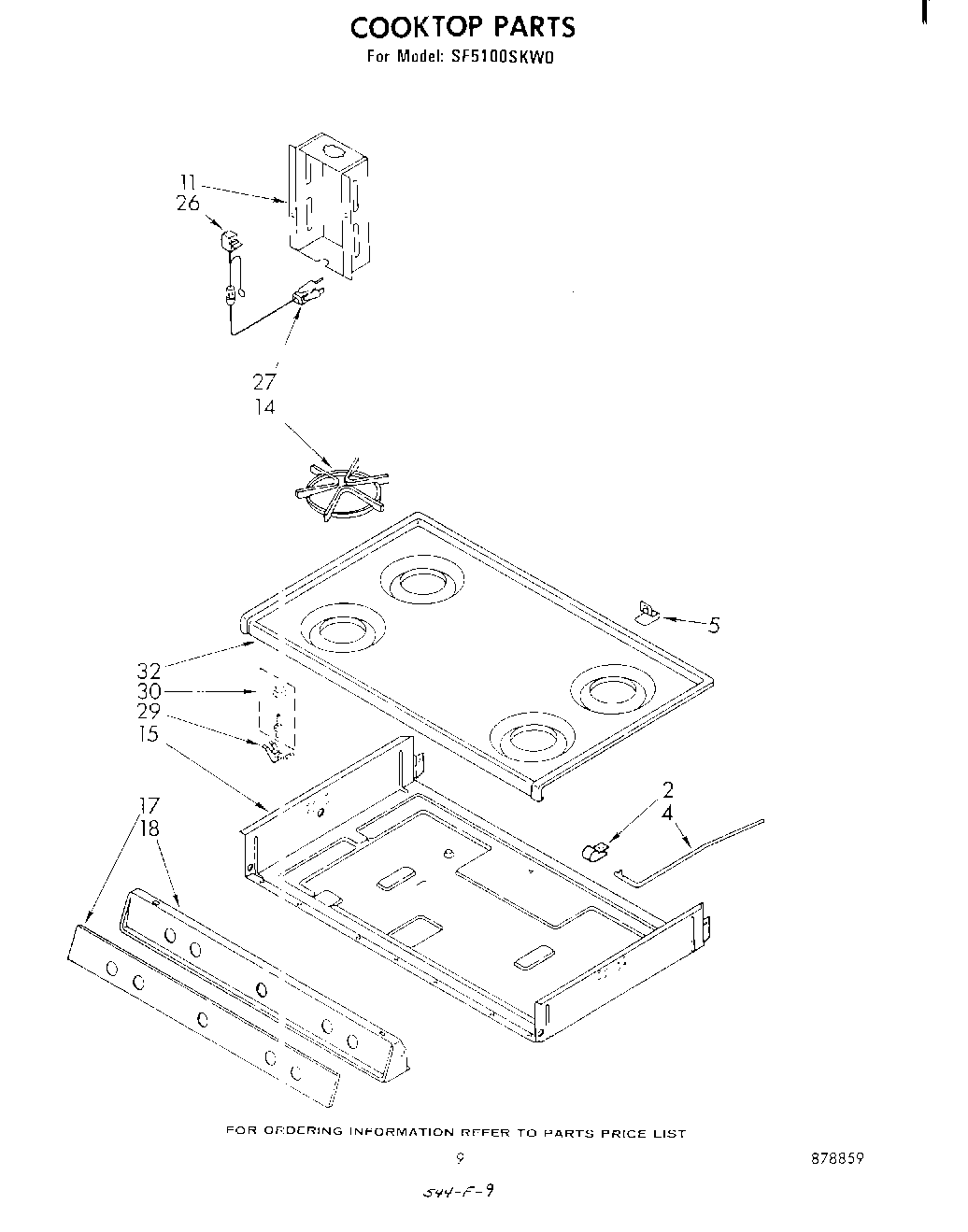

SF5100SKW0 06 – COOK TOP

Products

Position	Product
2	Clamp, Top Stop
4	Stop, Cook Top
5	Spacer, Main Top
11	Cover, Wire
14	Grate, Burner (4)
15	Bottom, Burner Box
17	Inlay, Manifold Panel
18	Panel, Manifold (Toast)
18	Panel, Manifold (Platinum)
18	Panel, Manifold (Coffee)
18	Panel, Manifold (Harvest Gold)
18	Panel, Manifold (White)
18	Panel, Manifold (Almond)
26	Block, Disconnect Socket
27	Cord, Extension
29	Catch, Main Top (2)
30	Strike, Main Top (2)
32	Top, Main (Coffee)
32	Top, Main (Platinum)
32	Top, Main (Toast)
32	Top, Main (White)
32	Top, Main (Almond)
32	Top, Main (Harvest Gold)
