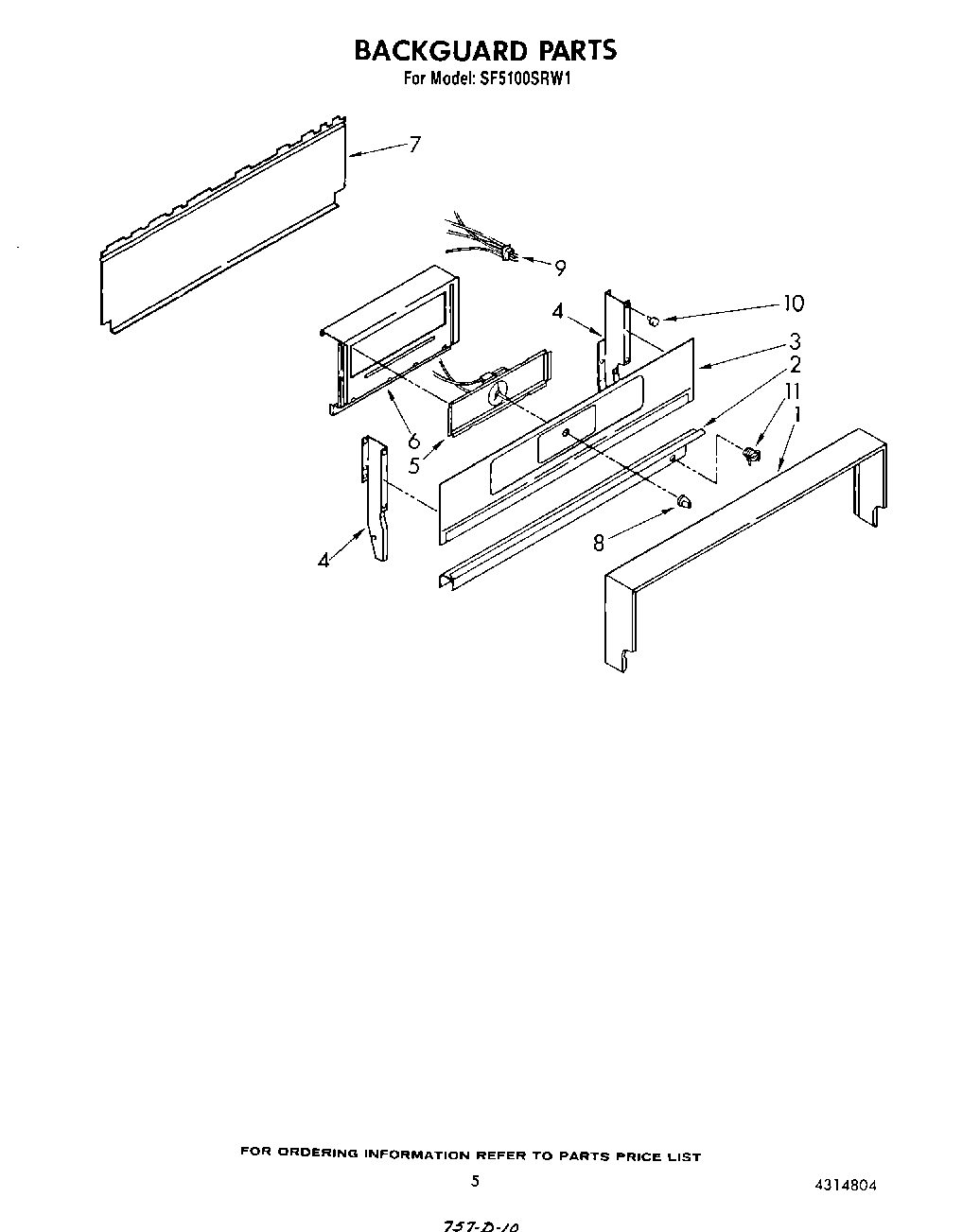

SF5100SRW1 05 – BACKGUARD

Written by

Products

Position	Product
1	Frame
2	Screw, 10-12 X 1/2 (4)
2	Bottom, Backguard
3	Glass
4	Screw, 10-32 X 1/2 (1)
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
5	Clock
6	Bracket, Clock
7	Panel, Rear
7	Screw, 10-12 X 3/8 (2)
8	Knob, Clock
9	Block, Disconnect
10	Bumper, Rubber (6)
11	Strain Relief
