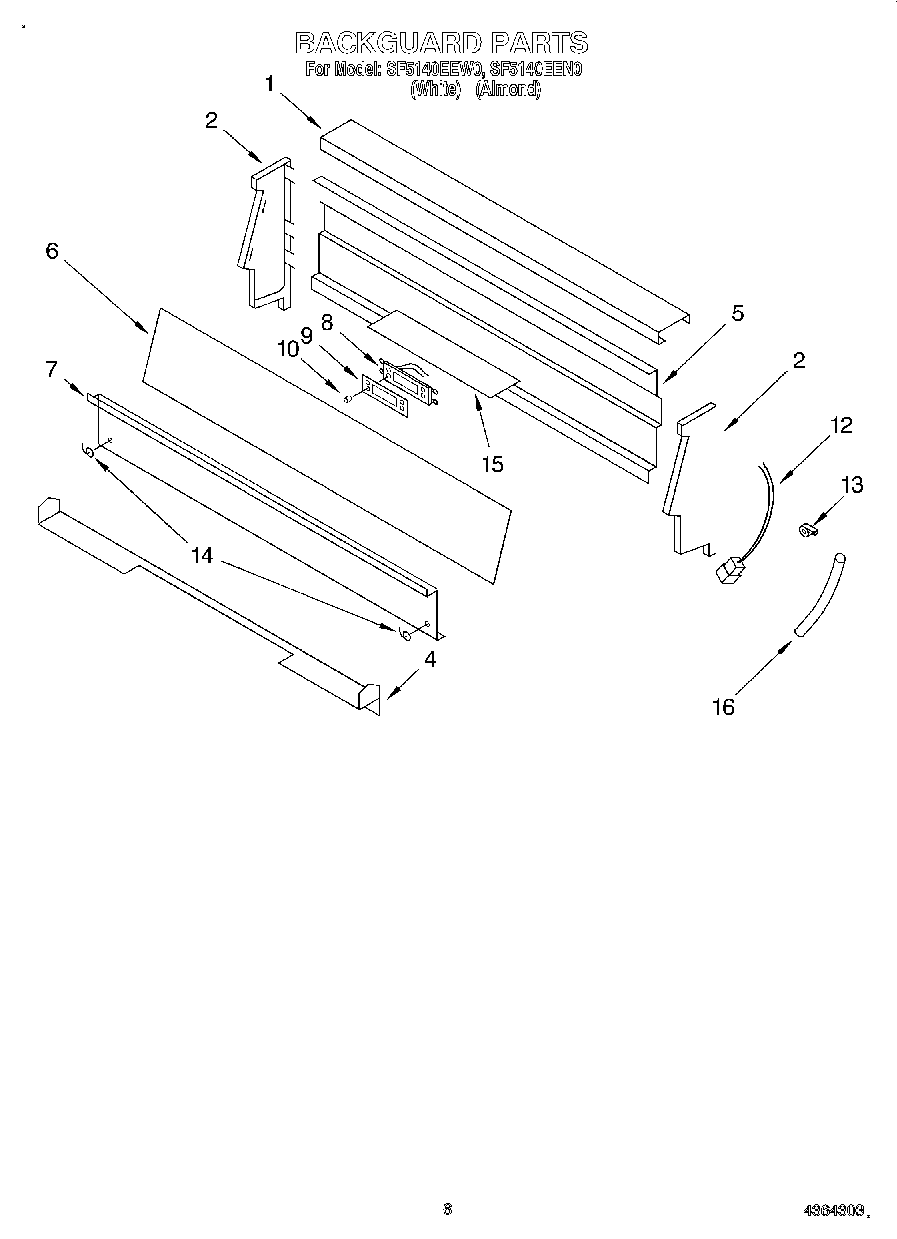

SF5140EEN0 04 – BACKGUARDadmin2025-04-26T13:11:28+00:00SF5140EEN0 04 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | Trim, Top |
| 2 | Endcap (Right Hand) |
| 2 | Endcap (Left Hand) |
| 4 | Screw, 10-12 x 1/2 |
| 4 | Support, Backguard |
| 5 | Cover, Rear Bkgd |
| 6 | Glass, Backguard |
| 7 | Panel, Backsplash (White) |
| 7 | Panel, Backsplash (Almond) |
| 8 | Clock, Timer |
| 9 | Cover, Switch |
| 10 | Button, Timer |
| 12 | Harness, Backguard |
| 13 | Relief, Strain |
| 14 | Hinge Pin (2) |
| 15 | Deflector, Heat |
| 16 | Sleeve, Harness |
