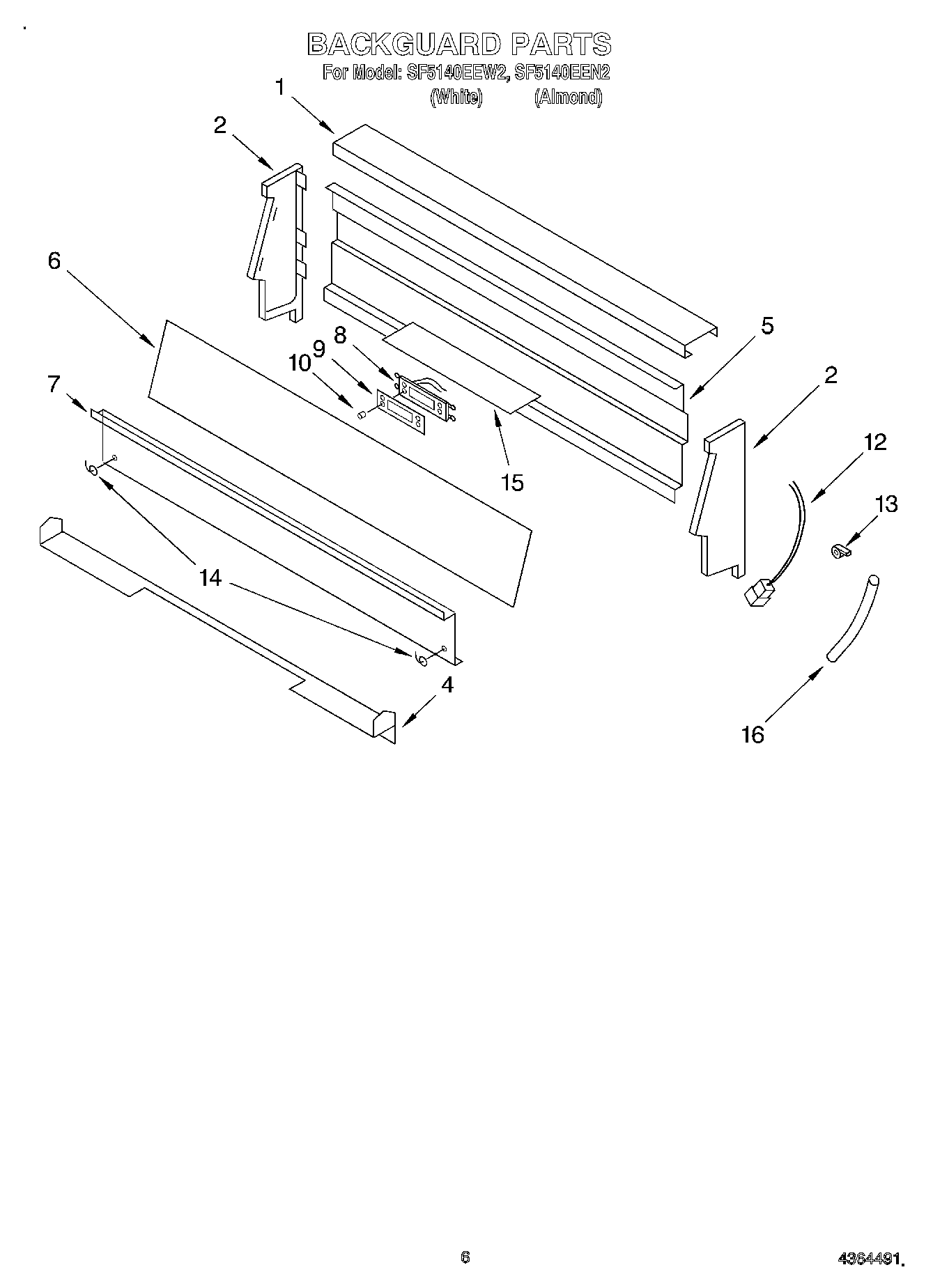

SF5140EEN2 04 – BACKGUARD

Products

Position	Product
1	Trim, Top
2	Endcap (Right Hand)
2	Endcap (Left Hand)
4	Support, Backguard
4	Screw, 10-12 x 1/2
5	Cover, Rear Bkgd
6	Glass, Backguard
7	Panel, Backsplash (White)
7	Panel, Backsplash (Almond)
8	Timer-Clock
9	Cover, Switch
10	Button, Timer
12	Harness, Backguard
13	Relief, Strain
14	Hinge Pin (2)
15	Deflector, Heat
16	Harness, Wire (Red Jumper)
16	Harness, Wire (Black Jumper)
16	Wire Bushing
16	Thermostat Wire
16	Power Cord
16	Sleeve, Harness
16	Strain Relief
