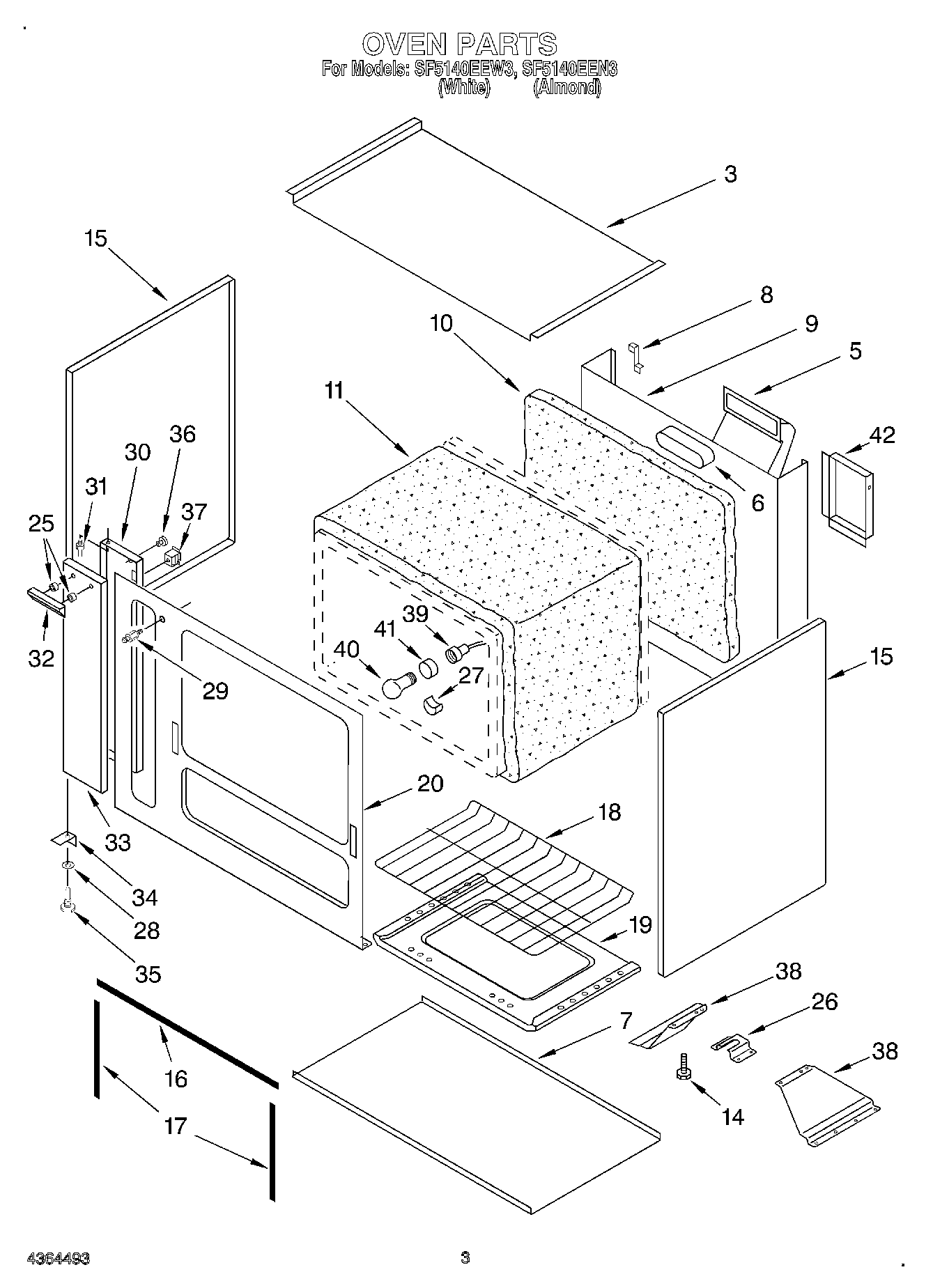

SF5140EEN3 02 – OVEN

Products

Position	Product
3	Bottom, Burner Box
5	Flue Box
6	Ring, Flue Box
7	Bottom, Main
8	Brace, Back
9	Main Back
10	Insulation, Back
11	Insulation, Wrap
14	LEG, LEVELER
15	Panel, Side (White)
15	Panel, Side (Almond)
16	Gasket, Oven Door
17	Gasket, Oven Door Side
18	Rack, Oven
19	Bottom, Oven
20	Frame, Front
25	Spacer, Handle
26	8190785 Whirlpool Oven Bracket
27	CLIP, THERMOBULB
28	Spacer, Door Hinge
29	Catch, Door Strike
30	Liner, Comp. Door
31	Pin, Upper Hinge
32	Handle, Comp. Door
33	Panel, Comp. Door (White)
33	Panel, Comp. Door (Almond)
34	Bracket, Hinge
35	Pin, Lower Hinge
36	Bumper, Drawer
37	Strike Pin W/Nut
38	Support, Side (Right)
38	Support, Side (Left)
39	RECEPTACLE, LIGHT
40	RANGE ONLY 40W 120V APPL BULB
41	Ring, Oven Light
42	Box, Power
