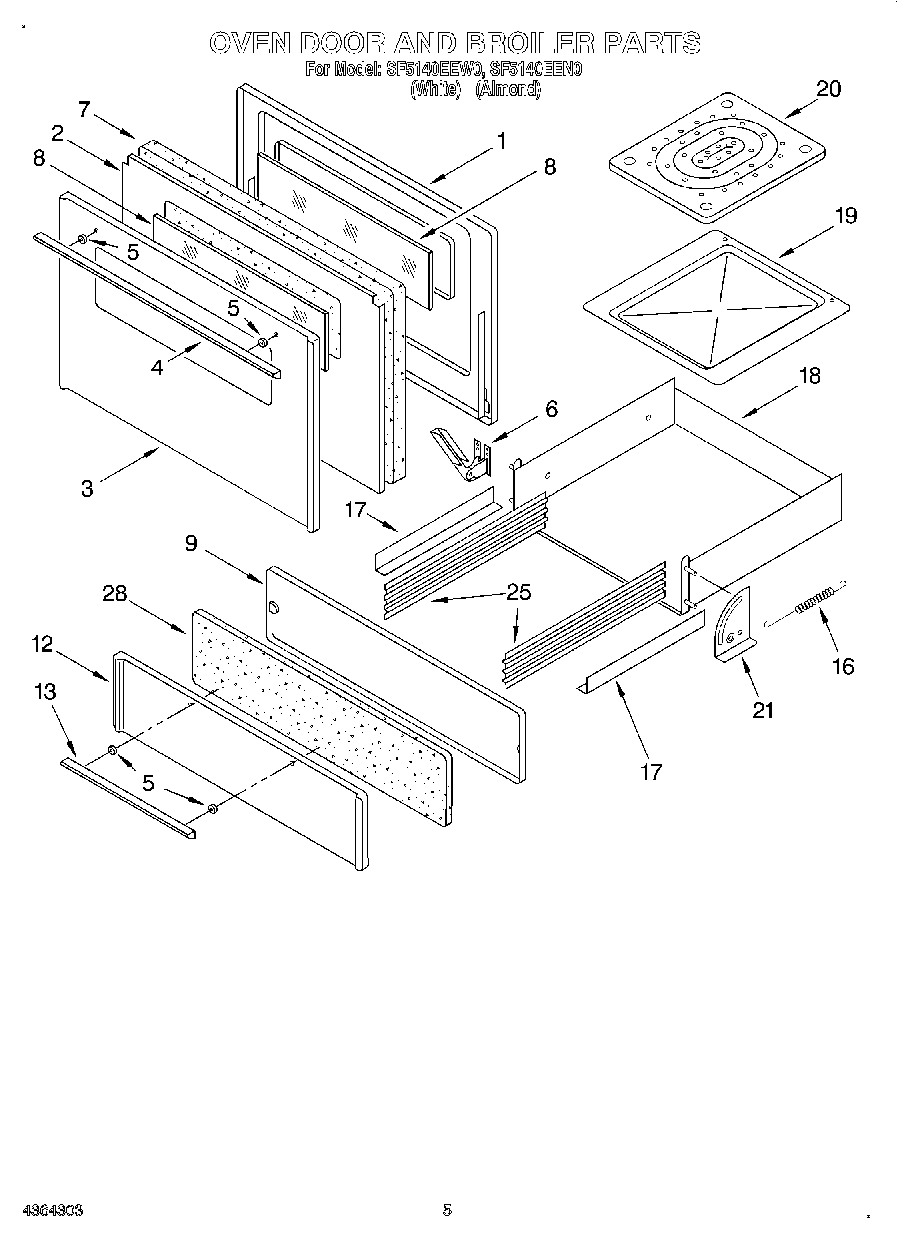

SF5140EEW0 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	Panel, Inner Door
3	Panel, Oven Door (White)
3	Panel, Oven Door (Almond)
4	Handle, Oven Door
5	Spacer, Handle
5	Screw, 10-24 x 3/8
6	Hinge, Oven Door
7	Insulation, Door
8	Glass, Window
9	Liner, Brlr Drawer
12	Panel, Broiler Door (White)
12	Panel, Broiler Door (Almond)
13	Handle, Drawer
16	Spring, Broiler
17	Broiler Drawer Runner (Right)
17	Broiler Drawer Runner (Left)
18	Liner, Broiler
19	Broiler Pan
20	Grill, Broiler
21	Hinge, Broiler (Screw, 10-24 x 3/8)
21	Hinge, Broiler (Right)
21	Hinge, Broiler (Left)
21	WP488130 Whirlpool Air Conditioner Nut
25	Glide, Broiler Pan
28	Insulation, Broiler Drawer
