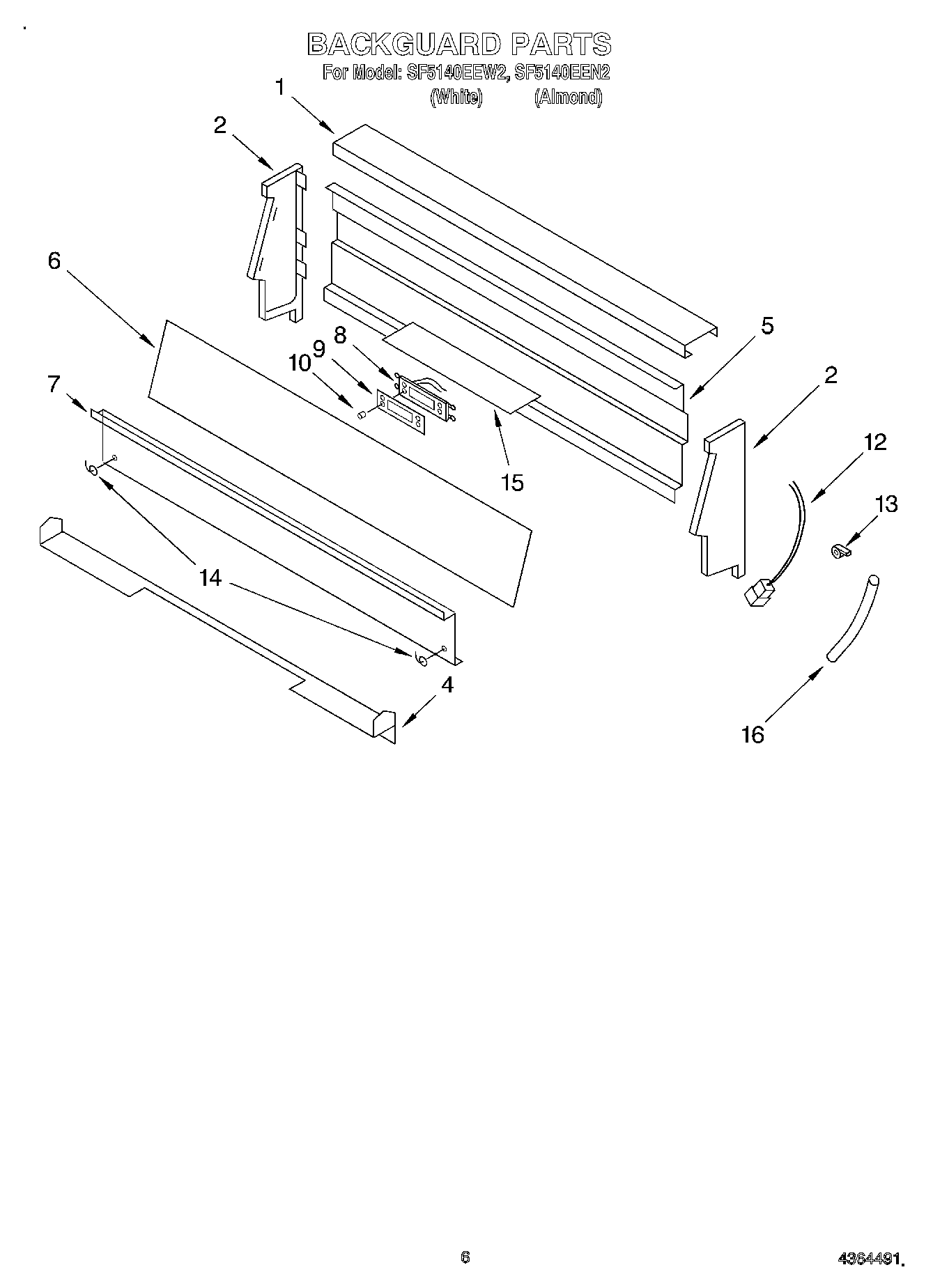

SF5140EEW2 04 – BACKGUARD

Products

PositionProduct
1Trim, Top
2Endcap (Right Hand)
2Endcap (Left Hand)
4Support, Backguard
4Screw, 10-12 x 1/2
5Cover, Rear Bkgd
6Glass, Backguard
7Panel, Backsplash (White)
7Panel, Backsplash (Almond)
8Timer-Clock
9Cover, Switch
10Button, Timer
12Harness, Backguard
13Relief, Strain
14Hinge Pin (2)
15Deflector, Heat
16Harness, Wire (Red Jumper)
16Harness, Wire (Black Jumper)
16Wire Bushing
16Thermostat Wire
16Power Cord
16Sleeve, Harness
16Strain Relief
