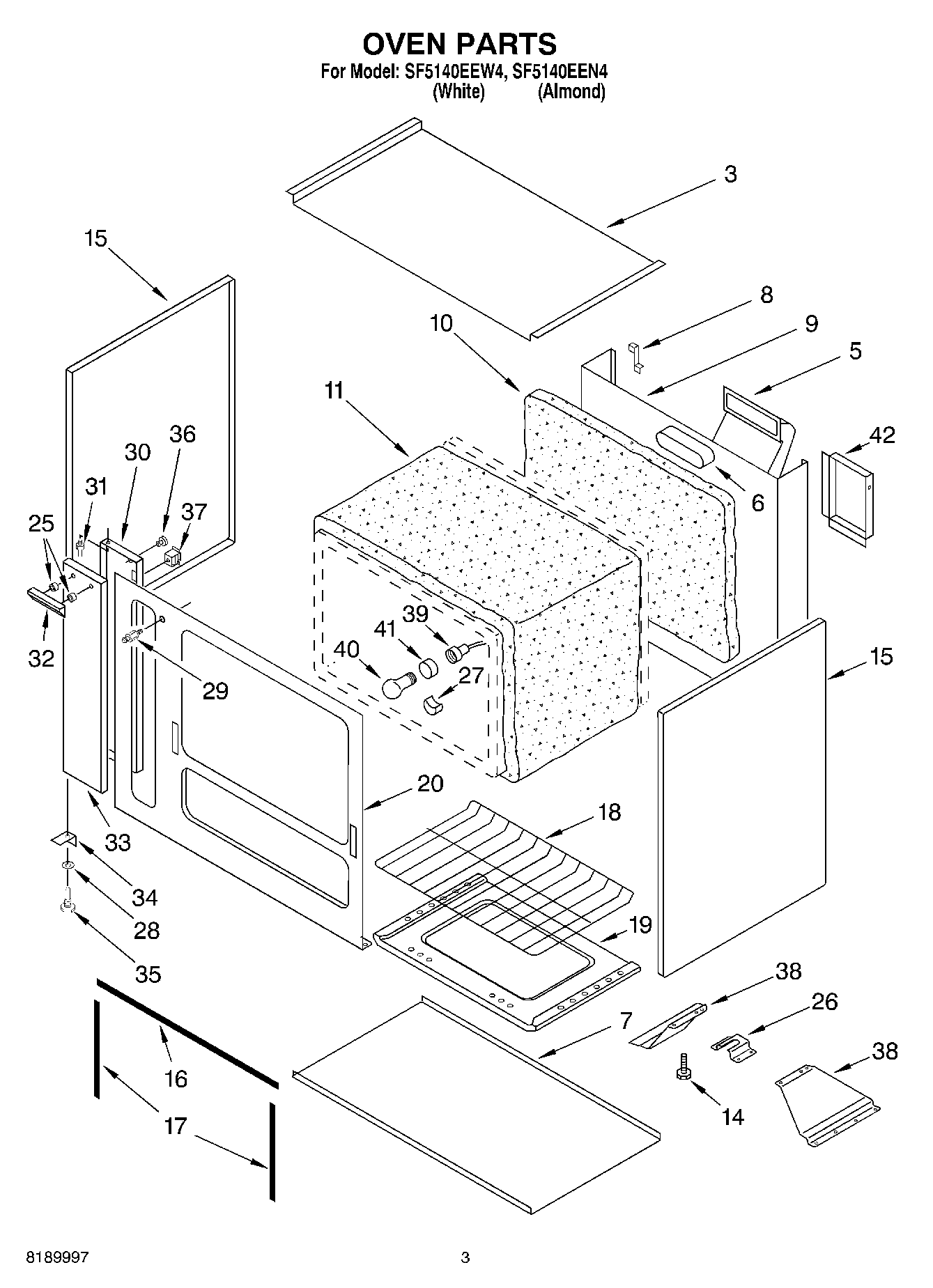

| 3 | Bottom, Burner Box |
| 5 | Flue Box |
| 6 | Ring, Flue Box |
| 7 | Bottom, Main |
| 8 | Brace, Back |
| 9 | Main Back |
| 10 | Insulation, Back |
| 11 | Insulation, Wrap |
| 14 | LEG, LEVELER |
| 15 | Panel, Side (White) |
| 15 | Panel, Side (Almond) |
| 16 | Gasket, Oven Door |
| 17 | Gasket, Oven Door Side |
| 18 | Rack, Oven |
| 19 | Bottom, Oven |
| 20 | Frame, Front |
| 25 | Spacer, Handle |
| 26 | 8190785 Whirlpool Oven Bracket |
| 27 | CLIP, THERMOBULB |
| 28 | Spacer, Door Hinge |
| 29 | Catch, Door Strike |
| 30 | Liner, Comp. Door |
| 31 | Pin, Upper Hinge |
| 32 | Handle, Comp. Door |
| 33 | Panel, Comp. Door (Almond) |
| 33 | Panel, Comp. Door (White) |
| 34 | Bracket, Hinge |
| 35 | Pin, Lower Hinge |
| 36 | Bumper, Drawer |
| 37 | Strike Pin W/Nut |
| 38 | Support, Side (Right) |
| 38 | Support, Side (Left) |
| 39 | RECEPTACLE, LIGHT |
| 40 | RANGE ONLY 40W 120V APPL BULB |
| 41 | Ring, Oven Light |
| 42 | Box, Power |
