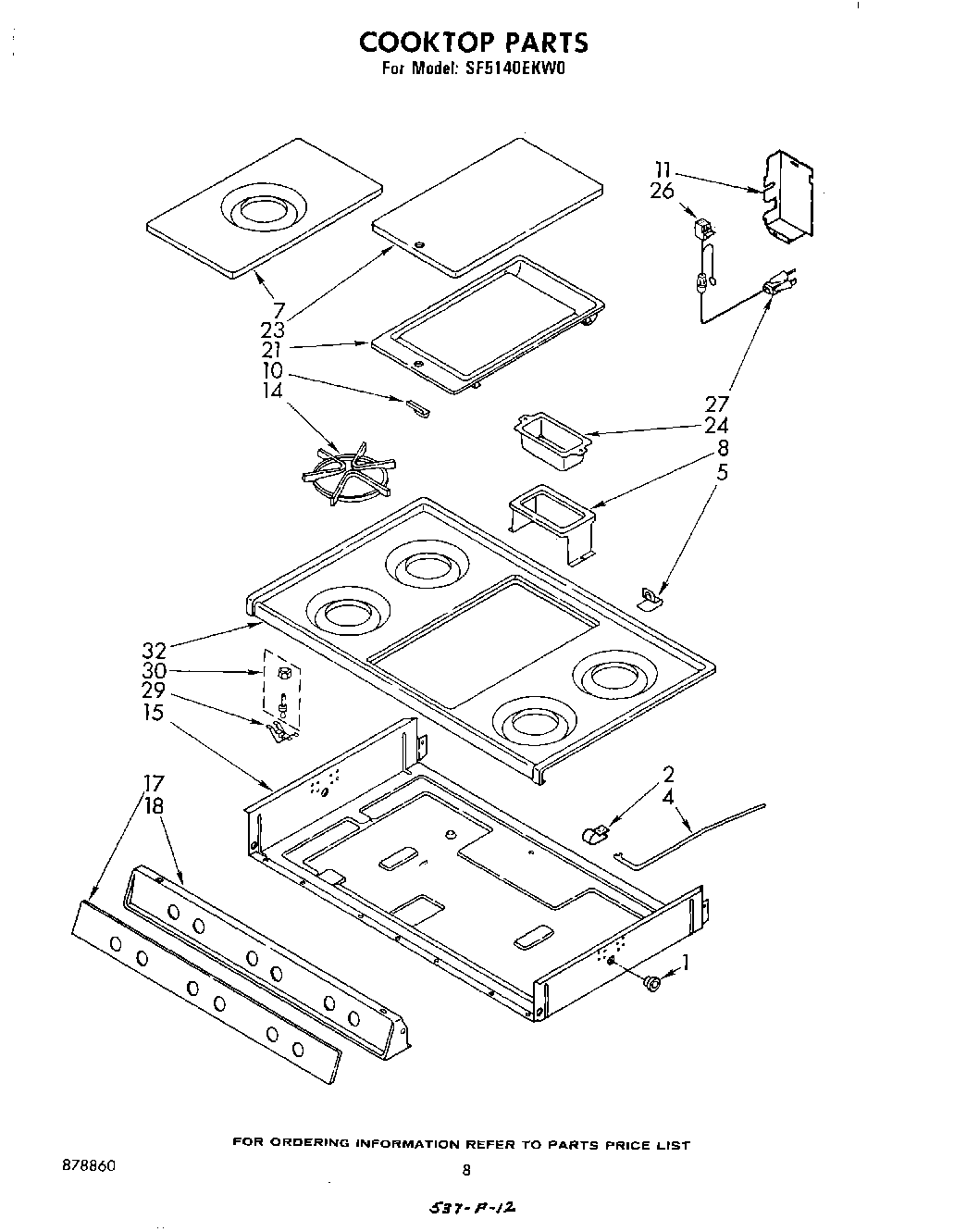

SF5140EKW0 05 – COOKTOP

SF5140EKW0 05 – COOKTOP

Written by

in

SF5140EKW0 05 – COOKTOP

Products

PositionProduct
1Bushing, Snap
2Clamp, Top Stop
4Stop, Cook Top
5Spacer, Main Top
7Center, Cooktop (White)
7Top, Center Cook (Harvest Gold)
7Top, Center Cook (Coffee)
7Top, Center Cook (Toast)
7Center, Cooktop (Almond)
7top, center cook (platinum)
8Hanger, Grease Cup
10Reflector, Grid Lighter
11Cover, Wire
14Grate, Burner (4)
15Bottom, Burner Box
17Inlay, Manifold Panel
18Panel, Manifold (Almond)
18Panel, Manifold (Harvest Gold)
18Panel, Manifold (Coffee)
18Panel, Manifold (Toast)
18panel, manifold (white)
18Panel, Manifold (Platinum)
21Griddle
23Cover, Griddle (Coffee)
23Cover, Griddle (Harvest Gold)
23cover, griddle (white)
23Cover, Griddle (Almond)
23Cover, Griddle (Platinum)
23Cover, Griddle (Toast)
24Cup, Grease
26Block, Disconnect Socket
27Cord, Extension
29Catch, Main Top (2)
30Strike, Main Top (2)
32Top, Main (Coffee)
32top, main (platinum)
32top, main (almond)
32top, main (white)
32top, main (toast)
32Top, Main (Harvest Gold)
