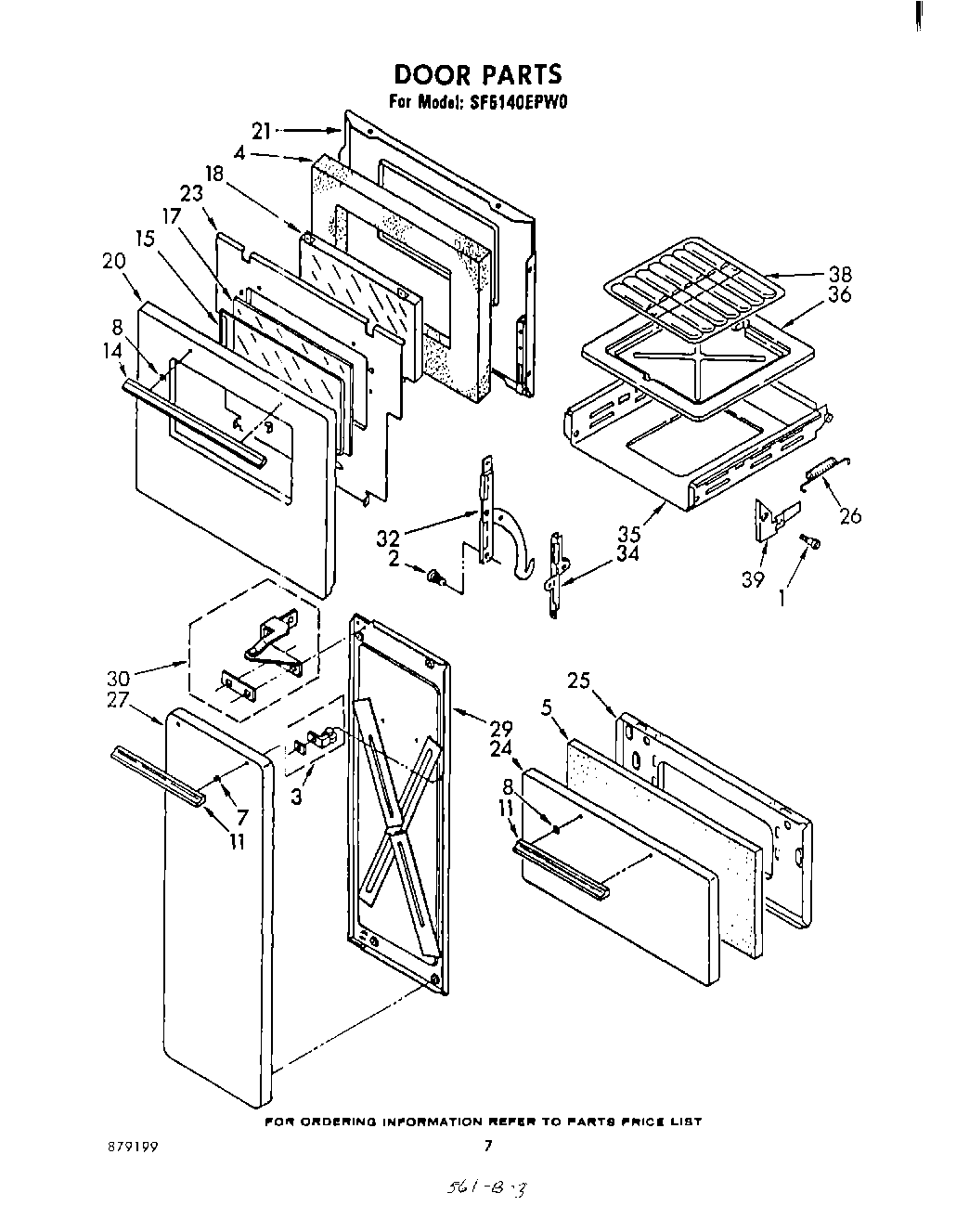

| 1 | Bolt, Shoulder 10-24 x 7/16 |
| 2 | Bolt, Shoulder 10-24 x 7/16 (2) |
| 3 | Catch, Compartment Door |
| 4 | WPW10208653 Whirlpool Insulation |
| 5 | Insulation, Broiler Door |
| 7 | Spacer, Broiler Door Handle (2) |
| 8 | Spacer, Oven Door Handle (2) |
| 11 | Handle, Door 9`` (2) |
| 14 | Handle, Broiler Door |
| 15 | Bezel, Oven Door |
| 17 | Glass, Oven Door Outside |
| 18 | Glass, Oven Door Package |
| 20 | Panel, Oven Door (White) |
| 20 | Panel, Oven Door (Toast) |
| 20 | Panel, Oven Door (Platinum) |
| 20 | panel, oven door (almond) |
| 21 | Lining, Oven Door |
| 23 | Baffle, Door |
| 24 | Panel, Broiler Door (Almond) |
| 24 | Panel, Broiler Door (Toast) |
| 24 | Panel, Broiler Door (Platinum) |
| 24 | panel, broiler door (white) |
| 25 | Lining, Broiler Door |
| 26 | Spring, Broiler Door (2) |
| 26 | Panel, Compartment Door (Toast) |
| 26 | panel, compartment door (platinum) |
| 27 | panel, compartment door (white) |
| 27 | panel, compartment door (almond) |
| 29 | Lining, Compartment Door |
| 30 | Hinge, Compartment Door (2) |
| 32 | Hinge, Oven Door (2) |
| 34 | Support, Oven Door (Left Side) |
| 34 | Support, Oven Door (Right Side) |
| 35 | Drawer, Broiler |
| 36 | Pan, Broiler |
| 38 | Tray, Broiler Pan |
| 39 | Hinge, Broiler Door (Left Side) |
| 39 | Hinge, Broiler Door (Right Side) |
