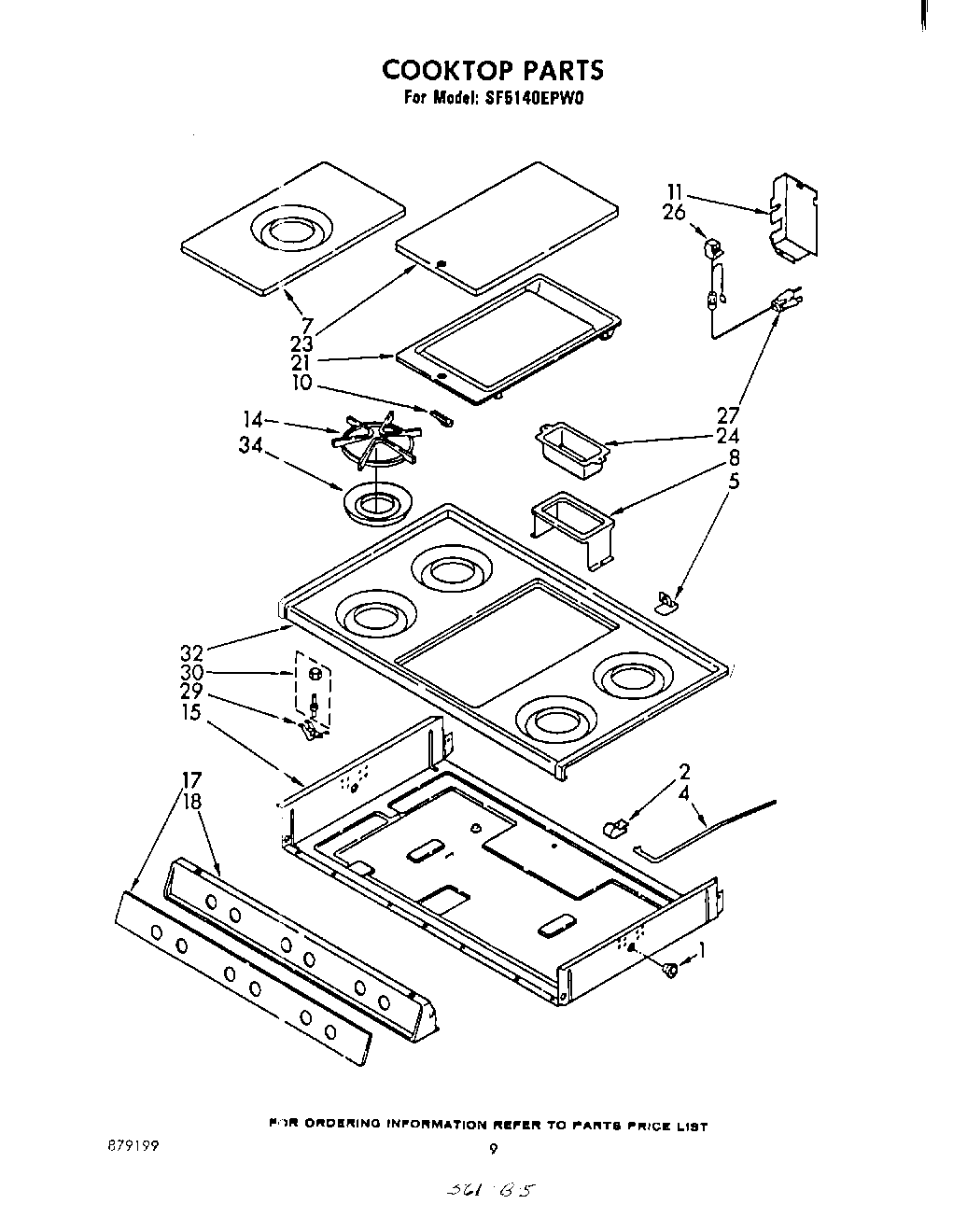

SF5140EPW0 06 – COOKTOP

SF5140EPW0 06 – COOKTOP

Written by

in

SF5140EPW0 06 – COOKTOP

Products

PositionProduct
1Bushing, Snap
2Clamp, Top Stop
4Stop, Cook Top
5Spacer, Main Top
7top, center cook (platinum)
7Center, Cooktop (White)
7Top, Center Cook (Toast)
7Center, Cooktop (Almond)
8Hanger, Grease Cup
10Reflector, Grid Lighter
11Cover, Wire
14Grate, Burner (4)
15Bottom, Burner Box
17Inlay, Manifold Panel
18panel, manifold (white)
18Panel, Manifold (Almond)
18Panel, Manifold (Toast)
18Panel, Manifold (Platinum)
21Griddle
23Cover, Griddle (Platinum)
23Cover, Griddle (Toast)
23cover, griddle (white)
23Cover, Griddle (Almond)
24Cup, Grease
26Block, Disconnect Socket
27Cord, Extension
29Catch, Main Top (2)
30Strike, Main Top (2)
32top, main (platinum)
32top, main (toast)
32top, main (white)
32top, main (almond)
34Bowl, Drip (4
